Galaxy Audio CMC200 Checkmate Calibrator For SPL Meters
Calibration levels of 94dB and 114dB at 1kHz.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

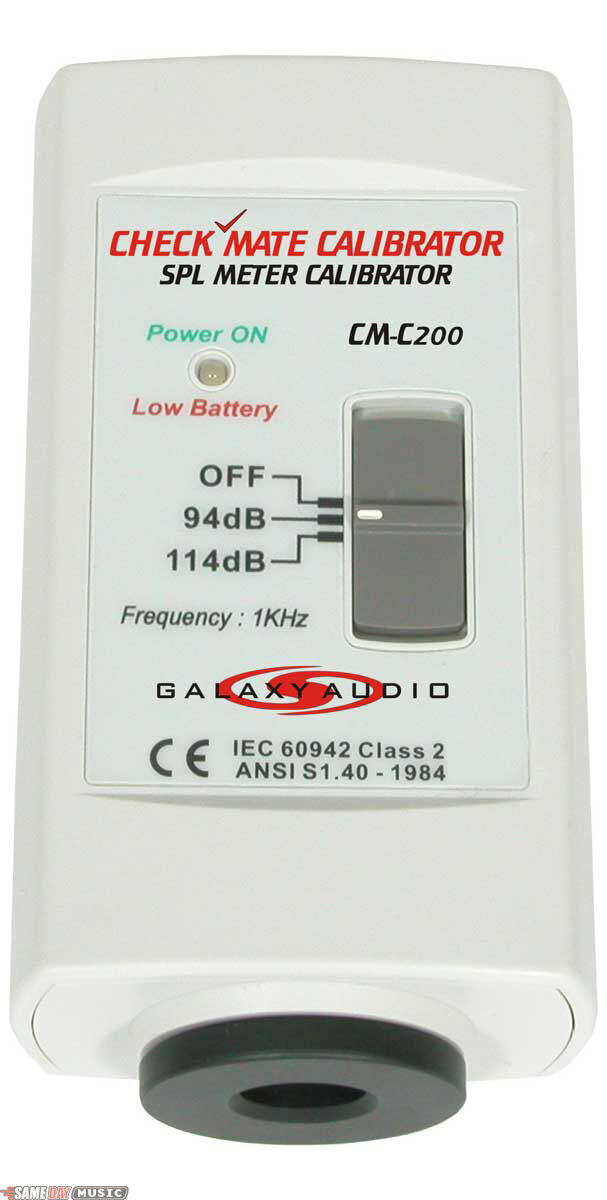

The Galaxy CMC200 Check Mate calibrator is designed to calibrate SPL Meters with a microphone diameter of 1/2 inch and 1 inch. The CMC200 will work with any of the CheckMate SPL Meters and many other brands. The CMC200 has a test tone at 1kHz at both 94dB and 114dB. The package includes a protective carry case, battery, and manual.
Features
Conforms to IEC 60942 2003 Class 2
ANSI S1.40-1984
Calibration levels of 94dB and 114dB at 1kHz
Fits 1 and 1/2 inch diameter microphones
Weight: approx .41 lbs (186.4g) (including battery)
Accurate and simple to use
Features
Conforms to IEC 60942 2003 Class 2
ANSI S1.40-1984
Calibration levels of 94dB and 114dB at 1kHz
Fits 1 and 1/2 inch diameter microphones
Weight: approx .41 lbs (186.4g) (including battery)
Accurate and simple to use
TECHNICAL DESCRIPTION
Output Sound - Pressure Levels :
114dB and 94dB re 20 uPa under
reference conditions.
Output Frequency : 1000Hz ±4%
Total Harmonic Distortion: < 3%
Accuracy of Sound-Pressure Level: Under
stated reference environment conditions ±0.5dB
Power: One 9V battery 006P or IEC 6F22 or NEDA 1604
Dimensions: (L) 4.62 x (W) 2.47 x (H) 1.72 Inches
Weight : Approx. .41lbs (186.4g) (include battery)
Accessories : Instruction manual, carrying case, 9V battery, 1/2 inch
114dB and 94dB re 20 uPa under
reference conditions.
Output Frequency : 1000Hz ±4%
Total Harmonic Distortion: < 3%
Accuracy of Sound-Pressure Level: Under
stated reference environment conditions ±0.5dB
Power: One 9V battery 006P or IEC 6F22 or NEDA 1604
Dimensions: (L) 4.62 x (W) 2.47 x (H) 1.72 Inches
Weight : Approx. .41lbs (186.4g) (include battery)
Accessories : Instruction manual, carrying case, 9V battery, 1/2 inch
