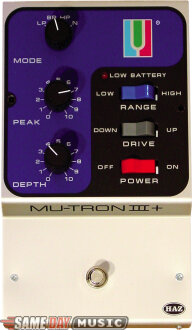

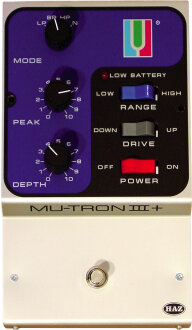

HAZ Laboratories Mu-Tron III+ Envelope Filter Pedal
Uses 2 9-volt batteries or optional power supply.
Product rated 7.7 out of 10 (22 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- DiMarzio Jumper Cable
- from $14
ADDITIONAL VIEWS:
Main
Application Shot Front
Application Shot Back
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
MU-TRON III+TM translates the envelope or "volume profile" of every musical passage, ...automatically... into an easily-controlled, vowel-like sound, as you play. Use the MU-TRON III+TM to create a variety of synthesizer sounds with most electrified instruments: guitar, bass, keyboards, drums, flute, saxophone, brasses, ...even microphone. The sharper your attack and the more percussive your instrument, the wilder your sound will be. Besides providing that inverted "snap" (perfect for funky bass), MU-TRON III+TM also functions as an automatic "wah" pedal. Full instructions are included, but you decide how far you want to go.
Features:
Power: On-off switch.
Low Battery/Sweep Limit Indicator: Monitors the batteries' condition and aids in setting the depth control.
Range Switch: Emphasizes high or low frequencies.
Drive Switch: Shifts the filter up or down for two totally different effects.
Mode Switch: High-pass, band-pass, low-pass or notch filter characteristics, for accentuating different regions of audio band, allowing four distinct tonal images.
Depth Control: A sensitivity control for optimum operation from any musical source.
Peak Control: For varying filter "sharpness" from a subtle accentuation through a distinct vowel sound to high resolution filtering that "plays" individual overtones.
Bypass Footswitch: A true, passive bypass switch for routing the audio signal around the effect.
DIP-Switches (internal): Permit you to customize your MU-TRON III+TM to highlight your instrument and playing style. Two switches tailor the high and low frequency ranges. Three switches control the way the MU-TRON III+TM follows the dynamics of your instrument. The last switch allows the Low battery L.E.D. to double as a sweep limit indicator.
Features:
Power: On-off switch.
Low Battery/Sweep Limit Indicator: Monitors the batteries' condition and aids in setting the depth control.
Range Switch: Emphasizes high or low frequencies.
Drive Switch: Shifts the filter up or down for two totally different effects.
Mode Switch: High-pass, band-pass, low-pass or notch filter characteristics, for accentuating different regions of audio band, allowing four distinct tonal images.
Depth Control: A sensitivity control for optimum operation from any musical source.
Peak Control: For varying filter "sharpness" from a subtle accentuation through a distinct vowel sound to high resolution filtering that "plays" individual overtones.
Bypass Footswitch: A true, passive bypass switch for routing the audio signal around the effect.
DIP-Switches (internal): Permit you to customize your MU-TRON III+TM to highlight your instrument and playing style. Two switches tailor the high and low frequency ranges. Three switches control the way the MU-TRON III+TM follows the dynamics of your instrument. The last switch allows the Low battery L.E.D. to double as a sweep limit indicator.
TECHNICAL DESCRIPTION
Input: 1/4 in. gold-plated phone jack.
Output: 1/4 in. gold-plated phone jack.
DC Power: Jack for H'A'Z Model PS-1 power supply
Input Impedance: Greater than 60K ohms (20 - 20 kHz)
Output Impedance : Less than 2.6K ohms (20 - 20 kHz)
Maximum Undistorted Output Signal: 10V peak-to-peak
Power Supply: 2 9-Volt batteries (not included) and/or optional power supply (H'A'Z Model PS-1, for operation from 120 VAC 60 Hz)
Weight: 3.25 lbs. without batteries
Dimensions: 9 in. long X 5 in. wide X 3.125 in. high
Components: Gold-plated stereo 1/4 in. jacks, 1% metal-film resistors, state of the art surface mount technology for highest reliability
Construction: Heavy-gage steel bottom with baked-on industrial enamel finish. Heavy-gage aluminum front panel
Quality Control: Each unit is calibrated, 100% tested, and played
MADE IN U.S.A.
Options: H'A'Z Model PS-1 Power Supply (120 VAC 60 Hz input)
Specifications subject to change without notice.
Output: 1/4 in. gold-plated phone jack.
DC Power: Jack for H'A'Z Model PS-1 power supply
Input Impedance: Greater than 60K ohms (20 - 20 kHz)
Output Impedance : Less than 2.6K ohms (20 - 20 kHz)
Maximum Undistorted Output Signal: 10V peak-to-peak
Power Supply: 2 9-Volt batteries (not included) and/or optional power supply (H'A'Z Model PS-1, for operation from 120 VAC 60 Hz)
Weight: 3.25 lbs. without batteries
Dimensions: 9 in. long X 5 in. wide X 3.125 in. high
Components: Gold-plated stereo 1/4 in. jacks, 1% metal-film resistors, state of the art surface mount technology for highest reliability
Construction: Heavy-gage steel bottom with baked-on industrial enamel finish. Heavy-gage aluminum front panel
Quality Control: Each unit is calibrated, 100% tested, and played
MADE IN U.S.A.
Options: H'A'Z Model PS-1 Power Supply (120 VAC 60 Hz input)
Specifications subject to change without notice.
