    Hercules DJ Control AIR DJ Control Surface

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

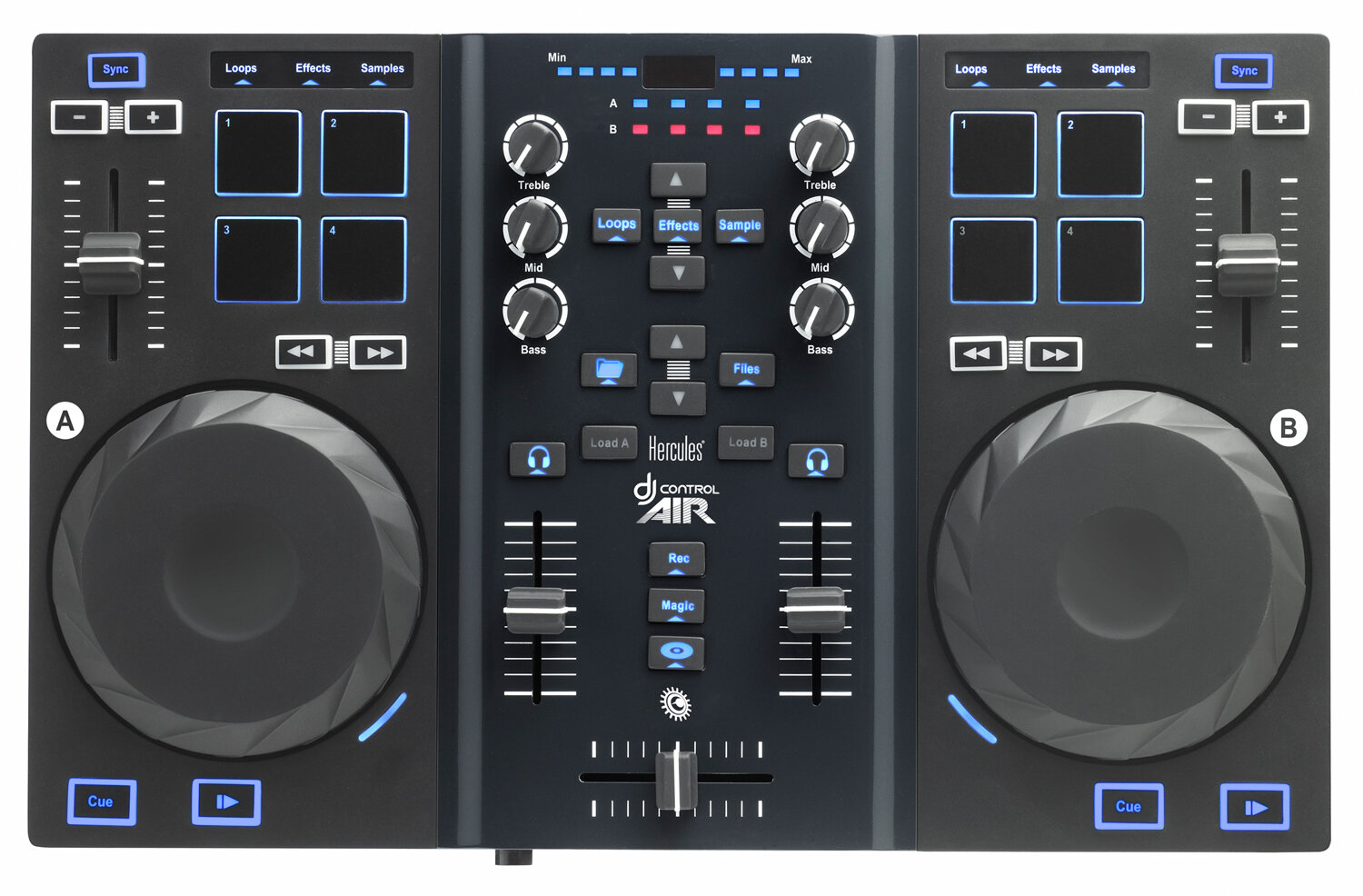

    Hercules DJ Control AIR DJ Control Surface Product Description

    The Hercules DJ Control AIR is a two deck DJ controller with 2 pressure sensitive jog wheels, 8 velocity sensitive pads, and the exclusive AIR contact-less control module for complete control over mix, sync, and effects. Touch sensitive jog wheels provide intuitive switching between scratch, pitch bend, and browsing within tracks. The 8 velocity sensitive pads control the sampler, loops, and effects. Pads can be set as on/off or gradual controls and the inner backlight shows pad activation. Hercules AIR control is a contact-less sensor that lets you control features with a wave of your hand and works under all lighting conditions. he DJ Control Air features on on-board sound card with a 1/8 inch (3.5mm) stereo mini jack for the main output and a 1/4 inch stereo headphone jack for cue/preview.

    Air control

    Why is the controller called DJ Control Air?

    Air stands for Adjustment by InfraRed: it is a contactless control.
    - The DJ places his or her hand flat over the infrared beam.
    - The controller calculates the distance between the sensor and the hand, and converts it into a gradual MIDI command.
    - This MIDI command modulates a setting in the DJ software.

    Does Air control require specific light conditions?

    No, Air control functions under any light conditions.
    - The infrared light beam projected towards the hand is invisible.
    - The sensor captures the infrared reflection on the hand, and uses the reflection to calculate the hand's distance.
    - The reflection is the same in both daylight and low light conditions, allowing Air control to be used during the day, at night or in places with weak lighting.
    - Air control functions with all flesh tones. The only incompatibility is the use of black gloves (as the infrared sensor would not be able to detect the reflection)

    8 Pads

    2 sets of 4 pads control loops, sampler and effects commands.
    - The DJ taps on the pads with his or her fingertips to send commands such as looping, sampler or effects.
    - The pads light up when touched.
    - In addition to a binary On/Off command, each pad can transfer velocity information to modulate the command.
    - For example: in sampler mode, the velocity can control the volume of a sample's playback. The playback volume depends on how soft or how hard the DJ taps on the pad

    Pressure-Detecting Jog Wheels

    The jog wheels detect the pressure from the user's hand. With scratch mode enabled, the jog wheels scratch when the hand's weight is detected, and stop scratching when the hand's weight is no longer detected. This allows the DJ to:
    - Stop playback by pressing on the jog wheel.
    - Restart playback by lifting up his or her hand.
    - Scratch by turning the jog wheel while pressing down, and stop scratching by lifting up his or her hand.
    - Bend the pitch (if playback is on) / browse within tracks (if playback is off) by turning the jog wheels using their outer ring, to avoid applying downward pressure.
    - With scratch mode disabled, the jog wheels bend the pitch or browse within tracks when the jog wheels are turned, regardless of the pressure applied.


    Same Day Music is an authorized dealer of Hercules products.

    Hercules DJ Control AIR DJ Control Surface Technical Description

    System Requirements

    - Operating System (32-bit / 64-bit) Microsoft Windows XP, Vista or 7
    - Mac OS 10.5, 10.6 or 10.7 on Core Duo Mac
    - Computer with 1.5 GHz CPU or faster
    - 1 GB RAM or more
    - Powered USB port
    - 100 MB available hard disk space
    - CD/DVD-ROM drive
    - Internet access
    - Amplified stereo speakers and headphones

    Same Day Music is an authorized dealer of Hercules products.
