Product Description

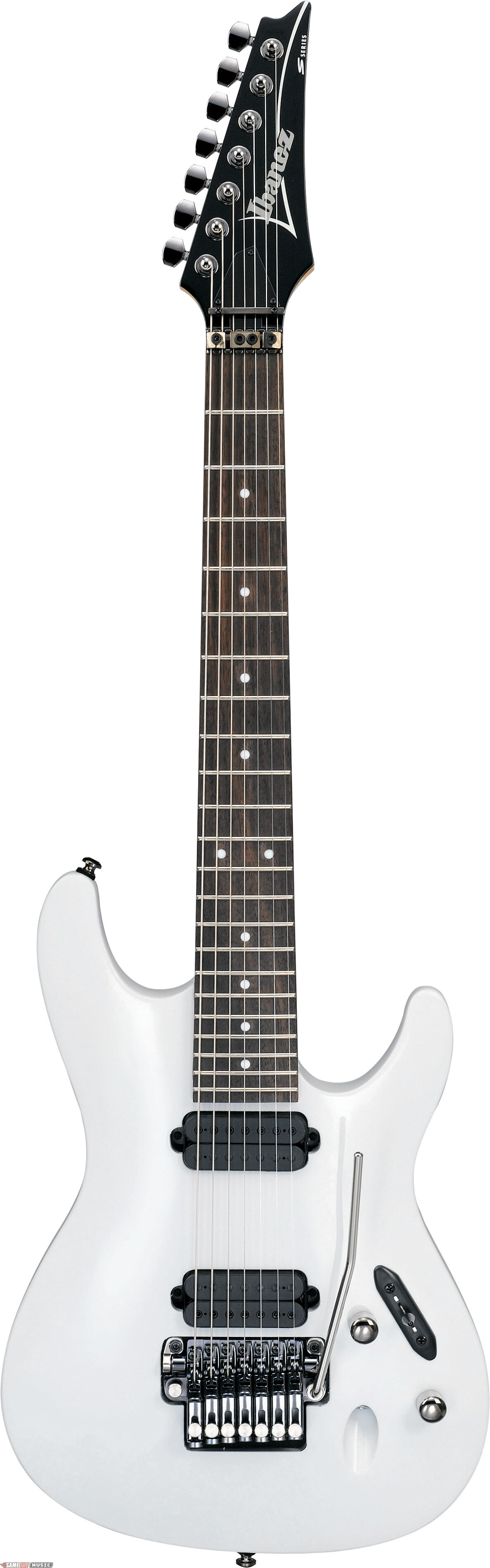

The S series' sleek, comfortable mahogany bodies, double-locking ZR tremolos and high-gain IBZ INF pickup combos make these guitars stand out among other guitars that have less features and don't look half as good. New White finish seven-string S7320WH features a 3-piece Maple Wizard II-7 neck, ZR 7 bridge and AH17 neck and bridge pickups.

Features:
Heavy Mahogany tone without the heavy Mahogany weight

Thin around the edges for comfort

ZR bridge w/ZPS spring system.

ZR Tremolo
Zero Resistance technology, yet another Ibanez tremolo improvement, replaces standard knife-edge pivots with a ball-bearing based pivot joint, which provides greater tuning stability.

This unique system stabilizes the bridge and insures tuning stability by consistently returning the tremolo to the center point (or zero point). In addition to the usual tremolo springs, the Zero Point System features two additional springs which insures the bridge's return to the center point.

The Zero Point system adjustment can be quickly set by hand-there's no need for a hex wrench.

The ZR tremolo uses a ball-bearing based system for precision and friction-free smooth action.

Zero Resistance technology, yet another Ibanez tremolo improvement, replaces standard knife-edge pivots with a ball-bearing-based pivot joint, which provides greater stability. Finally, a locking tremolo that stays in tune when a string breaks!

Just unscrew the built-in intonation adjustment tool from the base and screw it into the bottom of each saddle for quick adjustments.

The locking bolt is offset from the center of the saddle, which allows easy access to the bolt without loosening the strings.

Technical Description

Neck: 3-piece Wizard II-7 neck

Neck Type: Wizard II-7

Body: Mahogany body

Frets: Jumbo frets

Fingerboard: Rosewood

Inlay: Pearl Dot

Bridge: ZR 7 bridge

Neck Pickup: IBZ AH1-7

Bridge Pickup: IBZ AH2-7

Hardware Color: CK

Neck
Scale/Length: 648mm/25.5 in.
a: Width at Nut 43mm
b: Width Last Fret 56mm
c: Thickness 1st Fret 19mm
d: Thickness 12th Fret 21mm
Radius: 400mm

Pickups
Bridge Pickup
Name: AXIS SEVEN 2
Model No: AH27
Construction: Humbucking
Magnet: Ceramic
Description: Seven-string version of AH2 pickup.

Neck Pickup
Name: AXIS SEVEN 1
Model No: AH17
Construction: Humbucking
Magnet: Ceramic
Description: Seven-string version of AH1 pickup.
