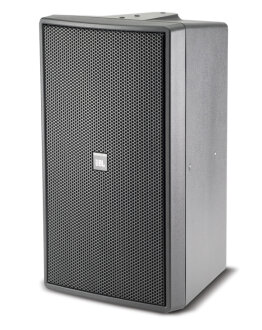

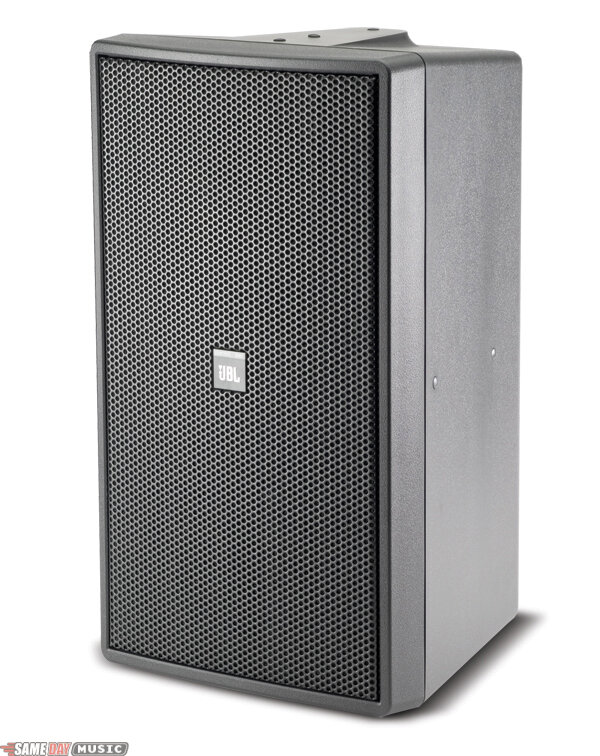

The Control 29AV1 provides improved voicing for extremely flat, high fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker.
Features
Extended bandwidth, extremely smooth frequency response.
110 x 85 degree HF coverage, rotatable horn.
110 W transformer for 70 V or 100 V lines, with 8 W thru.
SonicGuard overload protection.
200 mm (8 in) Kevlar cone woofer, 25 mm (1 in) titanium diaphragm compression driver.
Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
Sealed input panel cover and screwdown input terminals.
Control Series
Spanning a complete range of surface-mount (on-wall), in-ceiling and in-wall models, the variety of solutions offered by the Control Contractor Series give you complete mastery of any architectural, aesthetic or system performance requirement. JBL engineers have made the art of science of loudspeaker specification and installation easy to manage. Simply select the JBL Control Contractor loudspeaker appropriate for the architectural, form factor and sonic requirements. The resulting sound system will always deliver on its promise of Performance, Reliability and Value.
Frequency Range: 40 Hz -18 kHz (-10 dB)
Power Capacity: 300 W Continuous Program Power 150 W Continuous Pink Noise
Transformer Taps: 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W Thru Position: 8W nominal
Frequency Response: 45 Hz - 18 kHz ( +/- 3 dB)
Maximum SPL @ 1m: Short-Term: 120 dB; Long-Term: 114 dB
Nominal Sensitivity: 90 dB (2.83V / 1m)
Nominal Coverage Angle: 110* H x 85* V, rotatable
Directivity Factor (Q): 7.2 dB, averaged 500 Hz to 16 kHz
Directivity Index (DI): 8.6 dB, averaged 500 Hz to 16 kHz
Nominal Impedance: 8 ohms
Minimum Impedance: 6.3 ohms @ 230 Hz
Crossover Network: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
Low Frequency: 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
High Frequency: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
Enclosure Material: High impact polystyrene
Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
Overload Protection: Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.
Environmental: IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
Terminations: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
Safety Agency Rating: Transformer is listed per UL1876
Colors: Black or white (-WH)
Dimensions (H x W x D): 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)
Net Weight (ea): 12.2 kg (26.8 lb.)
Shipping Weight (ea): 14.0 kg (30.8 lb.)
Included Accessories: 1 piece MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.
Optional Accessories: MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
