Product Description

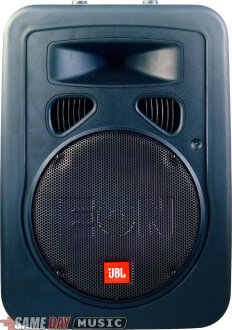

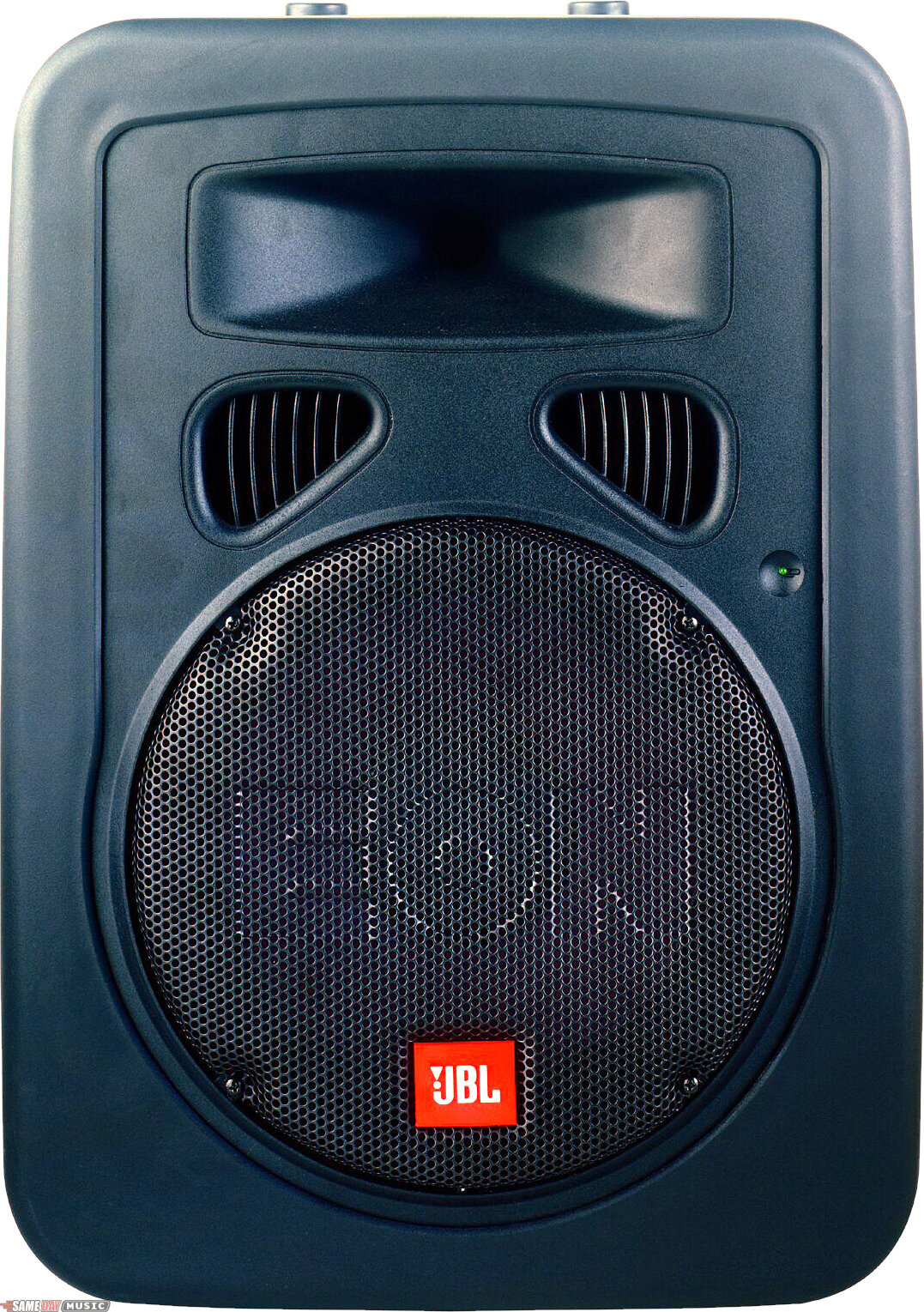

JBL EON10 G2
At a winter NAMM show in California, JBL Professional displayed the entire EON G2 second generation of powered speakers. Among the new products being displayed and demonstrated is the EON10 G2 compact powered speaker with 10 in. woofer, increased power, and a 3-input mini-mixer.

The EON10 G2 is ideal for AV applications, smaller musical and spoken word performances, and, when combined with the new EONSUB G2 powered subwoofer, provides a full range sound system for small and medium sized events.

The first generation EON10 was very popular, not only with musicians, but with hotels, meeting planners, AV companies, and just about any application where portable compact sound reinforcement was needed. Its successor, EON10 G2 offers more power, more flexibility, and refined appearance that will make it even more appropriate for its many types of users.

The EON10 G2 has features increased power over the first generation EON 10, with 125 watts for low frequencies and 50 watts for the highs. The 10 in. Differential Drive low frequency driver uses a neodymium magnet for light weight and reduced distortion. The 1 in. JBL 2412 compression driver for the high frequencies features a titanium diaphragm and ferro-fluid cooling.

The EON10 G2 shares the same appearance improvements with its larger companion EON15 G2, including new black exterior material and a mini-mixer with 3 inputs. An additional XLR output allows EON Speakers to be daisy-chained together. As with other EON G2 speakers, the EON10 G2 is kept cool, not by heatsinks or fans, but by JBL's Thermomaster Total Thermal Management System.

With its versatile cabinet design, the EON10 G2 can be used in several different ways. As a front of house speaker, the EON10 G2 can sit on a flat horizontal surface or be raised in the air using standard tripod speaker stands. The cabinet has also been designed to let the EON10 G2 be snugly placed atop the EONSUB G2 for added volume and extended bandwidth. In addition, the angled back of the speaker allows its use as a vocal or instrument monitor onstage.

Technical Description

Frequency Range: (-10 dB): 65 Hz - 18 kHz

Frequency Response: (3 dB): 90 Hz - 16 kHz

Horizontal Coverage: (-6 dB): 90? Nominal

Vertical Coverage: (-6 dB): 60 Nominal

Rated Maximum SPL: 117 dB, @ 1 m (3.3 ft.)

Dimensions: (H x W x D): 493 x 356 x 307mm (19.4 x 14.0 x 12.1 in.)

Net Weight: 10.4 kg (23 lbs.)

LF Driver: Integral frame with one 10-1/2 (254 mm) driver, neodymium magnet, 1.5 Differential Drive voice coil.

HF Driver: JBL 2412 1-1/2 in. compression driver, titanium diaphragm, Ferro-fluid cooled.

Amplifier Power LF: 125 watts @ low-frequency driver impedance.

Amplifier Power HF: 50 watts @ high-frequency driver impedance.

Input 1 Sensitivity:
-48 dBu to 0 dBu for rated output (Mic/Line switch in MIC position)
-6 dBu to +20 dBu for rated output (Mic/Line switch in LINE position)

Input 2 and 3 Sensitivity: -12 dBu to +20 dBu for rated output

Output Level: +26 dBu (max), Loop/Mix switch in MIX position

Catalog Description

Versatile, lightweight powered speaker@2-way, biamped design with 125W 10" woofer and 50W 1.5" tweeter@XLR mic and TRS line inputs@XLR loop/mix output
