JBL EON 15P 2-Way 15 In Powered Speaker
High-output, neodymium 15 in. driver with a 1.75 in. voice coil.
Product rated 7.6 out of 10 (60 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Whirlwind MC20 Mic Cable
- from $10
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

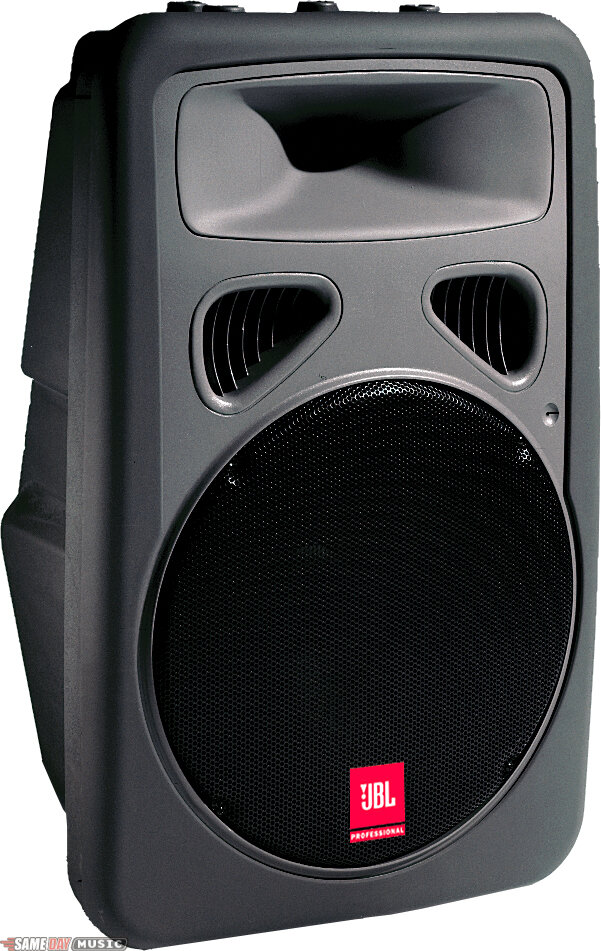

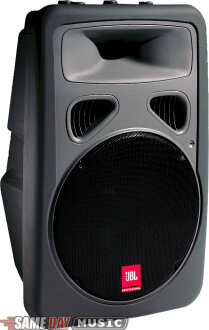

JBL EON 15P
This 2-way 15 in. PA cabinet is internally biamp powered. The biamp design provides dedicated power amps for the low frequency 15 in. driver and the 15 in. compression driver. The lows are driven by 125 watts and the highs by 50 watts. By separating the power amps the cabinet is more efficient and sound quality is more precise. This cabinet features a high-output, neodymium 15 in. driver with a 1.75 in. voice coil. This contributes to its light weight and the portability that everyone loves about the EON line.
This 2-way 15 in. PA cabinet is internally biamp powered. The biamp design provides dedicated power amps for the low frequency 15 in. driver and the 15 in. compression driver. The lows are driven by 125 watts and the highs by 50 watts. By separating the power amps the cabinet is more efficient and sound quality is more precise. This cabinet features a high-output, neodymium 15 in. driver with a 1.75 in. voice coil. This contributes to its light weight and the portability that everyone loves about the EON line.
TECHNICAL DESCRIPTION
Frequency Range (-10 dB): 47 Hz to 18 kHz
Frequency Response (-3 dB): 65 Hz to 16 kHz
Enclosure Alignment: 6th Order
Long-Term Continuous SPL 1: 121 dB
Long-Term Peak SPL 2: 127 dB
Controls & Indicators:
Switches & Controls: Level Control, Mic/Line Switch
Indicators: Power LED (front panel), Signal Present LED, Peak Level LED, Mic/Line Status LED
Power Switch: On Rear Panel
Input:
Audio Input / Connectors: One Male XLR-type, Balanced Differential for Line and Mic, One Female XLR-type for Loop-Through to Additional EON, Powered Speaker or Subwoofer.
Input Impedance:
Line: 20k ohms
Mic: 2k ohms
Sensitivity:
Line: +4 dBu
Mic: -60 dBu
Maximum Input Level:
Line: +28 dBu
Mic: 0 dBu
Protection:
Input Protection: RFI and Level protected
Over Excursion Protection: 2nd order high-pass filter
Low Line Voltage Shut Down: At 50% of nominal line voltage
Thermal Protection: Amp shut down and auto reset
Muting: Five seconds at turn-on
LF Transducer:
Diameter: 380 mm (15 in)
Power Handling 3: 250 Watts
HF Driver & Horn:
Diaphragm Diameter: 44 mm (1 L in)
Power Handling: 50 Watts
Dispersion Angle (H x V): 90? x 60?
Frequency Response (-3 dB): 65 Hz to 16 kHz
Enclosure Alignment: 6th Order
Long-Term Continuous SPL 1: 121 dB
Long-Term Peak SPL 2: 127 dB
Controls & Indicators:
Switches & Controls: Level Control, Mic/Line Switch
Indicators: Power LED (front panel), Signal Present LED, Peak Level LED, Mic/Line Status LED
Power Switch: On Rear Panel
Input:
Audio Input / Connectors: One Male XLR-type, Balanced Differential for Line and Mic, One Female XLR-type for Loop-Through to Additional EON, Powered Speaker or Subwoofer.
Input Impedance:
Line: 20k ohms
Mic: 2k ohms
Sensitivity:
Line: +4 dBu
Mic: -60 dBu
Maximum Input Level:
Line: +28 dBu
Mic: 0 dBu
Protection:
Input Protection: RFI and Level protected
Over Excursion Protection: 2nd order high-pass filter
Low Line Voltage Shut Down: At 50% of nominal line voltage
Thermal Protection: Amp shut down and auto reset
Muting: Five seconds at turn-on
LF Transducer:
Diameter: 380 mm (15 in)
Power Handling 3: 250 Watts
HF Driver & Horn:
Diaphragm Diameter: 44 mm (1 L in)
Power Handling: 50 Watts
Dispersion Angle (H x V): 90? x 60?
CATALOG DESCRIPTION
Compact, lightweight, and loud powered PA speaker@Mic and line inputs for use with or without a mixer@Biamplified with 125 watts for the 15" woofer and 50 watts for the 1.5" tweeter@All this power weighs only 47 pounds
REVIEWS
Product rated 7.6 out of 10 (60 ratings)
Read 1 Full Review >>
- "Very Good!!!!!!!!!!" - Read More
