JBL EON 210P Powered 300 Watt PA System

The JBL EON210P portable PA system's thoughtful modern design makes it a breeze to enjoy true stereo audio in just minutes. The 8 input channels, tone controls and digital effects give you the flexibility to cover any situation while its plug-and-play layout makes the entire experience inviting and fun.

Features

- 300 watt High-Performance Powered Speaker System
- Ergonomic soft touch top grip for easy handling
- 10 inch low-frequency driver with neodymium magnet for low-distortion and light weight
- 1 inch throat diameter next generation JBL neodymium compression driver
- Efficient Crown Class-D amplifier technology
- 100* H x 60* V asymmetrical wave guide for uniform audience coverage
- 8 chanel powered mixer with intuitive interface
- On board digital multi-effects
- Integrated 36 mm pole mount socket with stabilizing securing screw
- Highly designed composite enclosures for durability, lightweight, and acoustic performance

Everywhere You Need

Whether you're making a presentation,teaching aerobics or a math class, performing stand-up comedy or making music with friends, it's not enough to be heard - you need to be understood. That means your personal PA has to be clear, natural and loud. The EON210P from JBL has all of the features you'll need to reach your audience and make that meaningful impression.

Applications

Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues - especially when ease of use and portability are important factors.

Amplification, mixing, and monitoring for electronic musical instruments.

Self-Powered PA System with Powered Mixer

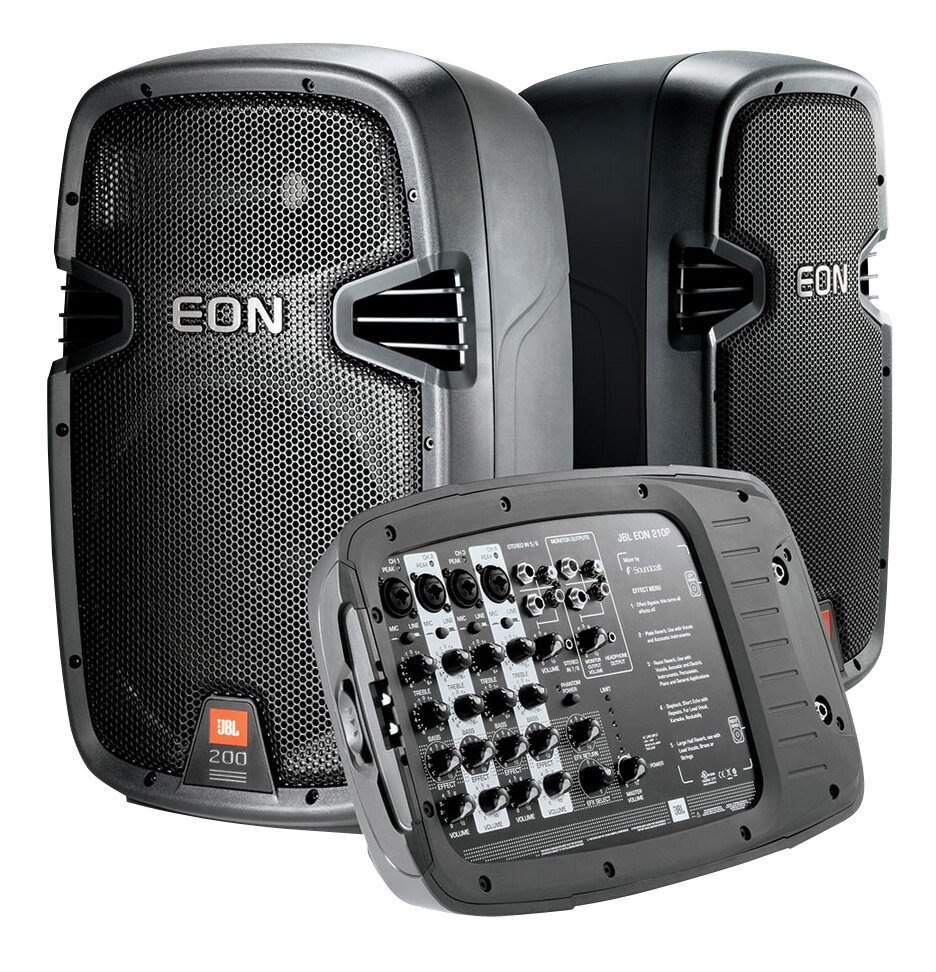

The EON210P consists of two 10-inch, two-way, powered loudspeakers, one with a detachable powered mixer and the other with a detachable storage compartment, one pair of unshielded speaker cables and a power cord. Capable of reproducing full bandwidth sound at high levels the 210P is comprised of a 250 mm (10 inch) woofer, a 37.5 mm (1.5 inch) neodymium high frequency compression driver coupled to a 100-degree H by 60-degree V waveguide driven by a 300 watt Crown Class-D power amplifier and integrated mixer.

Same Day Music is an authorized dealer of JBL products.

System
- System Type: Powered mixer with 2 two-way bass-reflex enclosures
- Maximum SPL Output: 124 dB peak system output (pink noise)
- Frequency Range (-10 dB): 60 Hz - 20 kHz
- Frequency Response (+/-3 dB): 75 Hz - 19 kHz
- AC input: 120 - 240 V 50/60 Hz, voltage selector switch sets operational range

Amplifier
- Design: Crown Class D
- System Power Rating: 300 Watts (2 X 150 W Sine Wave Burst)
- Output Connector: 2 X 1/4 in. TS (unbalanced) amplifier outputs

Mixer
- Input Connectors: 8 inputs (4 Mono Mic/Line, 2 X Stereo)
- Channels:
- - 1-4: XLR / 1/4 in. jack combo connectors; XLR is mic level input, 1/4 in. is line level input
- - 5-6: Two of 1/4 in. balanced TRS jacks (stereo), and a pair of RCA jacks (stereo)
- - 7-8: 3.5 mm stereo jack
- Input Impedance:
- - 1-4 Combo: XLR 3 K Ohms Balanced, Ch 1-4 Combo: TRS 20 K Ohms Balanced
- - 5-6: TRS 25 K Ohms Balanced
- - 5-6: RCA 12 K Ohms Unbalanced
- - 7-8: 3.5 mm 30 K Ohms Unbalanced
- Phantom Power: 30 V
- Output Connectors:
- - Monitor outputs: Two 1/4 in. balanced TRS jacks (stereo), and RCA jacks (stereo)
- - Headphone output: 3.5 mm stereo jack
- Signal Indicators: Main Output LED Ladder Limit: Red LED indicates limiter active condition; Signal: Green LED indicates signal present
- Signal Indicators (CH 1-4): Peak LED: Green = signal present, Red = input overload
- EQ: Individual channel Bass and Treble controls, center detent, +/-6 dB cut and boost
- System Limiter: On Board DSP Limiting and Tuning

Speaker
- LF Driver: 1 x JBL 328 H 250 mm (10 in) woofer
- HF Driver: 1 x JBL 2414H-1 37.5 mm (1.5 in.) annular polymer diaphragm, neodymium compression driver
- Coverage Pattern: 100 x 60 degrees nominal
- Crossover Frequency: 2 kHz
- Crossover Type: Passive network, 2nd order filters (-12 dB per octave) for high pass and low pass filters
- Enclosure: Polypropylene
- Suspension/ Mounting: 36 mm pole socket with stabilizing screw
- Handles: One on top
- Grille: Powder coated perforated steel
- Net Weight of System: 33 lbs.

Same Day Music is an authorized dealer of JBL products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 43 lbs

Shipping Dimensions: 14 x 26 x 22 in

with PA Pack

Shipping Weight: 66 lbs
