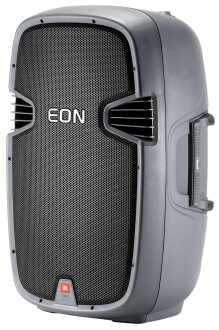

JBL EON Series EON 305 2-Way PA Speaker Cabinet, 250 Watts, 1x15 in.

Same Day Music is an
authorized JBL dealer

The JBL EON 305 2-Way Passive Loudspeaker: Wide Dispersion and Efficient Power Handling for Mobile Sound Reinforcement

Rapidly adding to its groundbreaking and industry-standard EON series portable loudspeakers, JBL is introducing EON 300 series portable PA loudspeakers at AES. The EON 300 series puts the next generation of EON systems within reach of an even broader range of users, delivering the same fundamental design features, sonic performance and integrated utility as the new EON 500 series, at an even more affordable price.

The EON 305 is a 15-inch, two-way, passive, portable speaker system. It is a light weight loudspeaker system capable of full-bandwidth reproduction at high levels. The EON 305 is comprised of a 15-inch (380 mm) JBL woofer, a 1-inch (25.4 mm) neodymium high frequency compression driver coupled to a 100-degree Horizontal by 60-degree Vertical waveguide. The system will handle 250 watts continuously and 1000 watts peak

Features of the JBL EON 305 2-Way Passive Loudspeaker:

The EON 305 is well-suited to live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues - especially when ease of use and portability are important factors. The rugged, portable design is a solid match for powered mixer systems.

• 250 watt Passive Speaker System, with a 500 watt program power and 1000 watt peak power rating


• Light Weight, at only 33 pounds (15 kg) it is truly portable


• Multiple handles for easy transport


• JBL 15-inch low-frequency driver with a 2.5-inch (64mm) diameter edge wound ribbon voice coil


• 1-inch throat diameter next generation JBL neodymium compression driver.


• 100-degree H x 60-degree V asymmetrical waveguide for uniform audience coverage


• SonicGuard HF protection


• NL4 Speakon and 1/4" input connectors


• Loop thru signal flow for extended system application and easy "daisy-chain" connections


• Integrated M10 suspension points for easy rigging


• Multi angle enclosure for main or monitor applications


• Integrated 36 mm pole mount socket with stabilizing securing screw


• Highly designed composite enclosure for durability, lightweight, and acoustic performance

The JBL Story

JBL's history is rooted in that of its namesake and founder, James B. Lansing. A true pioneer in Professional sound technology, Lansing developed many processes and products from the earliest motion picture sound systems in the 1930s to some of the first drivers in Leo Fender's guitar amps in the mid 1940s.

Today, JBL produces a wide variety of audio equipment, from consumer electronics to portable loudspeakers and subwoofers to high-end installed line arrays. Their commitment to innovative design is evident in everything they produce, with an emphasis on affordable, reliable gear for the working musician.

Technical Details of the JBL EON 305 2-Way Passive Loudspeaker:

• System Power Rating: 250 W continuous, 500 W program, 1000 W peak


• Frequency Range (-10 dB): 38 Hz - 20 kHz


• Dimensions (H x W x D): 27" x 17.3" x 14.4" (685 mm x 438 mm x 366 mm)


• Coverage Pattern: 100-degrees H x 60-degrees V nominal


• Maximum SPL: 128 dB


• Net Weight: 33 lbs. (15 kg)

Shipping Weights and Dimensions

Base Item

Shipping Weight: 47 lbs

Shipping Dimensions: 30 x 22 x 19 in
