Product Description

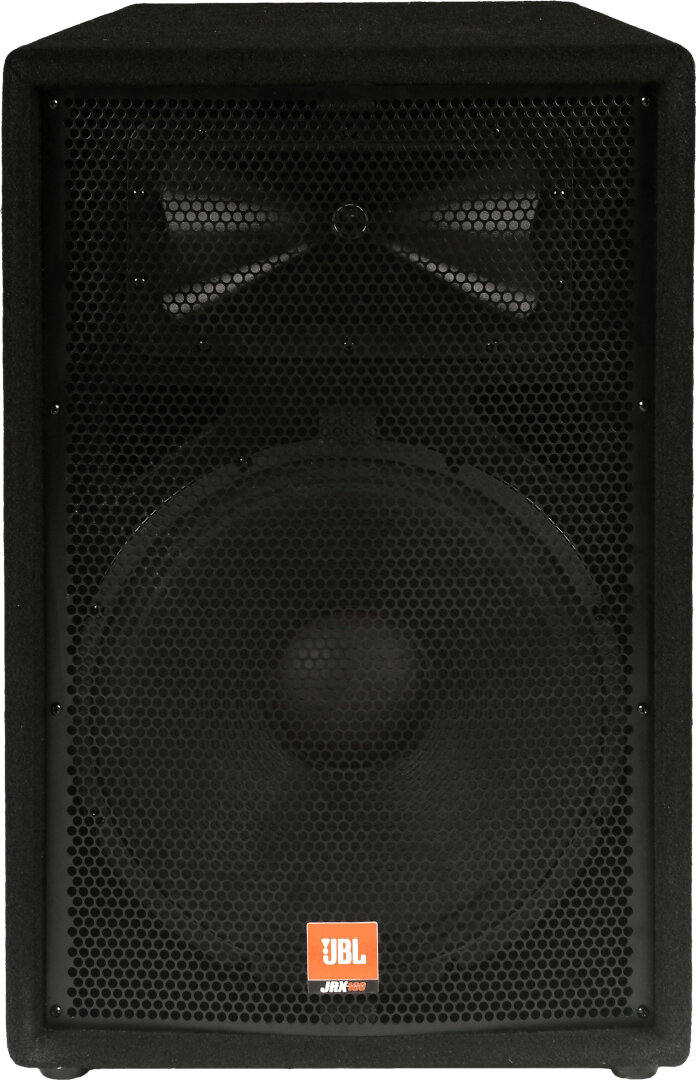

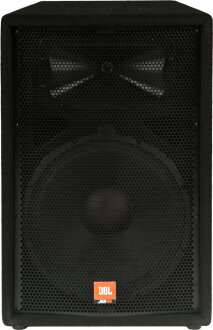

JBL JRX115
This trapezoidal, 15 in. speaker system is at home in live sound, dance music and speech reinforcement. It's equipped with low and high-frequency drivers built in JBL's Northridge, California factory. Features include the dual-angle, 35mm pole-mount socket as well as Neutrik Speakon and 1/4 in. input connectors.

Features
Neutrik Speakon and 1/4 in. input connectors

Constructed of carpet-covered, 3/4 in. MDF - a material that is structurally and acoustically superior to the particleboard

Heavy gauge wire is used for inductors

SonicGuard high-frequency driver protection

Dual-angle pole socket (for conventional vertical position, or with a 10 degree down angle)

All metal handles

18-gauge, full metal grille

All JRX100 models have passed the same 100-hour, full rated-power torture test that JBL high-end touring systems must survive.

Technical Description

Frequency Range (-10 dB): 38 Hz - 16 kHz

Frequency Response (-3 dB): 50 Hz - 12.5 kHz

Sensitivity (1w/1m): 98 dB SPL

Nominal Impedance: 8 ohms

* Power Capacity: 250 watts

* Peak Power Capacity: 1000 watts

Recommended Amplifier Power: 250 watts to 500 watts into 8 ohms

Maximum SPL: 128 dB

Nominal Dispersion: 90 x 50 degrees

Crossover Frequency: 1.6 kHz

Dimensions (H x W x D): 27.5 in x 18.1 in x 17 in (699 mm x 460 mm x 432 mm)

Weight: 61 lbs (27.4 kg)

High Frequency Driver: JBL 2412 1 in. exit compression driver mounted on Progressive Transition Waveguide

Low Frequency Driver: JBL M115-8A

Input Connectors: Neutrik Speakon NL-4 (x1); 1/4 in. TS phone jack (x1); parallel

* "Power Capacity" and "Peak Power Capacity" ratings are based on the average and peak power capacity of product samples subjected to a 100 hour power test using random noise with a 6 dB crest factor, in accordance with IEC standards.

Catalog Description

Ready for any sound reinforcement job@2-way design with 15" woofer and horn tweeter@Dual-angle pole socket for vertical or 10-degree downward-tilt mounting@Speakon and 1/4" connectors@Handles 250 watts at 8 ohms
