JBL JRX118S Passive PA Subwoofer (350 Watts, 1x18 in.)
1400 watts peak, 350 watts continuous. 3 in. voice-coil.
Product rated 8.4 out of 10 (14 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Behringer DCX2496
- $270
- CBI 14-Gauge Speaker Cable
- from $11
- Monster Performer 500 Speaker Cable
- from $24.90
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

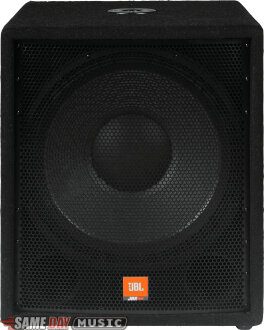

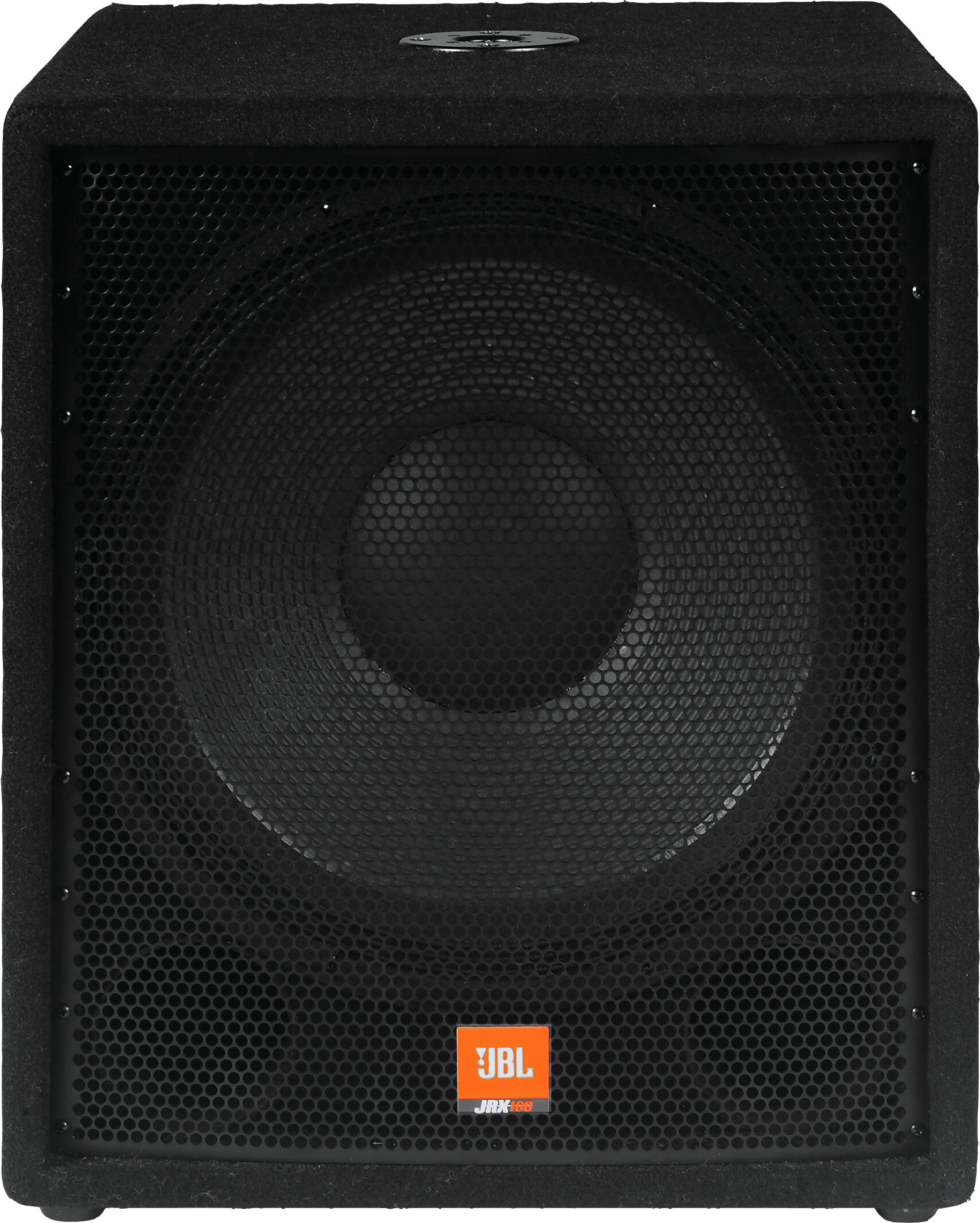

JBL JRX118S
The JRX118S is a 1x18 in. compact (passive) subwoofer, rated at 1400 watts peak power capacity and 350 watts continuous. It includes a newly designed JBL 18 in. woofer with a cast frame and 3 in. voice-coil.
About the JRX100 Series
JBL designed the new JRX100 series for cost-conscious musicians, DJs and other users of live sound reinforcement speakers. All full-range models feature Neutrik Speakon and 1/4 in. input connectors. JRX100 cabinets are constructed of carpet-covered, 3/4 in. MDF -- a material that is structurally and acoustically superior to the particleboard that is used by many competitive products. To minimize distortion, heavy gauge wire is used for inductors and SonicGuard high-frequency driver protection guards against damage caused by inadvertent overpowering of the system. The JRX115 and JRX112M's innovative, new dual-angle pole socket allows them to be mounted in either a conventional, vertical position, or with a 10 degree down angle. By aiming the speaker down, you get more even audience coverage and reduce the destructive acoustic reflections from walls. JBL constructs the JRX enclosures with advanced adhesives and closely mechanically spaced fasteners, not just glue. They use non-resonant, all metal handles, and an 18-gauge, full metal grille. All JRX100 models have passed the same 100-hour, full rated-power torture test that JBL high-end touring systems must survive.
The JRX118S is a 1x18 in. compact (passive) subwoofer, rated at 1400 watts peak power capacity and 350 watts continuous. It includes a newly designed JBL 18 in. woofer with a cast frame and 3 in. voice-coil.
About the JRX100 Series
JBL designed the new JRX100 series for cost-conscious musicians, DJs and other users of live sound reinforcement speakers. All full-range models feature Neutrik Speakon and 1/4 in. input connectors. JRX100 cabinets are constructed of carpet-covered, 3/4 in. MDF -- a material that is structurally and acoustically superior to the particleboard that is used by many competitive products. To minimize distortion, heavy gauge wire is used for inductors and SonicGuard high-frequency driver protection guards against damage caused by inadvertent overpowering of the system. The JRX115 and JRX112M's innovative, new dual-angle pole socket allows them to be mounted in either a conventional, vertical position, or with a 10 degree down angle. By aiming the speaker down, you get more even audience coverage and reduce the destructive acoustic reflections from walls. JBL constructs the JRX enclosures with advanced adhesives and closely mechanically spaced fasteners, not just glue. They use non-resonant, all metal handles, and an 18-gauge, full metal grille. All JRX100 models have passed the same 100-hour, full rated-power torture test that JBL high-end touring systems must survive.
TECHNICAL DESCRIPTION
Frequency Range (-10dB): 38Hz - 300Hz
Frequency Response: (3dB): 55Hz - 300Hz
Sensitivity (1W/1m): 96dB SPL
Nominal Impedance: 4 Ohms
Power Capacity (continuous, 100-hour power test): 350 Watts
Peak Power Capacity: 1400 Watts
Recommended Amplifier Power: 350 Watts to 700 Watts into 4 Ohms
Recommended Crossover Settings: 30Hz HPF, 24dB/octave; 80 – 100Hz LPF, 24dB/octave
Maximum SPL: 127dB
Dimensions: 23.5 x 20.3 x 22 in. (597 x 516 x 559mm)
Weight: 71 lbs. (32.2 kg)
Low Frequency Driver: JBL 2043-G
Input Connector: Neutrik Speakon NL-4 (x2); 1/4 in. TS phone jack (x1); parallel
Frequency Response: (3dB): 55Hz - 300Hz
Sensitivity (1W/1m): 96dB SPL
Nominal Impedance: 4 Ohms
Power Capacity (continuous, 100-hour power test): 350 Watts
Peak Power Capacity: 1400 Watts
Recommended Amplifier Power: 350 Watts to 700 Watts into 4 Ohms
Recommended Crossover Settings: 30Hz HPF, 24dB/octave; 80 – 100Hz LPF, 24dB/octave
Maximum SPL: 127dB
Dimensions: 23.5 x 20.3 x 22 in. (597 x 516 x 559mm)
Weight: 71 lbs. (32.2 kg)
Low Frequency Driver: JBL 2043-G
Input Connector: Neutrik Speakon NL-4 (x2); 1/4 in. TS phone jack (x1); parallel
CATALOG DESCRIPTION
1400 Watts peak, 350 Watts continuous@3-in. voice-coil@Speakon and 1/4 in. input connections
