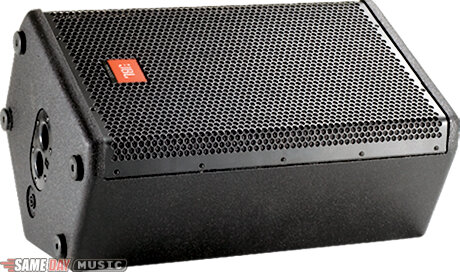

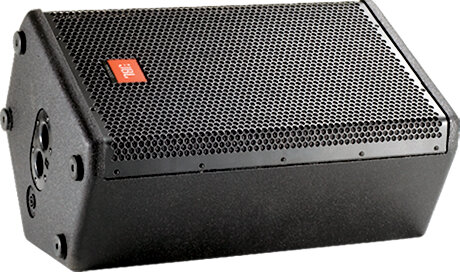

JBL MRX512M
The MRX512 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.
The MRX512M is a premium utility/monitor speaker. The MRX512M uses a JBL 262H 305 mm (12 in) Differential Drive woofer and a 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 400 watts (continuous) power capacity. A 70-degree x 70-degree horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation. NL4 connectors are provided on both ends of the speaker to keep cable runs tidy on stage when used in the monitor application and for easy access when used on tripods. A passive network provides accurate reproduction throughout the cross-over region. For use on a tripod or over a subwoofer, JBL's dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10-degree down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlex finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
Constantly pushing the threshold for better, more useful products for the working musician and DJ, JBL Professional once again hits the target with the all-new MRX500 Series Loudspeaker System. Compact, lightweight, truly portable, the MRX500 is the ultimate PA system for musicians and DJ's who need fully professional sound and performance within a budget.
Features
12 in. Differential Drive woofer for high-power capacity and very lightweight
1.5 in. annular polymer diaphragm compression driver
Compact and low-profile for minimal obstruction of audience sight-lines
70-degree x 70-degree coverage for even and smooth response on and off axis
Dual-angle pole socket for applications requiring tripod mounting
Heavy Duty 16 gauge protective screen backed steel grille
Tough DuraFlex enclosure finish
Applications
Speech reinforcement
Live performance stage monitoring
Reinforcement of vocal and acoustic music
High-performance satellite speaker for use with subwoofers
Frequency range: 60 Hz - 20k Hz
Frequency response: 90 Hz - 20k Hz
Sensitivity: 97dB SPL
Nominal impedance: 8 ohms
Power capacity: 400 W / 800 W / 1600 W
Rated maximum SPL: 123 dB SPL continuous (129 dB SPL peak)
Coverage pattern: 70 degrees x 70 degrees nominal
Dimensions (H x W x D): 645 mm x 380 mm x 345 mm; (25.25 in x 15.0 in x 13.5 in)
Weight: 14.9 kg (33.0 lbs.)
High frequency driver: 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Low frequency driver: 1 x JBL 262H 305 mm (12 in) Differential Drive woofer
