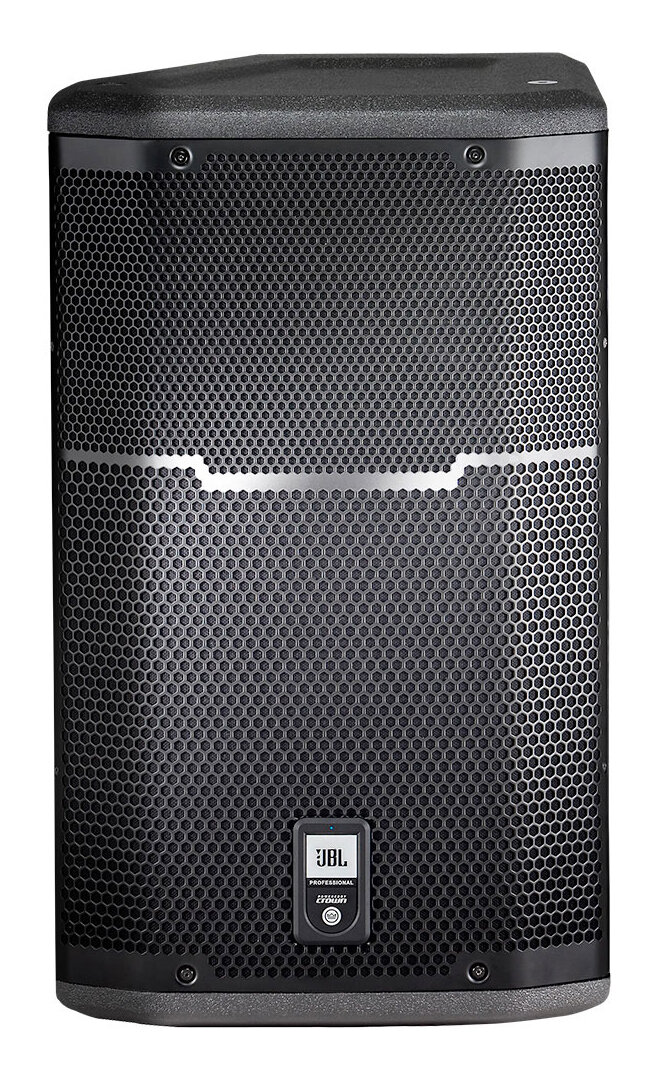

JBL PRX Series PRX612M 2-Way Powered Speaker, 1000 Watts, 1x12 in.

Compact, durable and powerful the PRX612M from JBL offers an incredible active PA speaker that is designed for multi-purpose use as a monitor or a front-of-house main. Providing the user an incredible speaker with pristine crown amplification built right in, the PRX speakers are a powerful solution for both installed and portable setups. Don't bother with inferior speaker designs; JBL PRX has the power, the clarity and a name that's trusted.

Features
- 1000 Watt Class-D, Crown amplifier with 134db peak SPL
- Dual purpose enclosure for both front-of house and floor monitor applications
- Optimized EQ for monitor for front-of-house applications
- 12 inch Differential Drive dual voice-coil and magnetic gap, neodymium woofer
- 1.5 inch annular polymer diaphragm, neodymium, compression driver
- DSP input section, crossover and dynamic limiting
- Component optimization and selectable system EQ
- Professional XLR line and 1/4 inch Mic/Instrument inputs, with loop through
- Eight M10 fly points for horizontal or vertical suspension
- One M10 pull-back point
- Dual-angle pole mount socket

Applications
The PRX612M is comprised of a 305 mm (12 inch) 265F Differential Drive woofer, a 2408H-1, 37.5 mm (1.5 inch) annular polymer diaphragm, neodymium compression driver mounted to a 90 by 50 degree horn, all driven by 1000 watt (dual 500 watt) Crown Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

The amplifier input panel offers XLR or 1/4 inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

Same Day Music is an authorized dealer of JBL products.

Specifications
System Type: Self powered 12 inch, two-way, bass-reflex

Maximum SPL Output:
- Full Range: 134 dB peak
- Monitor: 133 dB peak

Frequency Range (-10 dB):
- Full Range 50-20 kHz
- Monitor (vertical orientation) 60-20 kHz
- Monitor (monitor orientation) 51-20 kHz

Frequency Response (+/-3 dB):
- Full Range 60-17.5 kHz
- Monitor (vertical orientation) 90-18 kHz
- Monitor (monitor orientation) 61-18.5 kHz
Input Connectors: Balanced XLR-1/4 inch combo jack with XLR loop through

Input Impedance: 20K ohms (balanced), 10K ohms (unbalanced)

Signal indicators:
- Limit: Red LED indicates limiter active condition
- Signal: Green LED indicates signal present

EQ: Presets for use in Main and Monitor position

Dynamic Control (Input): dbx Type IV limiter circuit

Crossover Modes: DSP controlled
- LF: 48 dB/Oct filter slope High & Low Pass
- HF: 36 dB/Oct High Pass

Crossover Frequency: 2 kHz

Amplifier Design: Crown Class D

Power Rating: 1000 Watts (2 x 500)

LF Driver: 1 x JBL 262F-1 380 mm (12 in)
- Differential Drive dual voicecoil
- Magnetic gap, neodymium woofer

HF Driver: 1 x JBL 2408H 37.5 mm (1.5 in)
- Annular polymer diaphragm
- Neodymium compression driver

Coverage Pattern: 90 x 50 degrees nominal

Directivity Index (DI): 9.8 dB

Directivity Factor (Q): 9.6

Enclosure: Asymmetrical, 18 mm, plywood

Suspension/Mounting:
- Dual 36 mm pole socket
- 8 x M10 Suspension Points
- 1 x M10 Pull-Back Point

Transport: Integrated handle with backing cup

Finish: Obsidian DuraFlex finish

Grille: Powder coated, Obsidian
- 16 gauge perforated steel
- Acoustically transparent black cloth backing.

Dimensions (HxWxD): 23.3 x 13.9 x 13.4 inches (592 x 353 x 340 mm)

Weight: 34.5 lbs (15.6 kg)

Same Day Music is an authorized dealer of JBL products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 43 lbs

Shipping Dimensions: 26 x 18 x 18 in
