    JBL PRX Series PRX615M 2-Way Powered Speaker, 1000 Watts, 1x15 in.

    You won't find yourself trying to squeeze out any extra power with these PRX Series JBL speakers, with plenty of full range wattage for most any application.

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    JBL PRX735 3-Way Powered Loudspeaker (1500 Watts, 1x15")

    $1,199

    The JBL PRX735 is the next step in the highly successful PRX Series and introduces the first use of JBL's patented Differential Drive Technology with ferrite drivers. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9.7 Out of 10 (8 ratings)
    **********

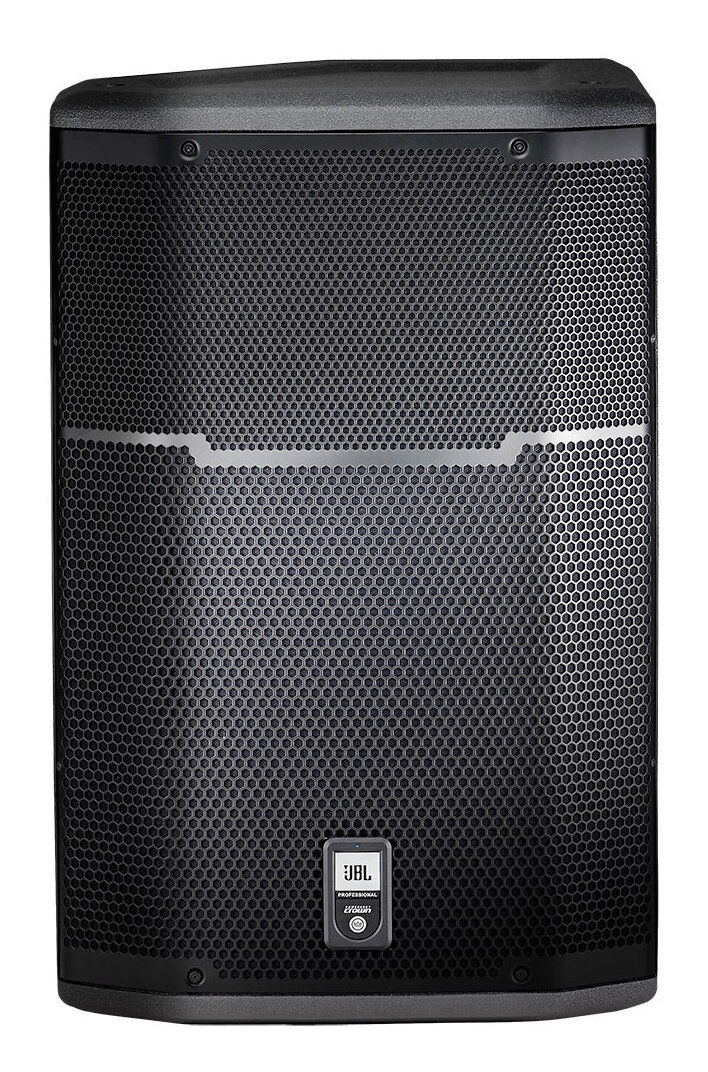

    JBL PRX615M 2-Way Powered Speaker (1000 Watts, 1x15") Product Description

    The JBL PRX615M 2-Way Powered Loudspeaker: Lightweight and Portable, with Spectacular Sound

    The PRX600 Series represent an evolutionary step in the efficient use of amplifier power, rugged durability and enhanced versatility in a self-powered loudspeaker. Designed from the ground up to perform in the real world of sound reinforcement where challenging audio environments, high ambient noise levels and loud volumes are the norm, the PRX600 Series are built to last a lifetime using our reliable and trustworthy, tour-tested technology. Knowing you can rely on your system to deliver everything you need gives you the freedom to deliver your best. That's performance you can trust.

    The 2-way 15-inch enclosure is the most recognizable form of portable PA loudspeakers and offers the perfect balance between size and performance. The PRX615M truly is an exception; it's small, light weight, versatile and powerful.


    Features of the JBL PRX615M 2-Way Powered Loudspeaker:

    The 2-way 15-inch design offers the perfect balance between size and performance. The PRX615M truly is an exception; it's small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ's when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX600 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX615M delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ, "flat" for speech intelligibility, and "boost" for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX600 sub-woofer the system becomes an efficient, full-range sound system.

    The PRX615M is comprised of a 15-inch (380 mm) 265F Differential Drive dual voice-coil and magnetic gap, neodymium woofer, a 2408H-1 1.5-inch (37.5 mm) annular polymer diaphragm, neodymium compression driver mounted to a 90-degree by 50-degree horn, all driven by 1000 watt (dual 500 watt) Crown Class-D power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

    All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16-gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14-gauge steel and have been tested with a yield-strength of 1000 pounds each.

    The amplifier input panel offers XLR or 1/4-inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.


    • Maximum SPL Output 135db peak

    • 15-inch (380 mm) Differential Drive dual voice-coil and magnetic gap, neodymium woofer

    • 1.5-inch (37.5mm) annular polymer diaphragm, neodymium magnet compression driver

    • 1000 Watt (dual 500 watt) Class-D, Crown digital amplifier

    • DSP input section with dbx Type IV limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ

    • Professional XLR line and 1/4-inch Mic/Instrument inputs, with loop through

    • Integrated 36mm dual-angle pole mount socket

    • Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort

    • 8 M10 Suspension points and 1 pullback point

    The JBL Story

    JBL's history is rooted in that of its namesake and founder, James B. Lansing. A true pioneer in Professional sound technology, Lansing developed many processes and products from the earliest motion picture sound systems in the 1930s to some of the first drivers in Leo Fender's guitar amps in the mid 1940s.

    Today, JBL produces a wide variety of audio equipment, from consumer electronics to portable loudspeakers and subwoofers to high-end installed line arrays. Their commitment to innovative design is evident in everything they produce, with an emphasis on affordable, reliable gear for the working musician.



    Same Day Music is an authorized dealer of JBL products.

    JBL PRX615M Technical Description

    Technical Details of the JBL PRX615M 2-Way Powered Loudspeaker:


    • System Type: Self-powered 15", two-way, bass-reflex

    • Maximum SPL Output: Full Range: 135 dB peak, Monitor: 134 dB peak

    • Frequency Range (-10 dB): Full Range: 45 Hz - 19 kHz, Monitor: 48 Hz - 20 kHz

    • Frequency Response (+/- 3 dB): Full Range: 54 Hz - 18 kHz, Monitor: 60 Hz - 18 kHz

    • Coverage Pattern: 90-degree x 50-degree nominal

    • Amp Design: Crown Class D

    • Power Rating: 1000 W ( 2 x 500 )

    • Dimension (H x W x D): 26.0" x 16.9" x 16.3" (660 mm x 429 mm x 414 mm)

    • Net Weight: 43.5 lbs. (19.7 kg)


    Same Day Music is an authorized dealer of JBL products.
