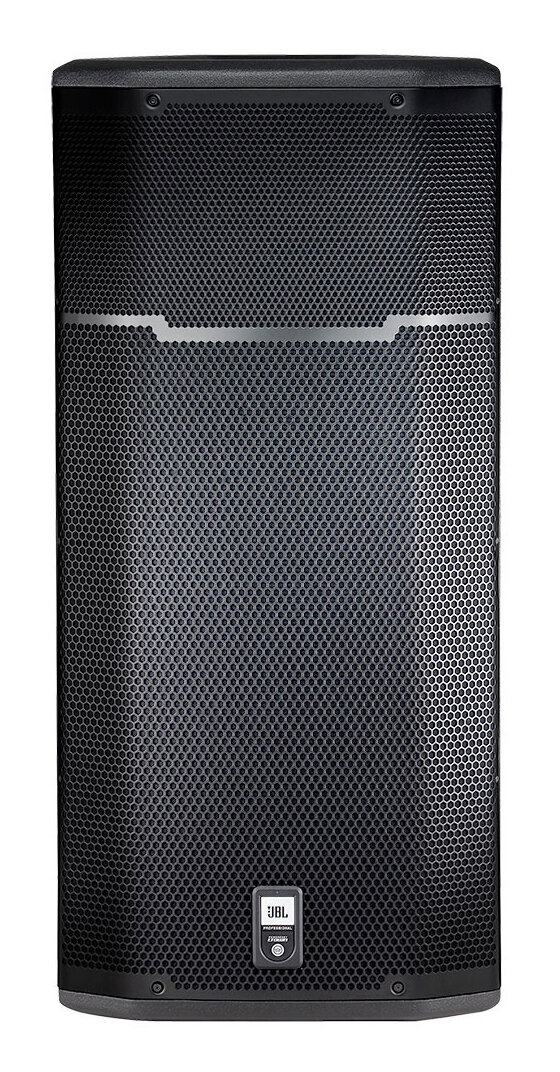

JBL PRX Series PRX635 3-Way Powered Speaker, 1500 Watts, 1x15 in.

The JBL PRX635 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth.
The PRX635 is comprised of one 15 inch 265F Differential Drive woofer, a 6.5 inch 195H horn-loaded 90* by 50* mid-range and a 1 inch annular polymer diaphragm, neodymium compression driver mounted to a 90* by 50* horn, all driven by a 1500 watt (3 x 500) Audio Class-D power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

Features
- Maximum SPL 135 db peak
- 15 inch Differential Drive dual voice-coil and magnetic gap, neodymium woofer
- 6.5 inch horn loaded midrange transducer
- 1 inch polymer diaphragm compression driver
- 1500 Watt (3 x 500 watt) Class-D, Crown digital amplifier
- DSP input section with dbx Type IV limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
- Professional XLR line and 1/4 inch Mic/Instrument inputs, with loop through
- Obsidian DuraFlex coated plywood construction
- Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
- 8 M10 Suspension points and 1 pullback point
- Integrated 36mm pole mount socket

This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. These cabinets can be stand-mounted but do require a large footprint tri-pod type stand. When pole mounting the PRX635 on a subwoofer JBL highly recommend a pole no longer than 24 inch to ensure stability and safety. As with all the full-range PRX600 Series systems two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

The amplifier input panel offers XLR or 1/4 inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.

All PRX600 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.

Same Day Music is an authorized dealer of JBL products.

System
- System Type: Self powered 15 inch, three-way, bass-reflex
- Maximum SPL Output: 135 dB peak
- Frequency Range (-10 dB) Flat: 41-19 kHz Boost: 40-19 kHz
- Frequency Response (+/-3 dB) Flat: 53-18 kHz Boost: 50-18 kHz
- Input Connectors: Balanced XLR-1/4 inch combo jack with XLR loop-through
- Input Impedance: 20K ohms (balanced), 10K ohms (unbalanced)
- Limit: Red LED indicates limiter active condition
- Signal: Green LED indicates signal present
- EQ: Presets for use in Main and Boost position
- Dynamic Control (Input): dbx Type IV limiter circuit
- Crossover Modes: DSP controlled.
- LF: 48 dB/Oct filter slope High & Low Pass
- HF: 36 dB/Oct High Pass
- Crossover Frequency: 1.8 kHz

Amplifier
- Design: Crown Class D
- Power Rating: 1500 Watt (3 x 500)
- LF Power amp x 2: 1000 Watt
- HF Power amp: 500 Watt

Speaker
- LF Driver: 1 x JBL 265F-1, 380 mm (15 inch) Differential Drive dual voicecoil and magnetic gap, neodymium woofer
- MF Driver: 1 x JBL 195H, 165 mm (6.5 inch) horn-loaded midrange transducer
- HF Driver: 1 x JBL 2414H 25.4 mm (1 inch) annular polymer diaphragm, neodymium compression driver
- Coverage Pattern: 90* x 50* nominal
- Directivity Index (DI): 9.6 dB
- Directivity Factor (Q): 9.1
- Enclosure: Trapezoidal, 18 mm, plywood
- Suspension/Mounting: 36 mm pole socket, 8 x M10 Suspension Points and 1 x M10 Pull-Back Point
- Transport: Integrated handle with backing cup
- Finish: Obsidian DuraFlex finish
- Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustically transparent black cloth backing.
- Input Connectors: Balanced XLR-1/4 inch combo jack with XLR loop-through
- Dimensions (H x W x D): 36.29 x 16.9 x 16.27 inches (921 x 429 x 413 mm)
- Net Weight: 60 pounds (27.2 kg)
- Gross Weight: 64.5 pounds (29.2 kg)

Same Day Music is an authorized dealer of JBL products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 71 lbs

Shipping Dimensions: 39 x 22 x 21 in
