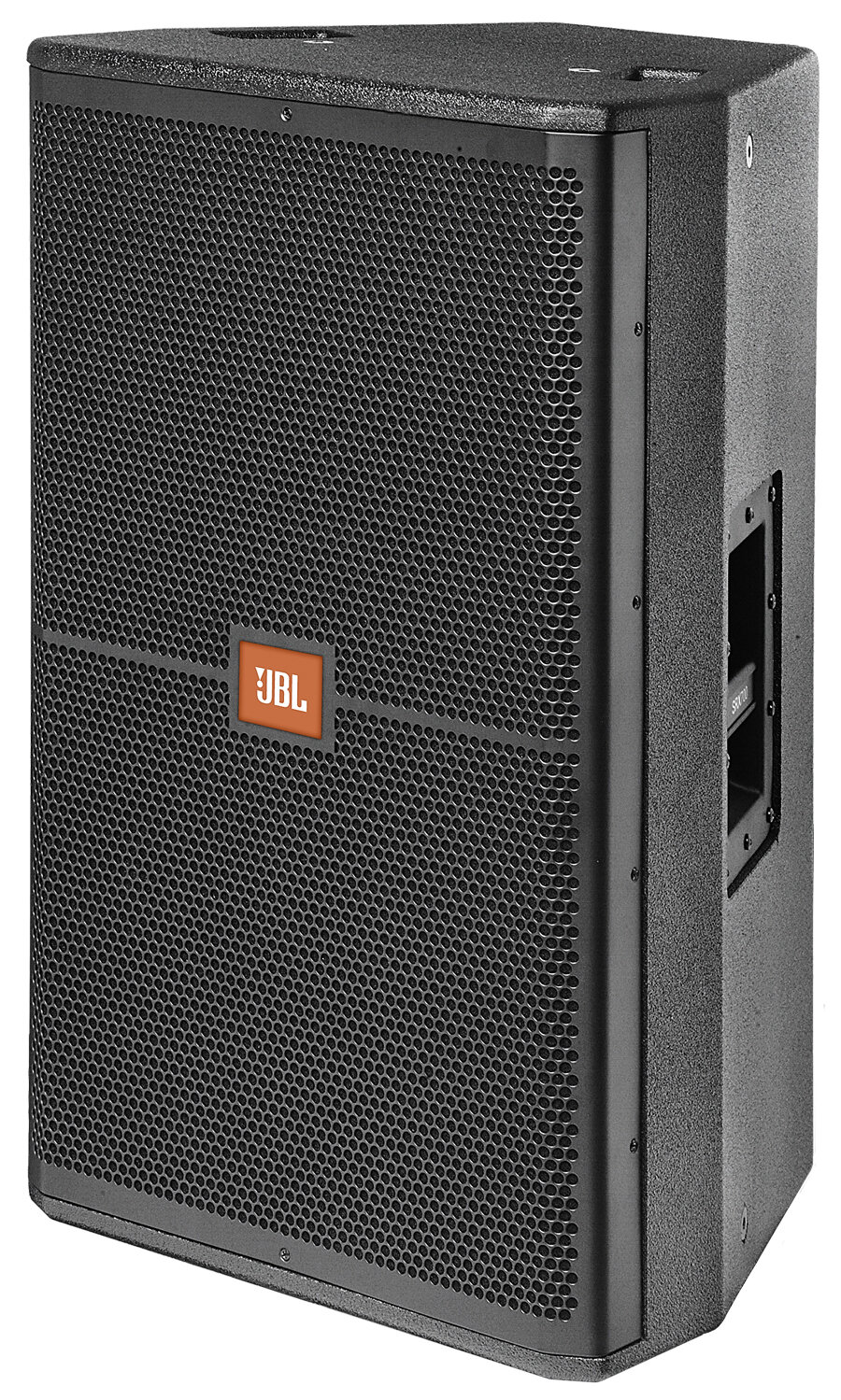

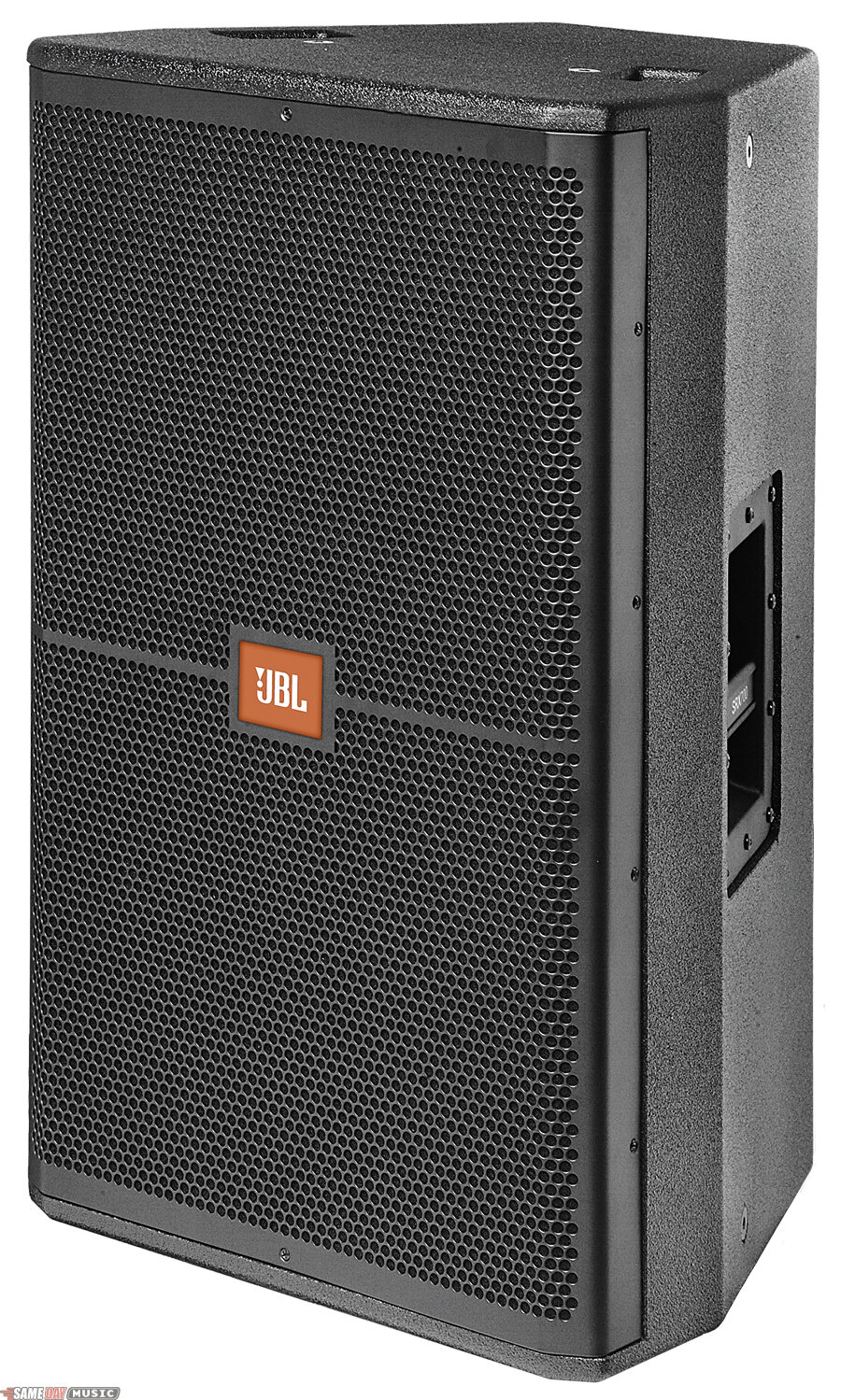

JBL SRX715 2-Way Loudspeaker (800 Watts, 15 in.)
Lightweight, portable and very powerful JBL speaker from the SRX series.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Behringer DCX2496
- $270
- CBI 14-Gauge Speaker Cable
- from $11
- Monster Speaker Cable
- from $24.90
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The SRX715 offers the highest level of performance available from a portable, pole or tripod mountable speaker. The 2265H Differential Drive woofer handles 800 watts (continuous) while weighing only 48 lbs (22kg). A 2431H 3-inch diaphram, neodymium compression driver on a 75° x 50° horn makes the SRX715 the best choice for general purpose sound reinforcement, live performance, music playback or speech. When the application calles for increased low-frequency extension, add the SRX728S or SRX718S subwoofer.
TECHNICAL DESCRIPTION
Frequency Range (-10 dB): 43 Hz – 20 kHz
Frequency Response (±3 dB): 53 Hz – 20 kHz
Coverage Pattern: 75° x 50° nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 1.2 kHz
Power Rating (Continuous1; Program; Peak):
- Passive: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp LF: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp HF: 75 Watts; 150 Watts; 300 Watts
Maximum SPL2: 131 dB SPL peak
System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)
LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive woofer with neodymium magnet and dual voice-coils
HF Driver: 1 x JBL 2431H 75 mm (3 in) voice-coil, neodymium magnet compression driver
Nominal Impedance:
- Passive: 8 ohms
- Bi-amp LF: 8 ohms
- Bi-amp HF: 8 ohms
Active Tunings: dbx DriveRack, all models.
Enclosure: Trapezoidal, 15 mm, 11-ply birch plywood
Suspension / Mounting: Dual-angle (0° or -10°) 35 mm pole socket
Transport: 2 x steel handles
Finish: Black DuraFlex finish
Grille: Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
Removable JBL badge and punched JBL logo.
Input Connectors: Neutrik Speakon NL-4 (x2)
Dimensions (H x W x D): 28 in x 17.3 in x 16 in (711 mm x 439 mm x 406 mm)
Net Weight: 48 lbs. (22 kg)
Frequency Response (±3 dB): 53 Hz – 20 kHz
Coverage Pattern: 75° x 50° nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 1.2 kHz
Power Rating (Continuous1; Program; Peak):
- Passive: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp LF: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp HF: 75 Watts; 150 Watts; 300 Watts
Maximum SPL2: 131 dB SPL peak
System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)
LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive woofer with neodymium magnet and dual voice-coils
HF Driver: 1 x JBL 2431H 75 mm (3 in) voice-coil, neodymium magnet compression driver
Nominal Impedance:
- Passive: 8 ohms
- Bi-amp LF: 8 ohms
- Bi-amp HF: 8 ohms
Active Tunings: dbx DriveRack, all models.
Enclosure: Trapezoidal, 15 mm, 11-ply birch plywood
Suspension / Mounting: Dual-angle (0° or -10°) 35 mm pole socket
Transport: 2 x steel handles
Finish: Black DuraFlex finish
Grille: Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
Removable JBL badge and punched JBL logo.
Input Connectors: Neutrik Speakon NL-4 (x2)
Dimensions (H x W x D): 28 in x 17.3 in x 16 in (711 mm x 439 mm x 406 mm)
Net Weight: 48 lbs. (22 kg)
