Product Description

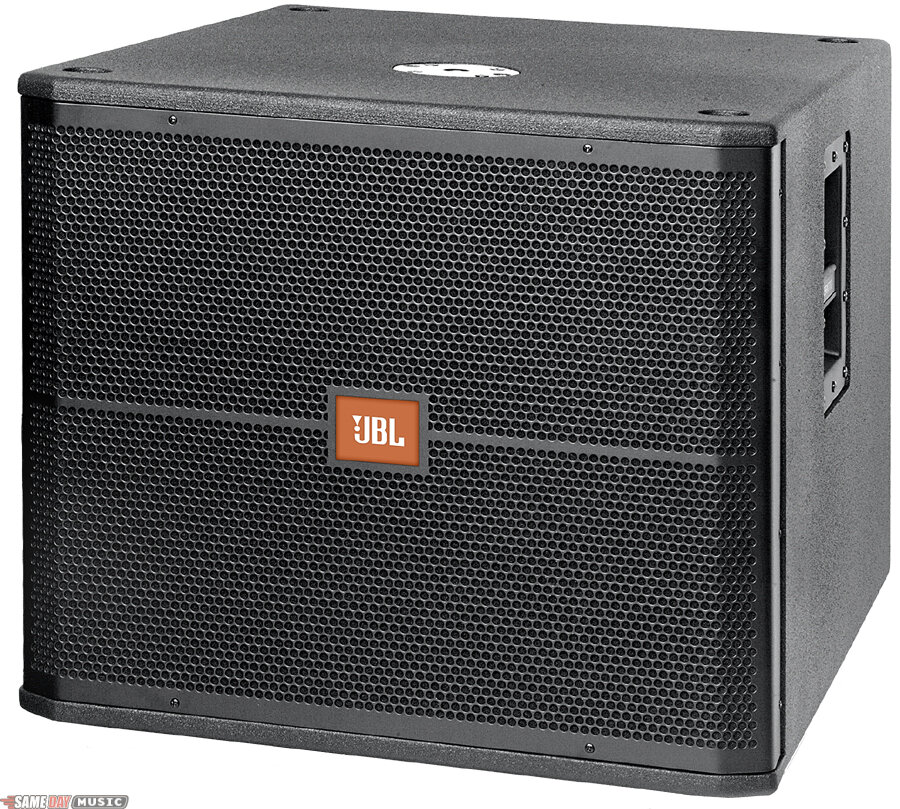

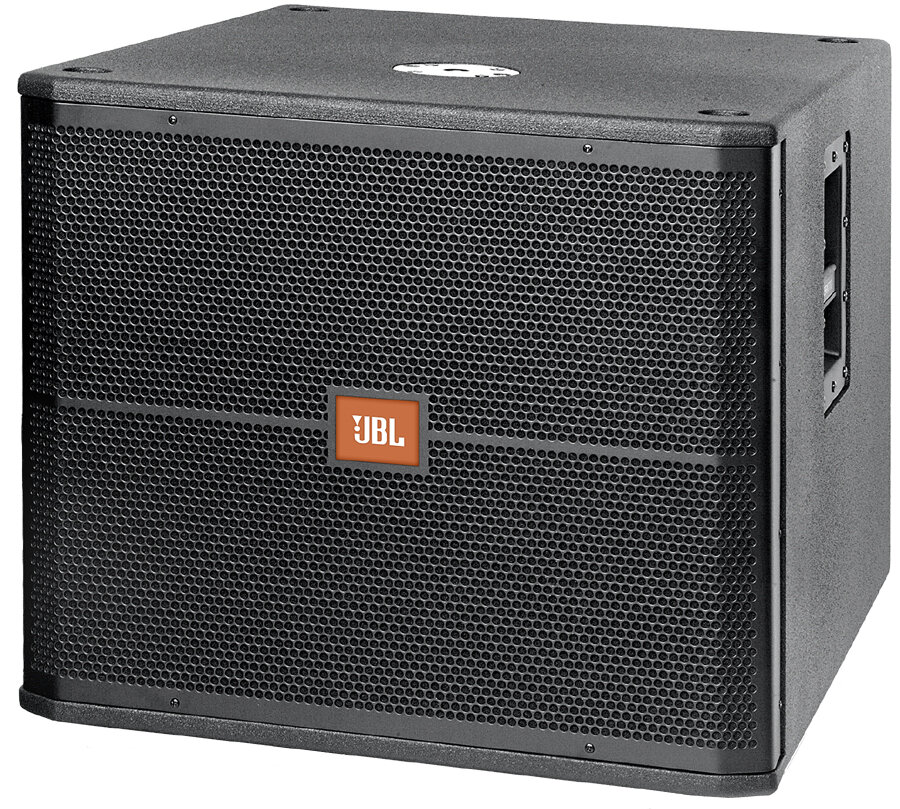

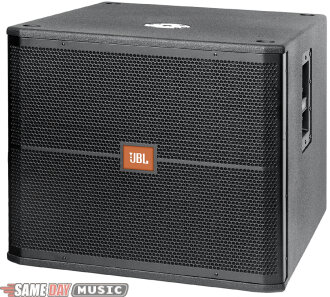

The SRX718S subwoofer's compact design is equally at home as a small, high-performance satellite subwoofer system or as a building block for larger subwoofer arrays. The 13-ply birch enclosure is rigidly braced for solid response. A top-mounted, M20 threaded pole receptacle is used to ensure that even heavier, high-power satellite speakers can be securely mounted using the optional, adjustable SS4-BK speaker pole. Threaded insert points are provided for attachment of the optional WK-4 wheel kit.

Technical Description

System Type: 18-inch bass-reflex subwoofer

Frequency Range (-10 dB): 31 Hz – 220 Hz

Frequency Response (±3 dB): 34 Hz – 220 Hz

Input Connection Modes: Switchable, +1/-1 or +2/-2

Recommended Crossover Frequencies: 80 Hz, 24 dB / octave HPF 80 Hz, 24 dB / octave LPF

Power Rating (Continuous1 / Program / Peak): 800 W / 1600 W / 3200 W

Maximum SPL2: 130 dB SPL peak

Sensitivity (1w @ 1m): 95 dB SPL

LF Driver: 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer

Nominal Impedance: 8 ohms

Mounting: Top mounted M20 threaded socket for optional SS4-BK pole

Enclosure: Rectangular, 18 mm, 13-ply birch plywood

Finish: Black DuraFlex finish

Grille:
- Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
- Removable JBL badge and punched JBL logo.

Input Connectors: Neutrik® Speakon® NL-4 (x2)

Dimensions (H x W x D): 20.0 in x 23.5 in x 29.5 in (508 mm x 597 mm x 749 mm)

Net Weight: 79 lbs. (36 kg)
