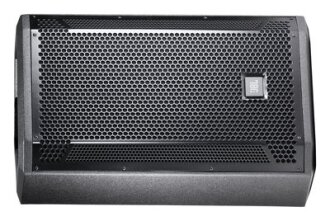

    JBL STX812M 2-Way Floor Monitor

    More Resources

    JBL Warranty: If you have additional warranty questions, please call the manufacturer at 800-852-5776
    Order Now | Limited Qty
    •
    • 2 Day: $36
    • Overnight: $110
    $1,049
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    JBL STX815M 2-Way Passive, Unpowered Floor Monitor Speaker (1600 Watts, 1x15") Product Description

    The JBL STX815M 2-Way Loudspeaker is designed specifically to be a high-performance 15-inch two-way floor monitor. It can also do double duty as a utility speaker for use on a tripod stand or over a subwoofer, utilizing a single-position pole mount. A 70 degree by 70 degree waveguide is utilized for precise coverage.

    STX800 Series

    The STX800 Series was designed to bridge the space between light-duty portable PA speakers and flown full-size line array tour sound systems. Their goals at the inception of this project were simple: Offer a high-performance, high-density system solution in a truck-pack friendly format. Develop concert-worthy floor monitors and side fills that could affordably complement any touring sound system. Deliver an affordable, great-sounding subwoofer that could reproduce true low frequency at elevated sound pressure levels. With four full-range systems and two subwoofers, the STX Series can cover just about any professional application. Whether you're in need of ancillary speakers for a full-blown tour sound system, ground-stacking for a live concert performance, installing speakers in dance clubs or performance venues, touring clubs with your band, or you are a performing mobile DJ, STX800 Series is the smart choice.

    Features:

    - Compact and low-profile for minimal obstruction of audience sight-lines
    - 70 x 70 degree nominal coverage
    - Bi-amplified or full-range passive operation
    - Pole socket for applications requiring pole or tripod mounting
    - High power handling, low distortion Vented Gap Cooling LF driver
    - 3 inch (diaphragm) neodymium magnet compression driver
    - Rugged DuraFlex coated enclosures sized to be truck pack friendly
    - 14-Gauge steel grille lined with acoustically transparent cloth

    Note: Unpowered speaker, requires separate power amplifier.

    Same Day Music is an authorized dealer of JBL products.

    JBL STX812M 2-Way Floor Monitor Speaker (1600 Watts, 1x12") Technical Description

    - Frequency Range (-10 dB): 41 Hz - 20 kHz
    - Frequency Response (±3 dB): 55 Hz - 20 kHz
    - Coverage Pattern: 70* x 70* nominal
    - Crossover Modes: Bi-amp / passive, externally switchable
    - Crossover Frequency: 1.8 kHz
    - Power Rating
    (Continuous1 / Program / Peak): Passive: 800 W / 1600 W / 3200 W
    - Bi-amp LF: 800 W / 1600 W / 3200 W
    - Bi-amp HF: 75 W / 150 W / 300 W
    - Maximum SPL2: 131 dB SPL peak
    - System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)
    - LF Driver: 1 x JBL 2226H 380 mm (15 in) Vented Gap Cooled™
    woofer
    - HF Driver: 1 x JBL 2432H 75 mm (3 in) voice-coil, neodymiummagnet compression driver
    - Nominal Impedance: Passive: 8 ohms
    - Bi-amp LF: 8 ohms
    - Bi-amp HF: 8 ohms
    - Active Tunings: Designed for Crown and dbx DriveRack. Settings
    available at www.jblpro.com
    - Enclosure: Asymmetrical, 18 mm, 13-ply birch/poplar laminate
    plywood
    - Suspension / Mounting: 35 mm pole socket
    12 x suspension points, M10
    - Transport: 2 side handles
    - Finish: Black DuraFlex finish
    - Grille: Powder coated, black, 14-gauge perforated steel with
    acoustical transparent charcoal foam backing.
    - Input Connectors: Neutrik Speakon NL-4 (x2)
    - Pole Socket Size: 1-3/8" (35 mm)
    - Dimensions (H x W x D): 721 mm x 436 mm x 329 mm
    (28.4 in x 17.2 in x 13.0 in)
    - Net Weight: 26 kg (58 lb)
