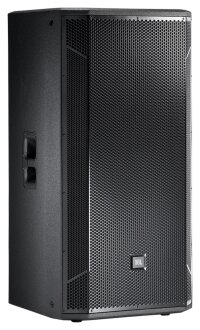

The JBL STX835 3-Way PA speaker is a slot-loaded dual 15-inch three-way speaker with horn-loaded mid and high sections. This incredible speaker is designed for full-range use in stand-alone applications or for use in high performance environments as the premier ground stack passive top box. Designed to be placed over the JBL STX828, the STX835 cabinet can be used in multiples in a high density situation.
With 2,400 watts program power handling and 4,800 peak, the JBL STX835 can deliver amazing sound clarity at high SPL's. The STX835's 60 degree by 40 degree mid and high-frequency waveguides allows two speaker cabinets to be splayed for wide angle coverage.
CMCD Cone Midrange Compression Driver
The STX835 features JBL's patented CMCD Cone Midrange Compression Driver technology that provides very low mid-range distortion, increased sensitivity, extended bandwidth and improved phase coherence. Coupled to the CMCD is JBL's Progressive Transition (PT) waveguide providing optimal array ability and predictable acoustic performance in real world applications.
Bi-Amp or Full-Range Operation
The STX835 three-way speaker may be operated full-range or bi-amplified. The selection is made by means of a high-current, recessed switch mounted on the input plate. The same switch arrangement is used on the subwoofer to select +/-1 or +/-2 operation.
JBL STX800 Series is compatible with Crown Audio VRack, with V5 Level processing, ensuring that the STX835 enclosure is optimally powered and processed. There is no need for laborious rack building, no chance that a component might be improperly connected, and a dramatically lower chance of connection failure. VRack also ensures compatibility when integrating STX Series enclosures with a VTX Line Array system.
JBL HiQnet Performance Manager Software
The JBL STX835 speaker integrates with JBL HiQnet Performance Manager which guides the system design, configuration and control process in a user friendly fashion much like a simple step-by-step wizard. And since Performance Manager is compatible with VTX Line Array systems, integrating STX JBL cabs is managed in an efficient and intelligent fashion. All test, tuning and calibration control interfaces are embedded eliminating the need to design control panels and the dedicated show mode provides all the monitoring and control needed to run a live performance.
All full range STX800 enclosures (except the STX812M monitor) include multiple M10 rigging points for fast, safe and secure suspension.
- 15 in. Vented Gap Cooling low-frequency driver for extended low-frequency output
- CMCD Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherence
- 60x 40 degrees coverage
- Bi-amplified or full-range passive operation
- Rugged DuraFlex coated enclosures sized to be truck pack friendly
- 14-Gauge steel grille lined with acoustically transparent cloth
