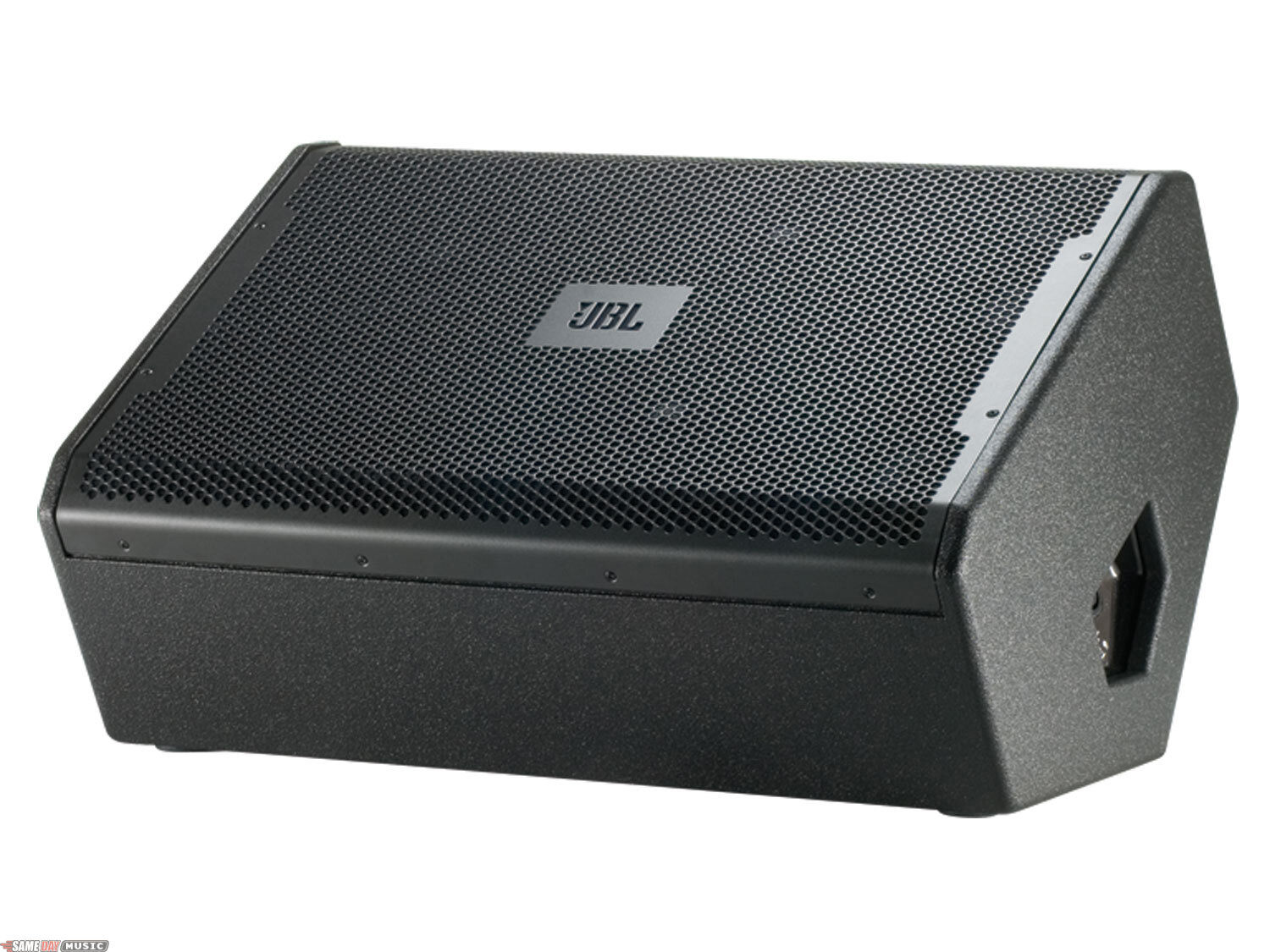

JBL VRX915M 2-Way Stage Monitor (800 Watts, 1x15 in.)

Email This Page

50 x 90 degree nominal coverage. Bi-amplified or full-range passive operation. 8 Ohms impedance.

This product has been discontinued or is no longer sold by SameDayMusic.

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

FIND SIMILAR PRODUCTS

JBL VRX915M 2-Way Stage Monitor (800 Watts, 1x15 in.) Product Description

Same Day Music is an
authorized JBL dealer

The VRX915M is a dedicated, compact and lightweight 15 inch two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL's latest neodymium-magnet transducers.

Features
Compact and low-profile for minimal obstruction of audience sightlines

50 x 90 degree nominal coverage

Bi-amplified or full-range passive operation

Differential Drive(R) woofer with neodymium magnet for high power capacity and very light weight

4 in. (voice coil) diameter compression driver with neodymium magnet

JBL's VERTEC(R) Series Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VERTEC, the VRX900 Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers. JBL's VRX900 Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package

Same Day Music is an authorized dealer of JBL products.

JBL VRX915M Technical Description

Power Rating: 800 W / 1600 W / 3200W

Frequency Range: 60 Hz - 20 kHz

Dimensions (H x W x D): 629 mm x 432 mm x 324 mm (375 mm stage height) 24.75 in x 17 in x 12.75 in (14.75" stage height)

Frequency Response: 70 Hz - 20 kHz

Coverage Pattern: 50 x 90 degrees nominal

Crossover Modes: Passive/Bi-amp

Crossover Frequency: 1.1 kHz

System Maximum SPL: 127 dB SPL continuous (133 dB SPL peak)

System Sensitivity (1w @ 1m): 98 dB SPL

LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive(R) woofer 8 Ohms

HF Driver: 1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm (1.5 inch) exit, neodymium magnet compression driver 8 Ohms

Nominal Impedance: 8 ohms

Active Tunings: Tunings available at www.jblpro.com

Enclosure: Symmetrical stage monitor, 15/18 mm, plywood

Finish: Black DuraFlex(TM) finish

Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing

Input Connectors: Neutrik(R) Speakon(R) NL-4 (x2), one on each end

Net Weight: 21 kg (46.0 lb)

Same Day Music is an authorized dealer of JBL products.
