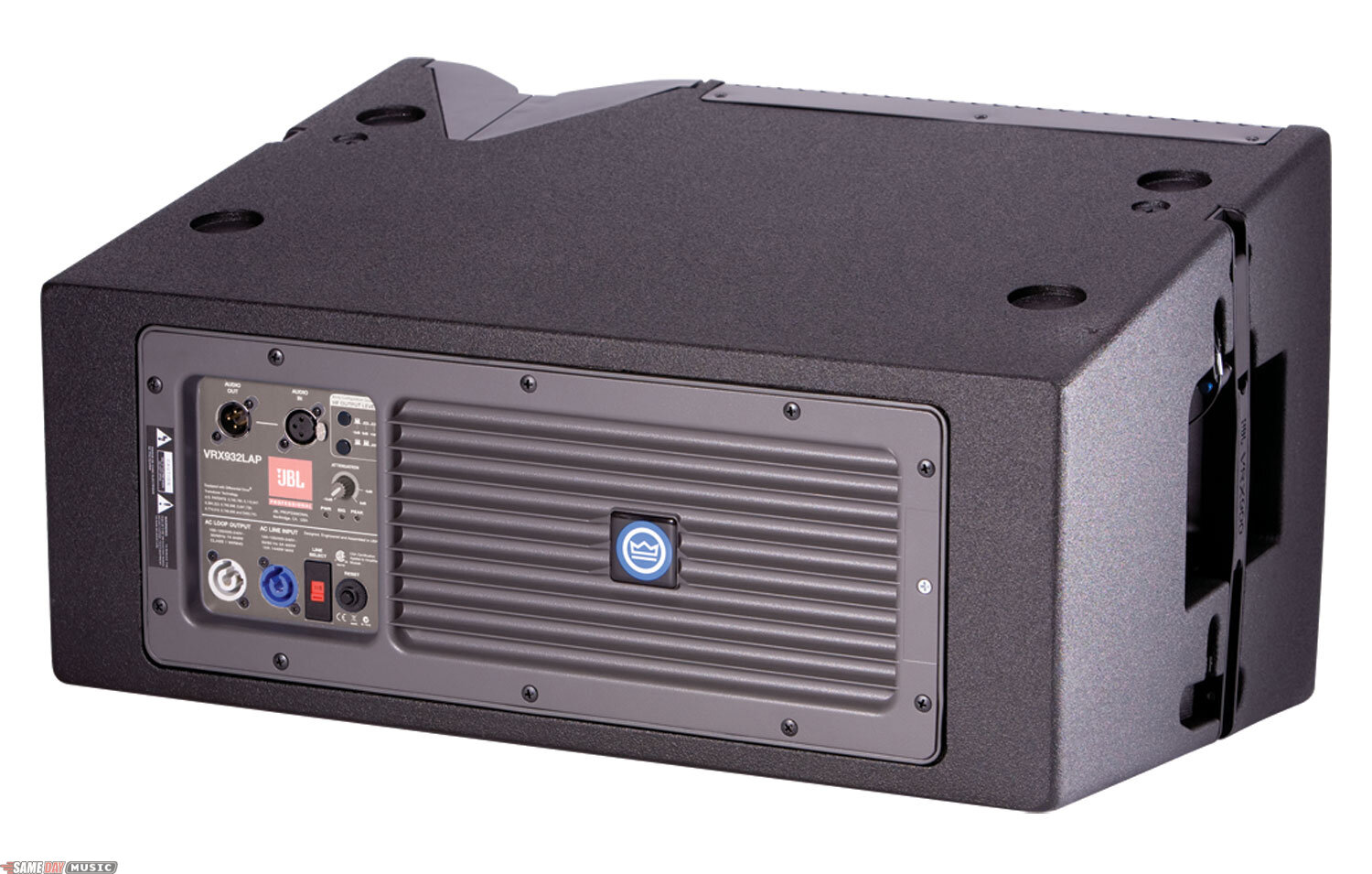

JBL VRX932LAP 2-Way Powered Line Array Loudspeaker (875 Watts, 1x12, 3x1.5 in.)

    Built-in JBL Drivepack DPC-2 amplifier module designed by Crown provides up to 1750 watts of peak power.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (744-7736) with service code 76TQMXL

    Web Item #JBLVRX932LAP

    MORE RESOURCES

    Product Documents: Manual Specifications Sheet Brochure
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    $2,699
    SpeedPlay:
    2 payments of $1,349.50
    Seen a lower price?

    • Ground:
    • 2 Day: $30
    • Overnight: $102

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options | Institutional Sales
    We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Product Description

    The VRX932LAP is a powered, lightweight, compact 12 inch two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

    Features
    Built-in JBL Drivepack(R) DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.

    JBL's exclusive neodymium magned Differential Drive(R) woofer for high-power capacity and light-weight.

    VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.

    Constant Curvature waveguide for unprecedented array coherence.

    Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.

    Array Configuration Selector permist "array shading".

    JBL's VERTEC(R) Series Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VERTEC, the VRX900 Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers. JBL's VRX900 Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package.

    Technical Description

    Power Rating: 1750 Watts Peak 875 Watts Continuous

    Frequency Range: 57 Hz - 20 kHz (-10 dB)

    Dimensions (H x W x D): 349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in)

    Frequency Response: 75 Hz - 20 Hz (+/-3db)

    Maximum Peak Output: 136 dB SPL at 1m

    Coverage Pattern: 100 x 15 nominal

    DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance): LF: 750 Watts, HF: 125 Watts

    DPC-2 Output Sectoin: LF: Dual-Bridged Technology(TM), Class D

    Autio Input Connector: XLR with loop through

    LF Driver: 1 x JBL 2262FF 305 mm (12 in) neodymium magnet

    HF Driver: 3 x JBL 2408J, 38 mm (1.5 in)

    User Controls: Input Attenuator (0-16 dB)

    Signal Processings: DSP based, resident in Input Module

    AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60 Hz

    AC Input Connector: Neutrik PowerCon (NAC 3MPA)

    AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)

    AC Current Requirements: 6A per system at 120V, 3A per system at 240V

    Enclosure: 25/15 mm, 11-ply birch plywood

    Suspension / Mounting: Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting

    Finish: Black DuraFlex(TM) finish

    Grille: Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam

    Net Weight: 24 kg (52 lb)

    Optional Accessories: VRX-AF: Suspension array frame

    JBL VRX932LAP 2-Way Powered Line Array Loudspeaker (875 Watts, 1x12, 3x1.5 in.) Reviews
