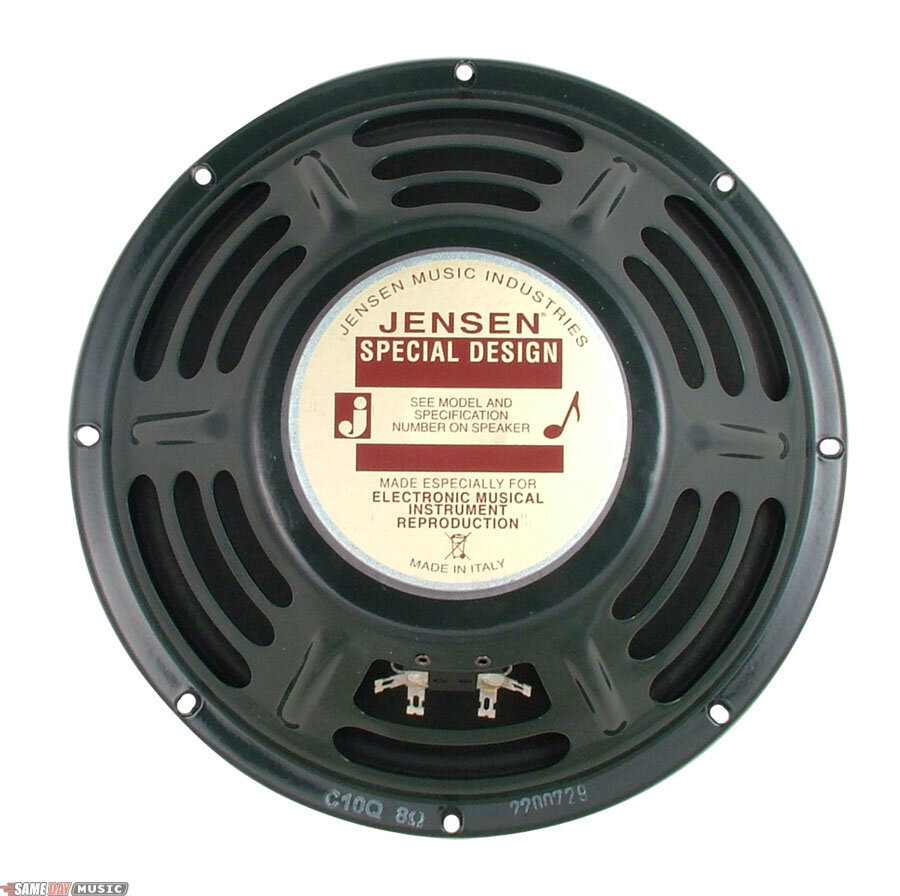

The C10Q offers straightforward tone with mid-frequency bite. When presented with overdrive distortion, it can sound edgy.
General Characteristics
Nominal Overall Diameter: 259 mm, 10 in
Nominal Voice Coil Diameter: 32 mm, 1.25 in
Magnet Weight: 426 g, 15 oz
Overall Weight: 3.65 lbs
Flux Density: 0.92 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 6.0 Ohm
Resonance Frequency fS: 96.0 Hz
Mechanical Q Factor QMS: 11.57
Electrical Q Factor QES: 1.34
Total Q Factor QTS: 1.20
Mechanical Moving Mass MMS: 16.6 g
Mechanical Compliance CMS: 168 um/N
Force Factor BxL: 6.68 Wb/m
Equivalent Acoustic Volume VAS: 25.7 lt.
Maximum Linear Displacement XMAX: 1.5 mm
Reference Efficiency nO: 1.61 %
Diaphragm Area SD: 330.0 cm2
Losses Electrical Resistance RES: 52 Ohm
Voice Coil Inductance @ 1kHz LE: 0.62 mH
Constructive Characteristics
Magnet: Ferrite
Voice Coil Winding: Copper
Voice Coil Former: Epotex
Cone: Paper
Surround: Integrated Paper
Dust Dome: Solid Paper
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 35 W
Musical Power: 70 W
Sensitivity@1W,1m: 95.2 dB
