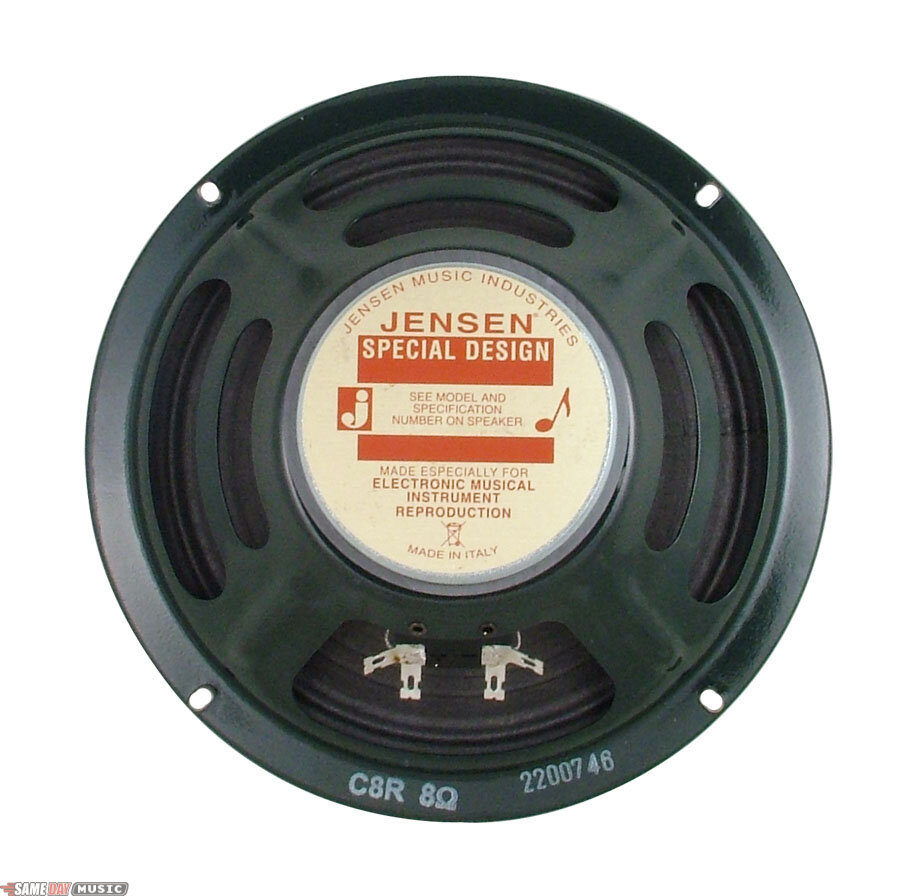

The C8R has a crystal clear tone with brightly shining highs. It responds to overdrive distortion with a bright fuzz lead voice.
General Characteristics
Nominal Overall Diameter: 207 mm 8 in
Nominal Voice Coil Diameter: 25 mm 1 in
Magnet Weight: 280 g 10 oz
Overall Weight: 2.20 lbs
Flux Density: 1.0 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 7.0 Ohm
Resonance Frequency fS: 125.0 Hz
Mechanical Q Factor QMS: 11.61
Electrical Q Factor QES: 2.21
Total Q Factor QTS: 1.86
Mechanical Moving Mass MMS: 8.7 g
Mechanical Compliance CMS: 182 um/N
Force Factor BxL: 4.69 Wb/m
Equivalent Acoustic Volume VAS: 11.7 lt.
Maximum Linear Displacement XMAX: 1.0 mm
Reference Efficiency nO: 1.03 %
Diaphragm Area SD: 213.8 cm2
Losses Electrical Resistance RES: 37 Ohm
Voice Coil Inductance @ 1kHz LE: 0.43 mH
Constructive Characteristics
Magnet: Ferrite
Voice Coil: Winding Copper
Voice Coil: Former Kapton
Cone: Paper
Surround: Integrated Paper
Dust Dome: Treated Cloth
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 25 W
Musical Power: 50 W
Sensitivity@1W,1m: 92.7 dB
