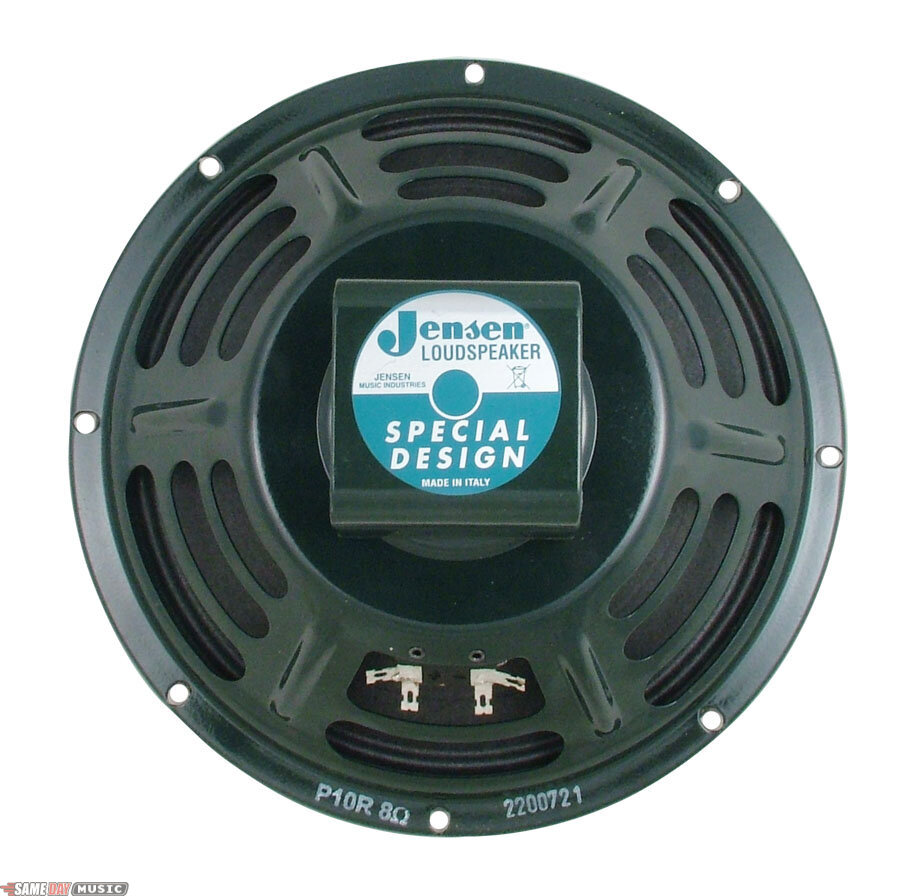

The P10R has a rich, warm tone. In addition, it accentuates the higher frequencies in sparkling detail.
General Characteristics
Nominal Overall Diameter: 259 mm, 10 in
Nominal Voice Coil Diameter: 25 mm, 1 in
Magnet Weight: 200 g, 7.0 oz
Overall Weight: 3.15 lbs
Flux Density: .96 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 6.70 Ohm
Resonance Frequency fS: 97.0 Hz
Mechanical Q Factor QMS: 23.55
Electrical Q Factor QES: 1.60
Total Q Factor QTS: 1.50
Mechanical Moving Mass MMS: 13.1 g
Mechanical Compliance CMS: 207 um/N
Force Factor BxL 5.86: Wb/m
Equivalent Acoustic Volume VAS: 31.6 lt.
Maximum Linear Displacement XMAX: 0.8 mm
Reference Efficiency nO: 1.7 %
Diaphragm Area SD: 330.0 cm2
Losses Electrical Resistance RES: 102 Ohm
Voice Coil Inductance @ 1kHz LE: 0.54 mH
Constructive Characteristics
Magnet: AlNiCo
Voice Coil: Winding Copper
Voice Coil: Former Kapton
Cone: Paper
Surround: Treated Cloth
Dust: Dome Felt
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 25 W
Musical Power 50 W
Sensitivity@1W,1m 95.0 dB
