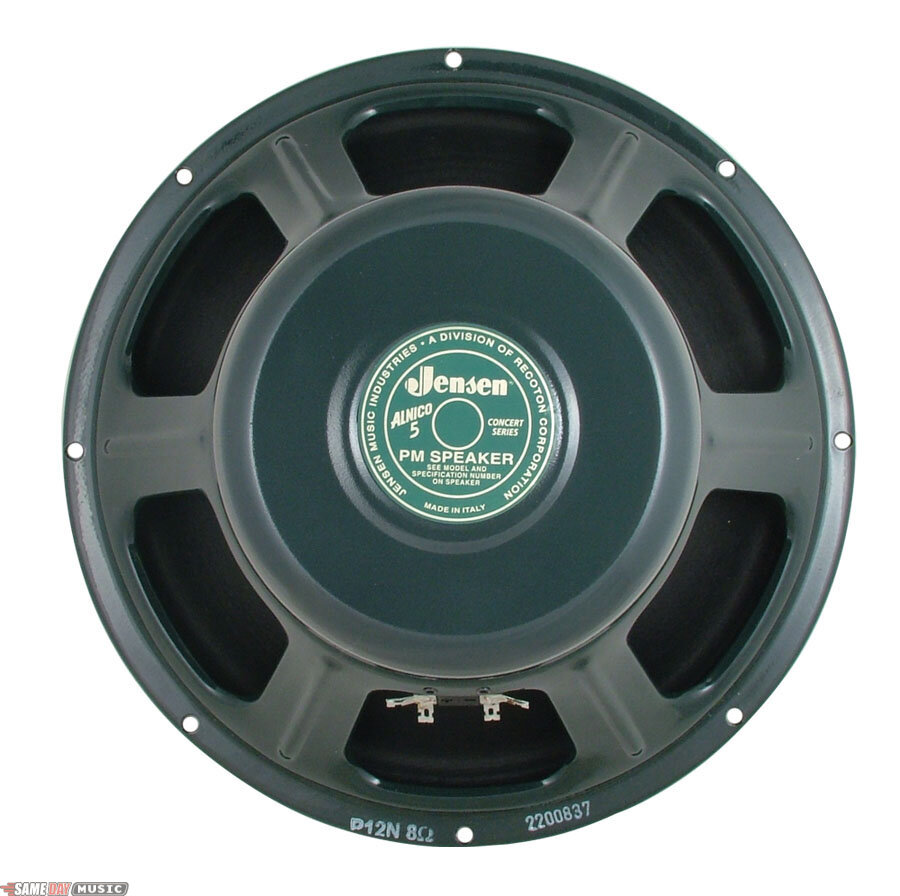

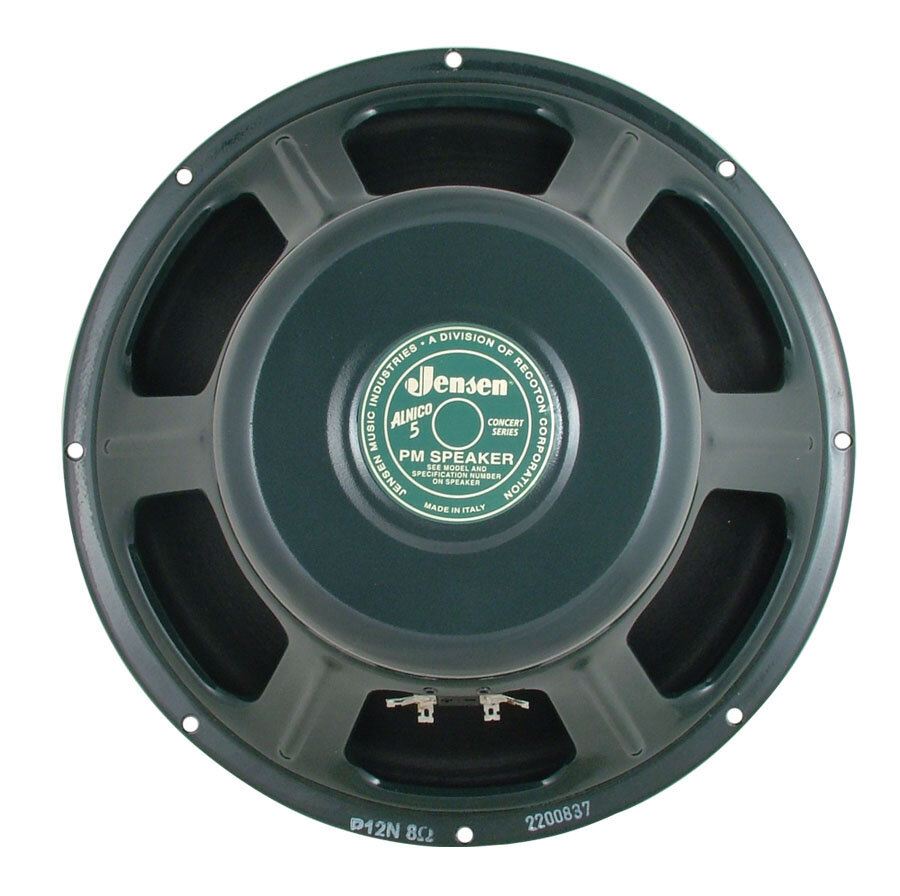

The Jensen P12N has a very warm and full bodied tone with powerful mid-bite and sparkling highs. When presented with overdrive distortion, it displays a bright and colorful crunch.
General Characteristics
Nominal Overall Diameter: 307 mm, 12 in.
Nominal Voice Coil Diameter: 38 mm, 1.5 in.
Magnet Weight: 826 g, 29 oz.
Overall Weight: 6.80 lbs.
Flux Density: 1.26 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 6.20 Ohm
Resonance Frequency fS: 90.0 Hz
Mechanical Q Factor QMS: 5.72
Electrical Q Factor QES: 0.82
Total Q Factor QTS: 0.72
Mechanical Moving Mass MMS: 26.7 g
Mechanical Compliance CMS: 119 um/N
Force Factor BxL: 10.64 Wb/m
Equivalent Acoustic Volume VAS: 40.2 lt.
Maximum Linear Displacement XMAX: 1.0 mm
Reference Efficiency nO: 3.4 %
Diaphragm Area SD: 490.8 cm2
Losses Electrical Resistance RES: 43.0 Ohm
Voice Coil Inductance @ 1kHz LE: 0.87 mH
Constructive Characteristics
Magnet: AlNiCo
Voice Coil: Winding Copper
Voice Coil: Former Kapton
Cone: Paper
Surround: Integrated Paper
Dust Dome: Solid Paper
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 50 W
Musical Power: 100 W
Sensitivity@1W,1m 98.4 dB
