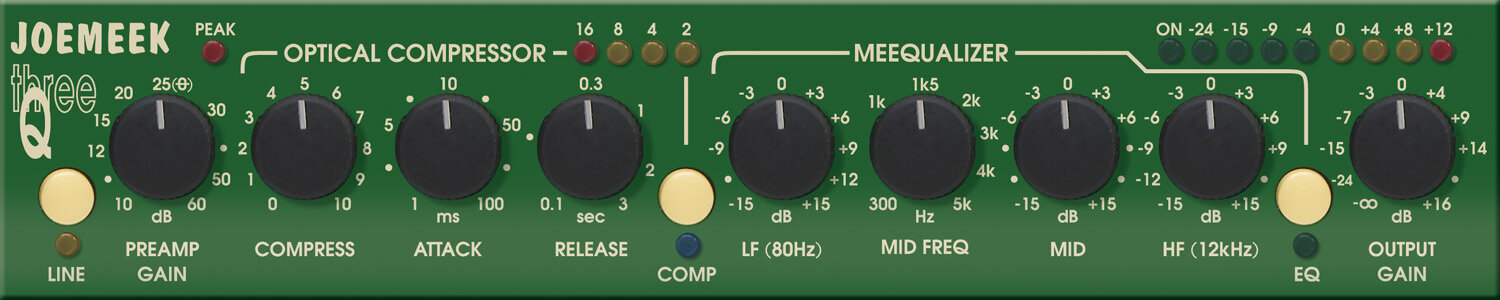

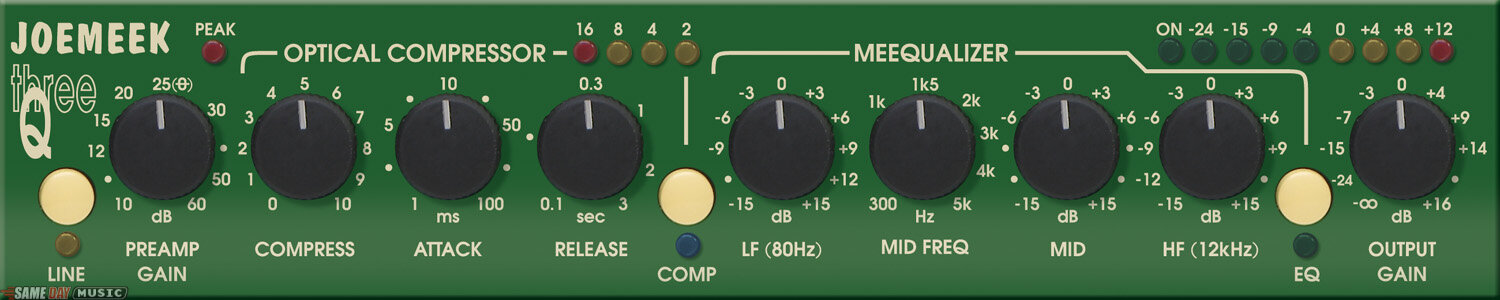

Joemeek ThreeQ Pro Channel Strip
Microphone preamp, compressor, and equalizer.
Product rated 9.0 out of 10 (1 rating)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Rear
PRODUCT DESCRIPTION
The Joemeek threeQ is like having one channel of a professional recording studio in a small box. It takes a microphone or instrument, amplifies it, compresses and equalizes it ready to be recorded. Simple to use yet extremely powerful, the threeQ will bring out the best in any microphone or instrument and give the gloss of a professional studio production to all your performances. As well as recording it will also be found useful for live work.
TECHNICAL DESCRIPTION
Input Impedances:
Mic: 1.2k ohm
Line: 20k ohm
Preamp Overall Gain: 0dB to 60dB
Common Mode Rejection: 70dB
Equivalent Input Noise: -128.5dBu (unweighted)
Distortion: 0.001% (below Compressor threshold)
Frequency Response: 10Hz to 70kHz (-3dB)
Maximum Input Before Clipping: Mic: +19.5dBu; Line: +44.5dBu
Headroom Before Clipping: +19.5dBu
Compressor Threshold: -6dBu to +20dBu (variable)
Compressor Ratio: 5:1 (typical)
Compressor Attack Time: 1 msec to 100 msec (adaptive)
Compressor Release Time: 0.1 sec to 3 sec (adaptive)
Nominal Output Levels: +4dBu/-10dBv
Output Impedance: 75 ohms
Output Level Switch: 12dB attenuation
Noise Floor: -85dBu (typical, with ~40dB mic gain)
VU Meter: 8-segment bargraph
Power Supply: 12V ac mains adapter
Power Consumption: 12W
Mechanical: 220W x 44H x 180D (overall)
Weight: 1 kilo
EQ Boost and Cut: +/-15dB (zero phase-shift bell response)
LF Frequency 80Hz fixed
MID Frequency: 300Hz to 5kHz variable
HF Frequency: 12kHz fixed
Mic: 1.2k ohm
Line: 20k ohm
Preamp Overall Gain: 0dB to 60dB
Common Mode Rejection: 70dB
Equivalent Input Noise: -128.5dBu (unweighted)
Distortion: 0.001% (below Compressor threshold)
Frequency Response: 10Hz to 70kHz (-3dB)
Maximum Input Before Clipping: Mic: +19.5dBu; Line: +44.5dBu
Headroom Before Clipping: +19.5dBu
Compressor Threshold: -6dBu to +20dBu (variable)
Compressor Ratio: 5:1 (typical)
Compressor Attack Time: 1 msec to 100 msec (adaptive)
Compressor Release Time: 0.1 sec to 3 sec (adaptive)
Nominal Output Levels: +4dBu/-10dBv
Output Impedance: 75 ohms
Output Level Switch: 12dB attenuation
Noise Floor: -85dBu (typical, with ~40dB mic gain)
VU Meter: 8-segment bargraph
Power Supply: 12V ac mains adapter
Power Consumption: 12W
Mechanical: 220W x 44H x 180D (overall)
Weight: 1 kilo
EQ Boost and Cut: +/-15dB (zero phase-shift bell response)
LF Frequency 80Hz fixed
MID Frequency: 300Hz to 5kHz variable
HF Frequency: 12kHz fixed
