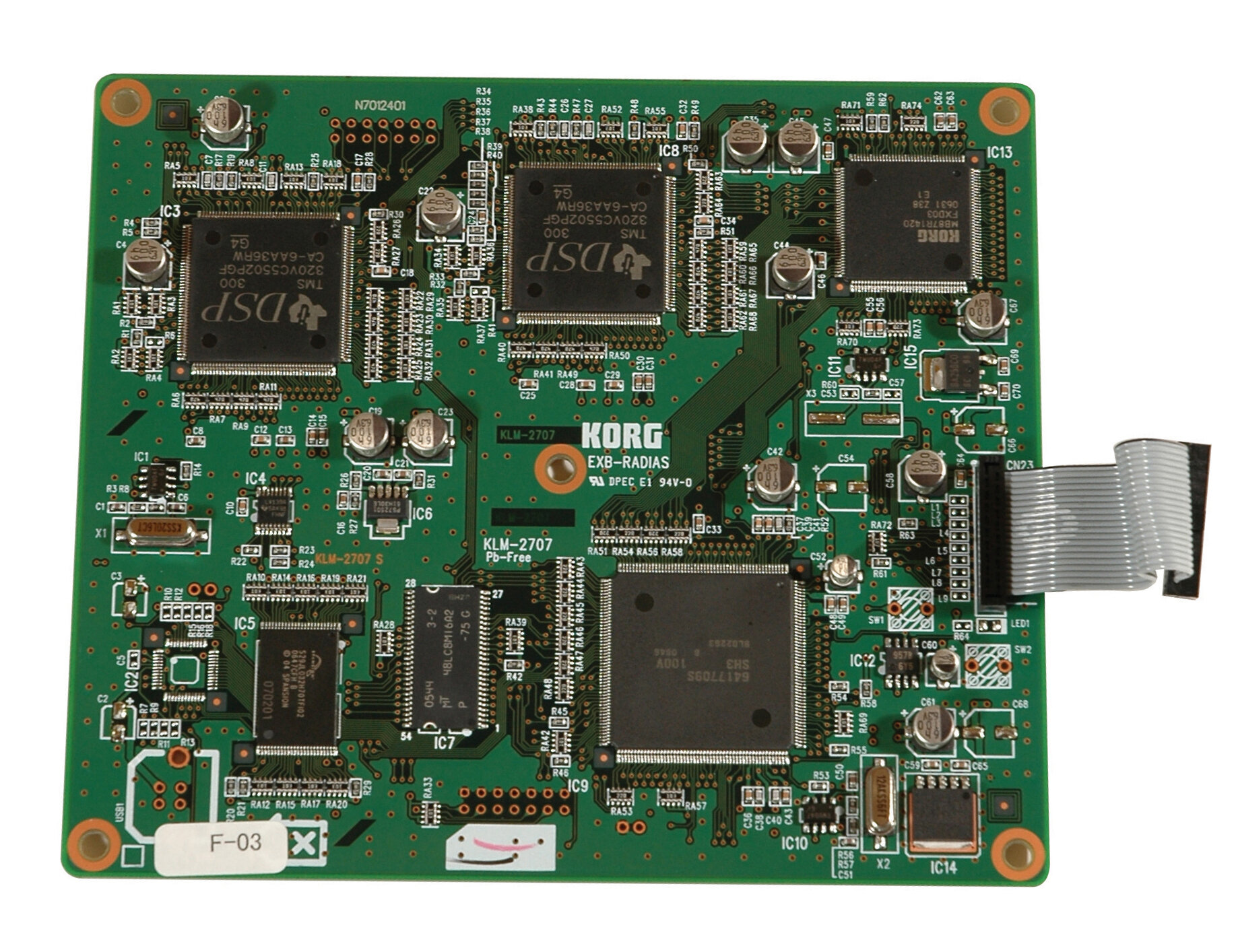

Korg M3EXBRADIAS EXB Radias MMT Expansion Board for M3 Keyboards

You can add an internal RADIAS analog modeling synthesizer sound generator board (4 part multi-timbral; one timbre per Program, up to 4 Programs can be used simultaneously in Combi and Sequencer modes), with on-screen integration of all its parameters and full integration with the M3's effects, control surface and KARMA functionality. An EXB- RADIAS Program is comprised of one timbre, with up to 4 RADIAS Programs able to be assigned to different timbres in Combi Mode or on separate tracks in Seq mode.

This powerful MMT-based (Multiple Modeling Technology) synth engine features dual oscillators which combine to offer analog-modeled waves, DWGS (PCM) waves, noise, ring mod and more. Waveform modulation, Variable Phase Modulation (VPM), Unison voice thickening, PWM and cross-mod expand the sonic palette.

Dual Filters can run in series, parallel, or side by side (individual for each oscillator). Filter 1 features a resonant filter design covering 24 dB low pass, 12 dB low pass plus 12 dB high and band pass, with continuously variable morphing between these states. Filter 2 offers 12dB versions of the low, high and band pass modes, plus a unique comb filter.

Two LFOs and three ADSR envelopes shape the sound and add cyclic motion to nearly any voice parameter. Three 16-step Modulation Sequencers provide discrete values to a modulation parameter that change over time, either in stepped or smooth motion, and can loop over and over.

Internal or external audio can be run through the EXB-RADIAS to be gated and filtered using the internal synthesis and effects. Drive adds analog warmth, Punch brings increased definition to the attack of a sound, and 12-types of Wave Shaping provides dramatic timbral shaping - even offering virtual pick-up response.

The EXB-RADIAS offers the same vocoder as the RADIAS, offering 16 bands with individual control over level and panning. Formant Motion records the formant of a sung or spoken phrase so it can be recreated anytime.

And of course, all of KARMA's generative features can be used with the RADIAS to provide even more options, including RADIAS Wave-Sequencing.
