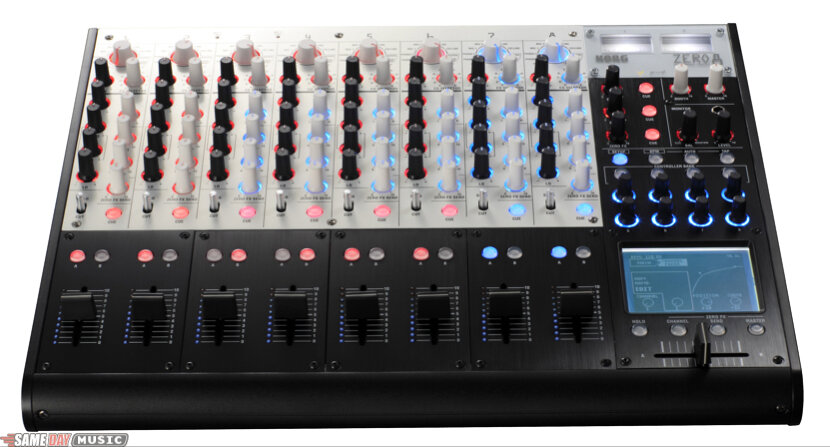

Korg Zero8 8-Channel DJ Mixer Firewire Controller
8-channel interface/control surface. With KAOSS FX LCD touch screen and effects.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Stanton 500.V3 Spherical Cartridge
- from $30
ADDITIONAL VIEWS:
Main
Rear
Top
Slant
PRODUCT DESCRIPTION
Music is created in a dynamic process, where the artist works in a fluid fashion following their inspiration freely. The tools of the stage/studio have become more like instruments, to be played and manipulated in realtime as part of this creative process. Mixing, control, and effects all are part of the performance, and all are at the core of this revolutionary new instrument. Zero Live Control Mixer, you have just met the future.
Zero Live Control Mixer is an all-in-one “core station” designed for live performance artists, remix producers, and serious computer musicians providing a digital mixer, audio I/O, MIDI controller, and effect processor all in a single unit. Each channel can be switched between sources such as a turntable, CD player, microphone, computer, instrument, MIDI controller, or MIDI controller + audio to implement a sophisticated live mixing setup with the simplicity of a FireWire connection. This gives you an incredibly powerful and flexible tool designed specifically for live performance and remix production.
Two models are available: ZERO4 is a four-channel version designed for the needs of the modern DJ, and ZERO8 is an eight-channel version covering the needs of advanced laptop musicians, studio remixers and DJs requiring more channels.
Designed for high-quality digital and analog audio
Zero Live Control Mixer delivers truly professional-spec audio. It supports 24-bit 48 kHz high-resolution audio as standard, and can support up to 24-bit 192 kHz audio that’s equivalent to DVD audio fidelity. Along with the digital domain, analog components such as the input/output circuitry and power supply have been designed with painstaking attention to high-quality sound.
The internal ±18 volt power supply design delivers plenty of headroom and excellent audio quality. The mic preamps are an ultra-low impedance design by Peter Watts, a veteran designer of numerous professional mixers throughout his tenure at the Trident Corporation in the UK and as chief designer and vice president for product development at Mackie Designs in the USA. Finally, the power supply is a universal design that does not require an AC adapter, ensuring that the world-traveling professional can get to work immediately, assured of the highest level of performance.
EQ Variety
The EQ Selector is a completely new idea, providing an EQ section with eleven different simulation types. They cover needs ranging from corrective equalization to boldly creative sound-shaping, giving you a variety of EQ responses and curves, filter characteristics, and even isolator modeling that can be switched independently for each channel as needed. The stereo eight-channel Zero8 provides an amazing eight units (independent for each channel).
FireWire control over audio and MIDI
Zero Live Control Mixer contains a FireWire interface that lets you process and mix audio sources digitally, at the same time as performing MIDI control. Since Zero Live Control Mixer contains everything else you need (audio interface, mixer, effect processor, MIDI controller), setup is simple, making it an extremely convenient choice for the mobile computer-based professional.
A full complement of effects
One particular advantage of the ZERO series is its powerful effect system. On the stereo eight-channel Zero8, there’s one Insert effect, one Send effect, and one Master effect. For the Insert effects you can choose from eight effect types, and for the Send/Master effects you can choose from eleven effect types, meeting the demands of any live mix.
Next-generation KAOSS effects
The stereo eight-channel Zero8 uses its touch display as a realtime effect controller like the KAOSS PAD. You can manipulate a variety of effects while watching the graphics on the display, giving you an entirely new sense of control. This touch display can also be used to control MIDI and other settings simply by touching them, making it very easy to edit the settings.
A complete MIDI control surface
By using the dedicated "Zero Edit" software you can freely assign MIDI messages to the faders, knobs, push-type encoders, buttons, toggle switches, and X-Y pad.
Zero8 Controller Bank
This allows you to use the abundant hardware on the ZERO Mixers to control soft synths, DAWs, effects processors and much more. Since each channel of the mixer can be assigned to different functions you can be mixing the audio from your computer with one channel while adjusting MIDI parameters with another.
Zero Live Control Mixer is an all-in-one “core station” designed for live performance artists, remix producers, and serious computer musicians providing a digital mixer, audio I/O, MIDI controller, and effect processor all in a single unit. Each channel can be switched between sources such as a turntable, CD player, microphone, computer, instrument, MIDI controller, or MIDI controller + audio to implement a sophisticated live mixing setup with the simplicity of a FireWire connection. This gives you an incredibly powerful and flexible tool designed specifically for live performance and remix production.
Two models are available: ZERO4 is a four-channel version designed for the needs of the modern DJ, and ZERO8 is an eight-channel version covering the needs of advanced laptop musicians, studio remixers and DJs requiring more channels.
Designed for high-quality digital and analog audio
Zero Live Control Mixer delivers truly professional-spec audio. It supports 24-bit 48 kHz high-resolution audio as standard, and can support up to 24-bit 192 kHz audio that’s equivalent to DVD audio fidelity. Along with the digital domain, analog components such as the input/output circuitry and power supply have been designed with painstaking attention to high-quality sound.
The internal ±18 volt power supply design delivers plenty of headroom and excellent audio quality. The mic preamps are an ultra-low impedance design by Peter Watts, a veteran designer of numerous professional mixers throughout his tenure at the Trident Corporation in the UK and as chief designer and vice president for product development at Mackie Designs in the USA. Finally, the power supply is a universal design that does not require an AC adapter, ensuring that the world-traveling professional can get to work immediately, assured of the highest level of performance.
EQ Variety
The EQ Selector is a completely new idea, providing an EQ section with eleven different simulation types. They cover needs ranging from corrective equalization to boldly creative sound-shaping, giving you a variety of EQ responses and curves, filter characteristics, and even isolator modeling that can be switched independently for each channel as needed. The stereo eight-channel Zero8 provides an amazing eight units (independent for each channel).
FireWire control over audio and MIDI
Zero Live Control Mixer contains a FireWire interface that lets you process and mix audio sources digitally, at the same time as performing MIDI control. Since Zero Live Control Mixer contains everything else you need (audio interface, mixer, effect processor, MIDI controller), setup is simple, making it an extremely convenient choice for the mobile computer-based professional.
A full complement of effects
One particular advantage of the ZERO series is its powerful effect system. On the stereo eight-channel Zero8, there’s one Insert effect, one Send effect, and one Master effect. For the Insert effects you can choose from eight effect types, and for the Send/Master effects you can choose from eleven effect types, meeting the demands of any live mix.
Next-generation KAOSS effects
The stereo eight-channel Zero8 uses its touch display as a realtime effect controller like the KAOSS PAD. You can manipulate a variety of effects while watching the graphics on the display, giving you an entirely new sense of control. This touch display can also be used to control MIDI and other settings simply by touching them, making it very easy to edit the settings.
A complete MIDI control surface
By using the dedicated "Zero Edit" software you can freely assign MIDI messages to the faders, knobs, push-type encoders, buttons, toggle switches, and X-Y pad.
Zero8 Controller Bank
This allows you to use the abundant hardware on the ZERO Mixers to control soft synths, DAWs, effects processors and much more. Since each channel of the mixer can be assigned to different functions you can be mixing the audio from your computer with one channel while adjusting MIDI parameters with another.
TECHNICAL DESCRIPTION
Frequency Response:
10 Hz ~ 20 kHz +/-1 dB, -2dB @ fs 44.1 kHz
10 Hz ~ 21 kHz +/-1 dB @ fs 48 kHz
10 Hz ~ 40 kHz +/-1 dB @ fs 96 kHz
15 Hz ~ 50 kHz +/-1 dB @ fs 192 kHz
S/N: 93 dB (typical) @ IHF-A
THD+N: 0.02 % (typical) 20 Hz ~ 20 kHz
A/D Conversion: 24-bit, 64-time oversampling
D/A Conversion: 24-bit, 128-time oversampling
Sampling Frequency (fs): internal 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Input 1-8(Line, CD/Line)
Connectors: 1/4" TRS phone jacks (balanced) L/R, RCA jacks L/R
Input Impedance: 10 k Ohms
Nominal Level: TRS: +4 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
RCA: -10 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level: TRS: +22 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
RCA: +8 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dN)
Source Impedance: 600 ohms
Phono 1-3
Connectors: RCA jacks L/R
Input Impedance: 50 k Ohms
Nominal Level: -44 dBu@ 1kHz, GAIN = 0 dB (GAIN = -infinity ~ +6 dB), RIAA compliant
Mic 1, 2 Input Connectors
XLR-3-31 type (+48 V phantom power, with switch)
1/4 in. TRS phone jacks (balanced)
Input Impedance: 3 k ohms/XLR, 5 k ohms/TRS
Nominal Level: Hi: -60 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), Low: -40 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Maximum Level: Hi: -42 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), Low: -22 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Source Impedance: 600 Ohms
Guitar Input Connector
1/4 in. phone jack (unbalanced)
Input Impedance: 1 M Ohm
Nominal Level: -6 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level: +12 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Master Output
Connectors: XLR-3-32 type L/R
Output Impedance: 150 Ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10 k ohms
Booth Output
Connectors: 1/4 in. TRS phone jacks (balanced) L/R
Output Impedance: 150 ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10 k Ohms
Ext Send 1,2
Connectors: RCA jacks L/R
Output Impedance: 150 ohms
Nominal Level: -10dBu
Maximum Level: +8 dBu
Load Impedance: >10 k ohms
Ext Return 1,2
Connectors: 1/4 in. TRS phone jacks (balanced) L/R
Output Impedance: 10 k ohms
Nominal Level: +4dBu
Maximum Level: +22 dBu
Load Impedance: 600 ohms
Phones Output
Connector: 1/4 in. stereo phone jack
Output Impedance: 100 ohms
Maximum Level: 80 mW + 80 mW @ 32 ohms
S/PDIF Output
Connector: coaxial
Format: 24-bit S/PDIF (IEC60958)
Firewire Connector: IEEE 1394 6-pin connector x2
Format: IEEE1394a
MIDI Connector: IN, OUT
General
Display: 160 x 104 pixel, LCD with backlight and touch panel
Power Supply: AC Local Voltage
Power Consumption: 52 Watts
Included items: Power cable, CD-ROM
Dimensions (WxHxD): 17.72 x 4.92 x 14.61 in. (450 x 125 x 371 mm)
Weight: 16.09lbs/7.3kg
10 Hz ~ 20 kHz +/-1 dB, -2dB @ fs 44.1 kHz
10 Hz ~ 21 kHz +/-1 dB @ fs 48 kHz
10 Hz ~ 40 kHz +/-1 dB @ fs 96 kHz
15 Hz ~ 50 kHz +/-1 dB @ fs 192 kHz
S/N: 93 dB (typical) @ IHF-A
THD+N: 0.02 % (typical) 20 Hz ~ 20 kHz
A/D Conversion: 24-bit, 64-time oversampling
D/A Conversion: 24-bit, 128-time oversampling
Sampling Frequency (fs): internal 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Input 1-8(Line, CD/Line)
Connectors: 1/4" TRS phone jacks (balanced) L/R, RCA jacks L/R
Input Impedance: 10 k Ohms
Nominal Level: TRS: +4 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
RCA: -10 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level: TRS: +22 dBu@ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
RCA: +8 dBu@ GAIN = 0 dB (GAIN = -infinity ~ +6 dN)
Source Impedance: 600 ohms
Phono 1-3
Connectors: RCA jacks L/R
Input Impedance: 50 k Ohms
Nominal Level: -44 dBu@ 1kHz, GAIN = 0 dB (GAIN = -infinity ~ +6 dB), RIAA compliant
Mic 1, 2 Input Connectors
XLR-3-31 type (+48 V phantom power, with switch)
1/4 in. TRS phone jacks (balanced)
Input Impedance: 3 k ohms/XLR, 5 k ohms/TRS
Nominal Level: Hi: -60 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), Low: -40 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Maximum Level: Hi: -42 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB), Low: -22 dBu @ GAIN = 0 dB (GAIN = -infinity ~ 0 dB)
Source Impedance: 600 Ohms
Guitar Input Connector
1/4 in. phone jack (unbalanced)
Input Impedance: 1 M Ohm
Nominal Level: -6 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Maximum Level: +12 dBu @ GAIN = 0 dB (GAIN = -infinity ~ +6 dB)
Master Output
Connectors: XLR-3-32 type L/R
Output Impedance: 150 Ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10 k ohms
Booth Output
Connectors: 1/4 in. TRS phone jacks (balanced) L/R
Output Impedance: 150 ohms
Nominal Level: +4 dBu
Maximum Level: +22 dBu
Load Impedance: >10 k Ohms
Ext Send 1,2
Connectors: RCA jacks L/R
Output Impedance: 150 ohms
Nominal Level: -10dBu
Maximum Level: +8 dBu
Load Impedance: >10 k ohms
Ext Return 1,2
Connectors: 1/4 in. TRS phone jacks (balanced) L/R
Output Impedance: 10 k ohms
Nominal Level: +4dBu
Maximum Level: +22 dBu
Load Impedance: 600 ohms
Phones Output
Connector: 1/4 in. stereo phone jack
Output Impedance: 100 ohms
Maximum Level: 80 mW + 80 mW @ 32 ohms
S/PDIF Output
Connector: coaxial
Format: 24-bit S/PDIF (IEC60958)
Firewire Connector: IEEE 1394 6-pin connector x2
Format: IEEE1394a
MIDI Connector: IN, OUT
General
Display: 160 x 104 pixel, LCD with backlight and touch panel
Power Supply: AC Local Voltage
Power Consumption: 52 Watts
Included items: Power cable, CD-ROM
Dimensions (WxHxD): 17.72 x 4.92 x 14.61 in. (450 x 125 x 371 mm)
Weight: 16.09lbs/7.3kg
CATALOG DESCRIPTION
8 selectable input channels@Hi-Z instrument input@Onboard send/master effects@KAOSS-style X/Y touchpad
