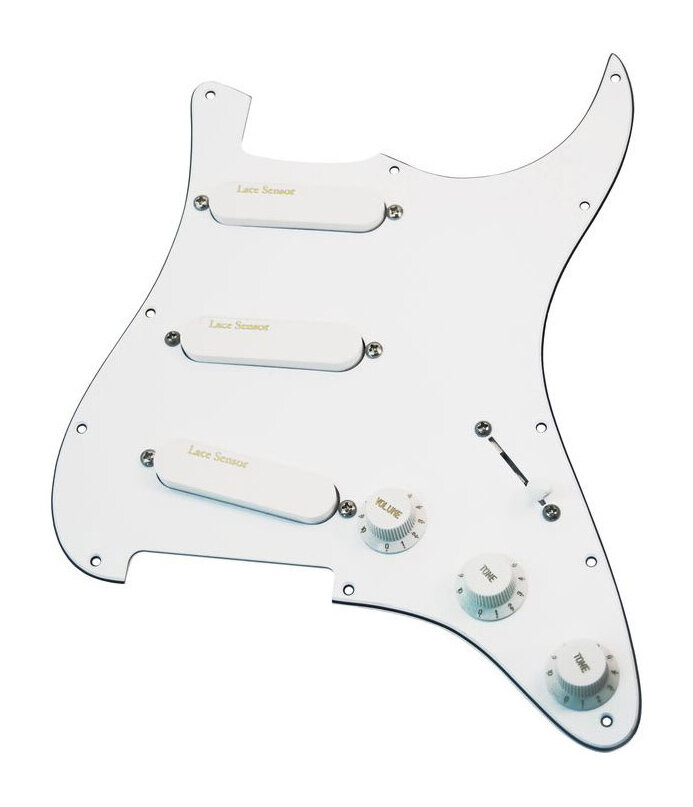

    Lace Sensor Gold Prewired Loaded Pickguard

    Lace Loaded Pickguards are pre-wired with quality components (CTS 250K full size pots, USA-Made switch, NTS Caps) all on a 3-ply pickguard.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Lace Sensor Gold Loaded Pickguard Product Description

    Designed to drop-in to your Strat and connect with only 2 wires, this high output pickup set which offers incredible noise reduction that you'll have to hear (or not hear) to believe! Lace Loaded Pickguards are pre-wired with quality components all on a 3-ply pickguard.

    Crisp top end and bell-like tone, the Lace Sensor Gold pickup uses the latest technology to provide excellent tone for today's players.

    The Lace Sensor Gold has a unique radiant field barrier system that surrounds both the coil and magnets, reducing annoying 60-cycle hum. The patented Lace Micro Combs replace traditional bobbins, yielding a wider tonal range and better string balance than traditional electric guitar pickups.

    Unlike ordinary pickups, the Lace Sensor Gold generates 36 separate magnetic sensing fields that, in the areas where they contact the string, read the strings' vibration. (Regular pickups only generate anywhere from 4 to 12 fields).

    The Lace Sensor Gold's Radiant Field Barriers are metal slides that frame the inner core of the Sensors and perform two functions. The first is to shield the Sensor pickup from outside noise and 60-cycle hum. The second is to produce broader, yet more concentrated, umbrellas of sensing field than standard magnetic pickups.

    Less Noise, More Harmonics

    As compared to standard guitar pickups, the Lace Sensor Gold reads a greater physical area of the string, while picking up less outside interference. This makes the signal-to-noise ratio nothing short of phenomenal for a single coil system. Also, a wider range of harmonic content is read by the Sensor, delivering a more complex tonal response.

    Increased Sustain, Truer Pitch

    Since it operates so efficiently, Lace Sensors can use much lower energy magnets than ordinary pickups, and this in turn brings about a whole new realm of properties. In regular guitar pickups, the magnetic fields are so strong they physically dampen, or drag on, the strings' vibration, Reducing sustain and actually changing the pitch. But in the Lace Sensor Gold, string dampening is virtually nonexistent. This means your sustain is increased dramatically while the string holds its true pitch for the duration of the note.

    Lace includes a three-inch mini data CD that includes all its latest wiring diagrams in color along with Lace's most current pickup and guitar catalogs. Also includes a warranty card and other useful information regarding Lace Music Products.

    Same Day Music is an authorized dealer of Lace Music Products products.

    Lace Sensor Gold Loaded Pickguard Technical Description

    Neck, Middle and Bridge Pickup:
    - Resistance: 5.8k
    - Peak frequency: 3600
    - Inductance: 2.4
