The cutting edge just got sharper

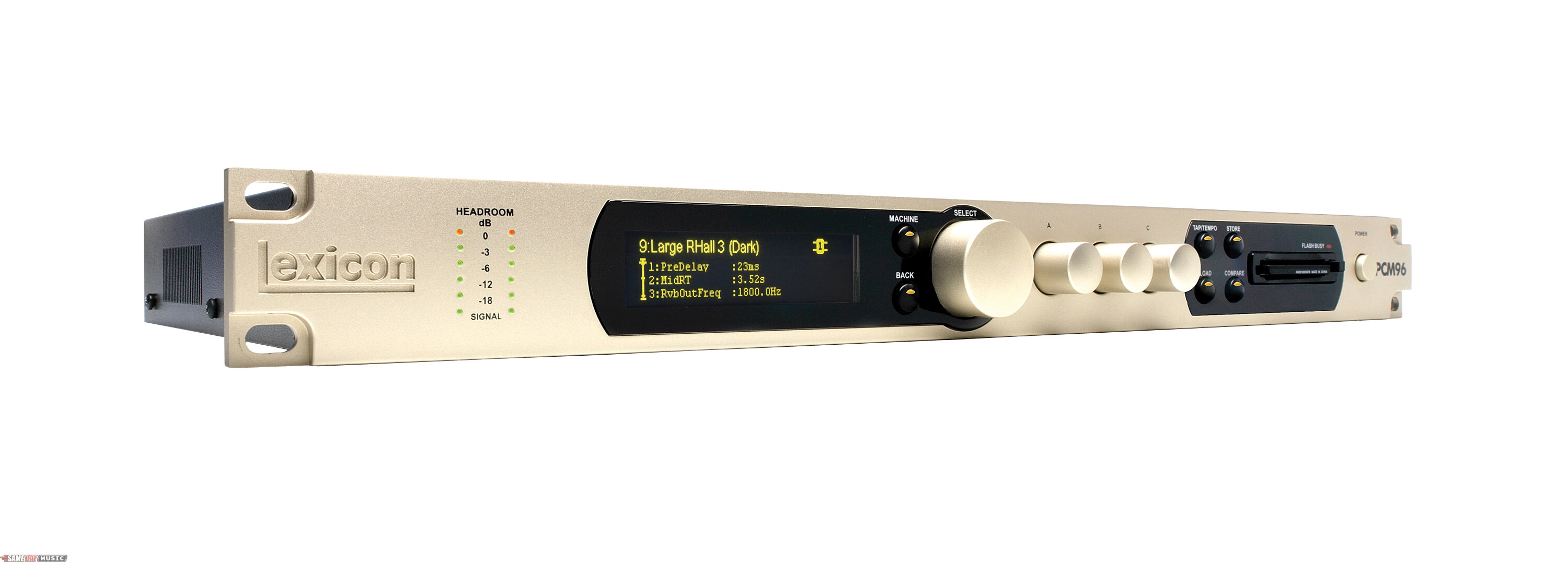

An artful blend of heritage and innovation, the PCM96 Stereo Reverb/Effects Processor delivers 28 new and legendary Lexicon reverbs, delays and modulation effects straight into your DAW.
Appearing for the first time are new Room and Hall algorithms, plus an assortment of new mono reverbs and effects. With decades of legacy products to pull from, the PCM96 also includes the finest collection of factory presets available in a stereo processor - over 1200 and growing - including some recognizable classics from our immense library of sounds.
Features
Two channels XLR analog I/O
Two channels XLR digital AES/EBU I/O
Four channels streaming FireWire
Seamless automation and control via Ethernet or Firewire
32-bit floating point processing
Sample rates up to 96 kHz
The PCM96 gives new capabilities to our traditional reverbs by adding multimode filters at several spots in the audio flow. This allows more exact shaping of the reverb while still maintaining the distinctive Lexicon sound. All reverbs also have an "Infinite" switch that allows the reverb to run forever, a useful feature for creating unusual backgrounds and sound effects.
Lexicon's new Room algorithm provides a more flexible alternative to convolution type reverbs. Reflection patterns can be easily selected, scaled and equalized - all while simultaneously passing audio. They can be instantly reversed or combined with a traditional reverb to extend the decay or bring a stronger sense of "liveness" to the space.
With two channels XLR analog and two channels XLR AES/EBU digital I/O, along with MIDI, Ethernet and Firewire connectivity, the PCM96 easily fits into a variety of recording and live sound environments. In any application, the PCM96 delivers the versatility and sound that is unmistakably Lexicon.
Specifications
Analog Audio Output:
- Connectors: Two XLR balanced (elec.)
- Impedance: 30 Ohms balanced
- Output Level: +4 dBu mode: +20 dBu max. -10 dBu mode: 8.21 dBu max
Digital Input and Output:
- Connectors: XLR I/O
- Format: AES/EBU balanced
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Conversion: 24-bit A/D; 24-bit D/A
Audio Performance:
- Frequency Response: 20Hz - 20kHz +/- .25dB 20Hz - 40kHz +0/-3dB
- HD: <0.002%, 20Hz - 20kHz
- Dynamic Range: D/A: >112dB typical, 20Hz - 20kHz A/D: >112dB typical, 20Hz - 20kHz A/A: >111dB typical, 20Hz - 40kHz
- Crosstalk: -90dB, 20Hz to 40kHz
- Internal Audio DSP: 32/64-bit floating point
Control Interface:
- Memory Cards: Compact Flash Type I Standards
- Format: Supports all size memory cards
- MIDI: In/Thru/Out 5-pin DIN's
- Footswitch: N/A
- Foot Controller: N/A
General:
- Power: 100-240 VAC 50/60Hz, 20 Watts
- Automatic switching: (3-pin IEC connector)
- Size (WxHxD): 19 x 1.75 x 12.5 in. (483 x 45 x 318 mm) Rack mount standard
- Weight: 8.65 lbs (3.93 kg)
- Operating Temp.: 59* to 95*F (15* to 35*C)
- Maximum Humidity: 75% relative humidity max.
System Requirements - Software Version 1.0
Hardware:
- Macintosh Power PC G5 1.8 GHz or any Intel OS 10.4.9, 4.10, 4.11
- Standard 10/100 Ethernet
- Firewire 400 (800 works with adapter)
- 1GB ram
- 150 MB free HD space
- CD Rom drive
Software:
- ProTools LE 7.3.1
- ProTools HD 7.3 and higher
- Logic 8.0
Note
Designed for the modern studio, the PCM96 can function as a control-only insert or FireWire streaming audio plug-in inside Mac RTAS and Audio Units software. (RTAS support provided via Fxpansion Adapter.)
