Line 6 TonePort UX8 USB 2.0 Computer Recording Interface

The TonePort UX8 is the ideal solution for project and pro studios, providing eight simultaneous channels of 24-bit/96 kHz audio over an ultra-fast USB 2.0 connection. In addition, TonePort UX8 delivers the powerful tone-shaping mojo of Line 6's acclaimed GearBox software to any pair of inputs for recording - and processing of unlimited channels for mixing and mastering through the included VST/AU/RTAS plug-in. Professional features, rock-solid construction and top-flight components have never looked-and sounded-so good.

FREE Pod Farm plug-in!
Register your UX8 at www.line6.com and download the Line 6 Monkey update to get your free Pod Farm plug-in.

Same Day Music is an authorized dealer of Line 6 products.

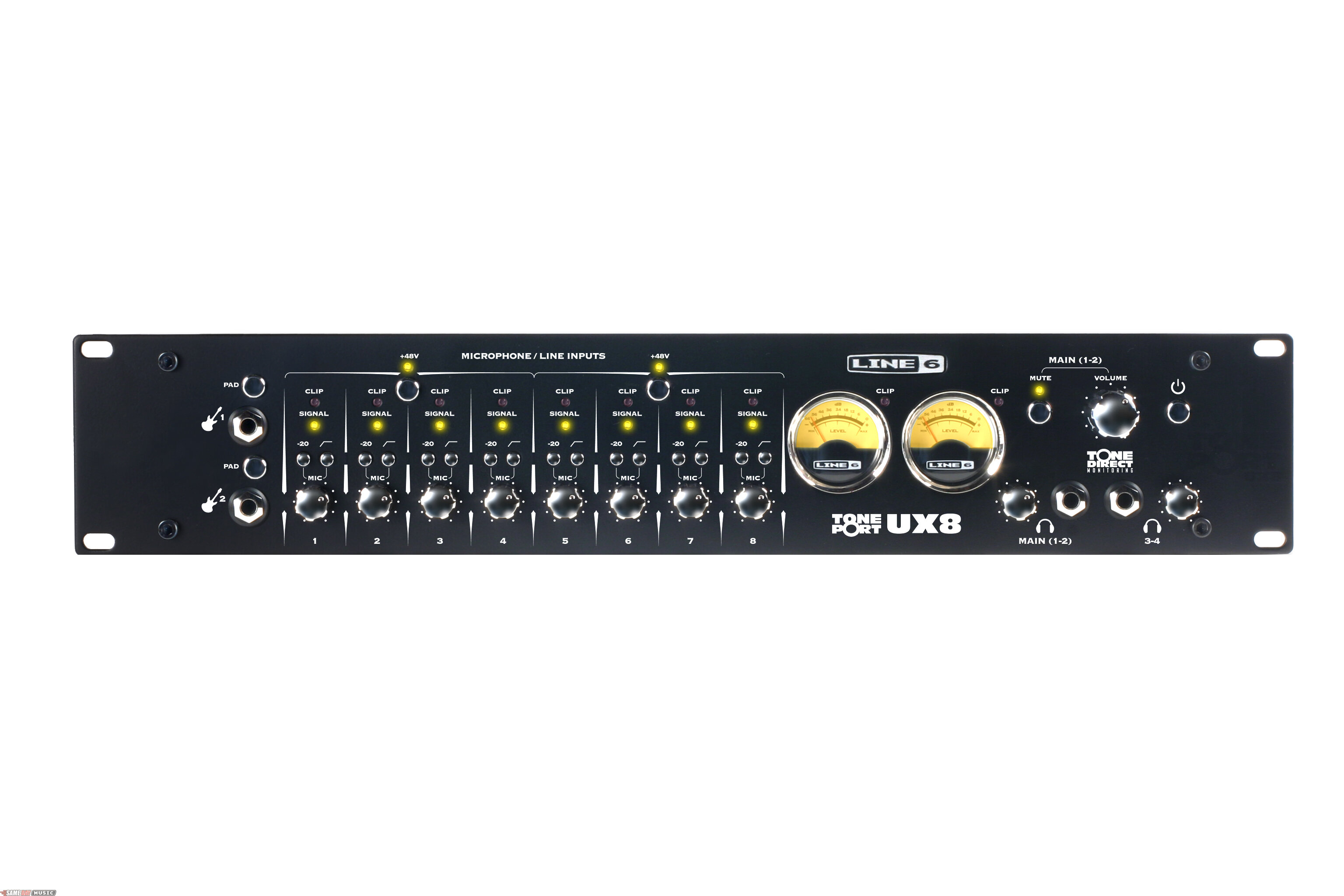

Front Panel
8x input trim knobs, signal activity & clip LEDs

8x high pass filter switches

8x pad switches (-20dB)

2x 1/4-inch instrument input with 2x pad buttons

Phantom power (48V) buttons for rear panel inputs

Master output monitoring knob

Master mute button

2x 1/4-inch stereo headphone jacks with trim knobs for monitoring different mixes

2x VU meters (same meters as UX2; assignable to any in/out) with clip LEDs

Power switch

Rear Panel
8x XLR balanced inputs w/ mic preamps (+60 dB gain)

8x 1/4-inch unbalanced line level input jacks

8x 1/4-inch balanced line output jacks

S/PDIF input and output RCA-type jacks

2x 1/4-inch footswitch jacks for MIDI control of GearBox and 3rd party software

Expression Pedal for MIDI control of GearBox and 3rd party software

USB 2.0 connector

Internal power supply and IEC cable

System Requirements

Windows:
Pentium 4 1.2GHz or better (2.5Ghz or more recommended)

Windows XP (with SP2 only)

Host application that supports RTAS or VST Plug-ins

512MB RAM minimum (1GB or more recommended) - 1GB free HD space minimum (10GB or more recommended for recording)

Drive speed 5400rpm minimum (7200rpm or faster recommended)

CD-ROM drive

Internet connection required for activation (once activated, Internet connection is not required)

Macintosh:
Intel or Power PC based G4 1.5GHz or better (G4 1.67 or better recommended)

OS X 10.4 or better

Host application that supports RTAS or Audio Unit (AU) Plug-ins

512MB RAM minimum (1GB or more recommended)

1GB free HD space minimum (10GB or more recommended for recording)

Drive speed 5400rpm minimum (7200rpm or faster recommended)

CD-ROM drive

Internet connection required for activation (once activated, Internet connection is not required)

USB: One free USB 2.0 compatible port on computer (USB hubs not supported)
