Product Description

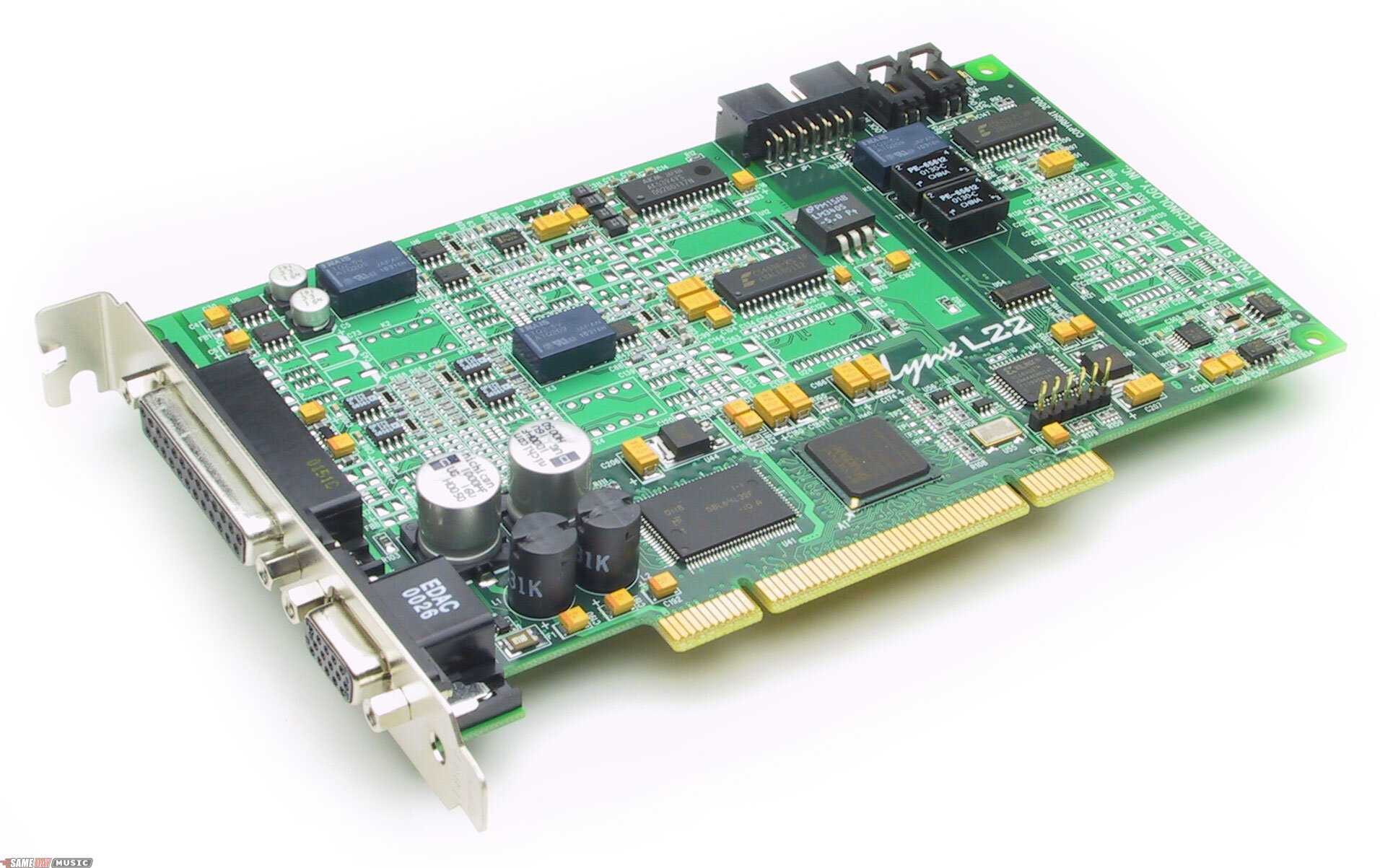

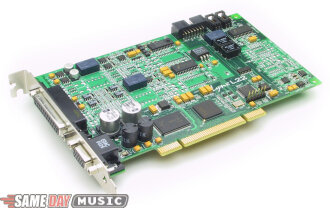

The Lynx L22 is a professional audio interface card intended for use in the most demanding audio recording, post-production, broadcast, and measurement applications. Based on LynxTWO technology, the L22 can capture or generate signals beyond the audio bandwidth up to 100 kHz with extreme accuracy.
Using proprietary circuit topologies and custom components in the analog stages coupled with the latest converter technology, the L22 achieves a 117 dB dynamic range. Most importantly, advanced noise-rejection design techniques are incorporated to maintain this performance in real world use from computer to computer.
Glitch-free recording and playback is assured due to the L22's large on-board buffers and extremely efficient zero-wait state DMA engine. These features provide tolerance to system latencies and significantly reduce load on the host CPU.
The onboard digital mixer is extremely flexible allowing the L22 to adapt to any studio or workstation configuration. Each of the mixer's 16 outputs is capable of mixing signals from 16 physical inputs or 16 playback tracks with 32-bit precision. A choice of dither algorithms is available on each input to mask low-level artifacts while reducing word widths to 8, 16, or 20 bits.
The L22 provides I/O expansion via its two LStream ports. Combined, these ports allow 16 channels of additional I/O from external ADAT or AES/EBU devices. The ports can also be used to route data and synchronize to other L22's or LynxTWO's to create high channel-count systems.
As with other Lynx products, the L22 provides unprecedented compatibility with a wide range of platforms and operating systems. Lynx device drivers are developed in-house to insure quality and robustness.
Download the Lynx L22 Brochure (287KB PDF), or just look at the full Lynx L22 hardware specifications.
Features
200kHz sample rate / 100kHz analog bandwidth (Supported with all drivers)
Two 24-bit balanced analog inputs and outputs
+4dBu or -10dBV line levels selectable per channel pair
24-bit AES3 or S/PDIF I/O with full status and subcode support
Sample rate conversion on digital input
Non-audio digital I/O support for Dolby Digital and HDCD
32-channel / 32-bit digital mixer with 16 sub outputs
Multiple dither algorithms per channel
Word, 256 Word, 13.5MHz or 27MHz clock sync
Extremely low-jitter tunable sample clock generator
Dedicated clock frequency diagnostic hardware
Multiple-board audio data routing and sync
Two LStream ports support 8 additional I/O channels each
Compatible with LStream modules for ADAT and AES/EBU standards
Zero-wait state, 16-channel, scatter-gather DMA engine
Windows 98 / ME / NT / 2000 / XP / Vista Drivers
Macintosh ASIO 2.0 Drivers
Technical Description
Analog I/O
Number: Two inputs / Two outputs
Type: Electronically balanced or unbalanced, XLR connectors on L2Audio Cable
Level: +4 dBu nominal /+20dBu max. or -10dBV nominal / +6dBV max., software selectable in channel pairs
Bandwidth:
< 10Hz - 92 kHz @ 200 kHz sample rate
< 10Hz - 46 kHz @ 96 kHz sample rate
< 10Hz - 23 kHz @ 48 kHz sample rate
(analog input to analog output)
Input Impedance: Balanced mode: 24 kW , Unbalanced mode: 12 kW
Output Impedance: Balanced mode: 100 W, Unbalanced mode: 50 W
Output Drive Capability: 600 W impedance, 0.2 ?F capacitance
A/D and D/A Type: 24-bit, multi-level, delta-sigma
Sample Rates: 8 kHz to 200 kHz, including all standard rates with variable adjustment
Bit Depth: 8, 16, 24 or 32 bit file types
On-board Buffer Size: 16 Kbytes per input and output stream (mono or stereo)
Analog In Performance
(Analog performance specs measured at 44.1 kHz sample rate, 24-bit, card installed in computer)
Frequency Response: 20 - 20 kHz, ? 0.05 dB at 44.1 kHz sample rate
Dynamic Range: 117 dB, A-wtd.
Signal-to-Noise: 116 dB, A-wtd.
Channel Crosstalk: <-120 dB, 1 kHz signal @ -1dBFS
THD+N:
-108 dB (0.0004%) @ -1 dBFS
-104 dB (0.0006%) @ -8 dBFS
1 kHz signal, 22Hz - 22kHz BW
Analog Out Performance
(Analog performance specs measured at 44.1 kHz sample rate, 24-bit, card installed in computer)
Frequency Response: 20 - 20 kHz, ? 0.05 dB at 44.1 kHz sample rate
Dynamic Range: 117 dB, A-wtd.
Signal-to-Noise: 117 dB, A-wtd.
Channel Crosstalk: <-120 dB, 1 kHz signal @ -1dBFS
THD+N:
-97 dB (0.0014%) @ -1 dBFS
-104 dB (0.0006%) @ -8 dBFS
1kHz signal, 22Hz - 22kHz BW
Digital I/O
Number / Type: One input and one output
AES/EBU or S/PDIF format, transformer coupled, XLR connectors on L2Sync Cable
Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Sample Rate Conversion: Supports conversion ratios up to 3:1 on digital input, 128 dB dynamic range
Bit Depth: 8, 16, 24 or 32 bit file types
Control / Status: Complete subcode and channel status support
On-board Buffer Size: 16 Kbytes per input and output stream (mono or stereo)
LStream Expansion Ports
Number: One external and one internal
Compatibility: Supports Lynx ADAT, AES/EBU, and other multi-channel expansion modules
Type: High-speed serial, eight channel input and output (each port) or sixteen channel input and output (single port), 24-bit data, 96kHz rate
Clock I/O
Number:
External: one input and output, BNC connectors on L2Sync Cable
Internal: one input and output on board-mounted headers
Level / Impedance: TTL / 75W
Type: Input: word clock, 256X word clock, 13.5 and 27 MHz clocks; Output: word clock
On-board Digital Mixer
Channel Capacity: 32 input channels, 16 sub outputs
Resolution / Dither: 32-bit / TPDF, Shaped TPDF, or RPDF
Monitor Mixing: Any input to multiple outputs
Metering: Peak levels to -114 dB on all inputs and outputs
Connections
Audio Port: Bracket-mounted 25-pin female D-sub connector for analog audio input and output
Sync Port: Bracket-mounted 15-pin high-density female D-sub connector for digital input and output, sync in and out
Cables (Included)
L22Audio Cable: 25-pin male D-sub to male and female XLR connectors on six-foot shielded twisted pair cabling
L22Sync Cable: 15-pin high-density male D-sub to (1) male and (1) female XLR on six-foot shielded twisted pair cabling and (4) female BNC connectors on two-foot 75W coaxial cabling
Software
Windows Drivers: Windows 98 / ME / NT/ 2000 / XP / Vista: MME, ASIO 2.0, and DirectSound
Macintosh Drivers: ASIO 2.0 for OS 9
L22 Mixer Application: Provides complete control of digital mixer and all hardware settings.
General
PCI Bus: Version 2.2 compliant
Data Transfers: Up to 132 Mbytes/sec using custom 16-channel, zero-wait state, scatter-gather DMA engine; bus mastering
Size: 5.0" H X 7.4" W X 0.75" D (half-size PCI card)
Shipping Weight: 2.75 lbs. with cables
Certifications: CE and FCC Class B
LStream Expansion Modules
(Optional, for LStream ports)
LS-ADAT: Provides 16-channel/48kHz, 8-channel/96kHz or 4-channel/192kHz 24-bit ADAT optical I/O and ADAT Sync
LS-AES: Provides 8-channel/96kHz or 4-channel/192kHz 24-bit/96kHz AES-3 digital I/O
