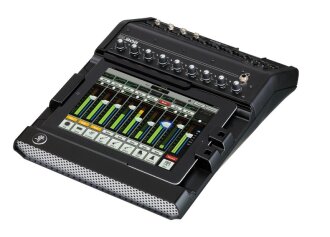

    Mackie DL806 Digital iPad Controlled Mixer, with 30-pin Dock Connector

    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 208-77J1

    More Resources

    Mackie Warranty: If you have additional warranty questions, please call the manufacturer at 800-898-3211 and 425-487-4333
    Order Now | Limited Qty
    •
    • 2 Day: $8
    • Overnight: $36
    $429.95
    Order Now | Limited Qty
    •
    • 2 Day: $8
    • Overnight: $36
    $449.95
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Mackie DL806 Digital iPad Controlled Mixer, with 30-pin Dock Connector Product Description

    Control all of your live-sound mixing by iPad with the Mackie DL806 8 Channel Digital Mixer with iPad Controller. The DL806 features 8 Onyx microphone preamps, 24-bit A/D and D/A converters, powerful internal DSP processing and an iPad docking faceplate. Integrate your Apple iPad and complete the setup for a live sound mixing experience that takes advantage of the iPad's touch screen capabilities and wireless control.

    Use Mackie's Master Fader app to mix live audio and access the DL806's internal processing, including 4-band EQ, compression, gate, delay, reverb and 31-band master buss graphic EQ. Add a wireless router (not included) and mix with your iPad remotely, at various locations of a venue, hall, etc. The DL806 takes full advantage of the iPad's flexibility.

    Control your performance from anywhere with the Mackie DL806's seamless wired to wireless mixing capabilities, you can mix in real-time from anywhere in the venue on your iPad (requires wireless router, sold separately). Instantly adjust mix functions from tuning front of house trouble spots to ringing out stage monitors. The Mackie DL806's 24-bit Cirrus Logic AD/DA converters offer a remarkable 114 db dynamic range. The DL806 is big on security. The PadLock feature locks down your iPad for permanent installs, while the Kensington lock - the industry standard in protecting technological equipment - secures the mixer to guard it from theft.

    Master Fader v3.2, Now Available

    Master Fader v3.2, now available for free download, bringing powerful new features to DL32R in addition to performance and workflow enhancements for DL1608 and DL806 users. Also available now is My Fader v3.2 which also adds enhancements.

    The big news is that DL32R now features 32x32 direct-to-disk recording and playback! Wireless control over multi-track direct-to-disk recording has been an amazingly popular feature for the DL32R. View more details about this feature and all other enhancements below.

    Master Fader and My Fader v3.2 are now available for free download on the App Store. For complete version details, including device compatibility information, visit the App Store.

    Features:

    - 8 Onyx Microphone XLR Inputs/Preamps
    - Switchable 48V Phantom Power
    - Cirrus Logic 24-Bit Converters
    - 4-Band EQ, Gate & Compressor Per Channel
    - Master Buss 31-Band GEQ and Comp/Limiter
    - Global Reverb and Delay Availability
    - Instantly Record the Mix to iPad and Share
    - 4 Analog Aux Sends
    - PadLock Feature Locks iPad for Installs
    - Kensington Lock

    Note: This item uses an Apple 30-pin connection and does NOT include an iPad or other iDevice.

    Got a Lightning iPad? Just Add Apple's Adapter

    Your Lightning-connector iPad will still work perfectly with the DL806 mixer. Just add an Apple Lightning to 30-Pin Adapter between the iPad and DL806!

    Same Day Music is an authorized dealer of Mackie products.

    Mackie DL806 Digital iPad Controlled Mixer Technical Description

    Required Accessories:
    - Apple iPad
    - Wi-Fi router required for wireless operation (not included)

    Compatibility:
    - Wireless control supported from all iPad models
    - Docked control supported from iPad, iPad 2 and iPad (3rd gen)
    - Wireless control supported from iPod touch (4th & 5th gen), iPhone 4, iPhone 4S and iPhone 5
    - Wireless Connectivity: Connect up to 10 wireless devices simultaneously

    Analog I/O:
    - Input Connectors: 8 x XLR balanced
    - Phantom Power: 48V, switchable
    - AUX Sends: 4 x 1/4" TRS
    - Main Outputs: 2 x XLR balanced (1 x L/R)
    - Headphone Output: 1 x 1/4" Stereo

    Audio Performance Specifications:
    - AD/DA Conversion: Cirrus Logic 24-bit

    Dimensions and Weight:
    - Dimensions (W x D x H): 15.5" x 11.5" x 3.9 "
    - Weight: 6.9 pounds (3.2 kg)
