Product Description

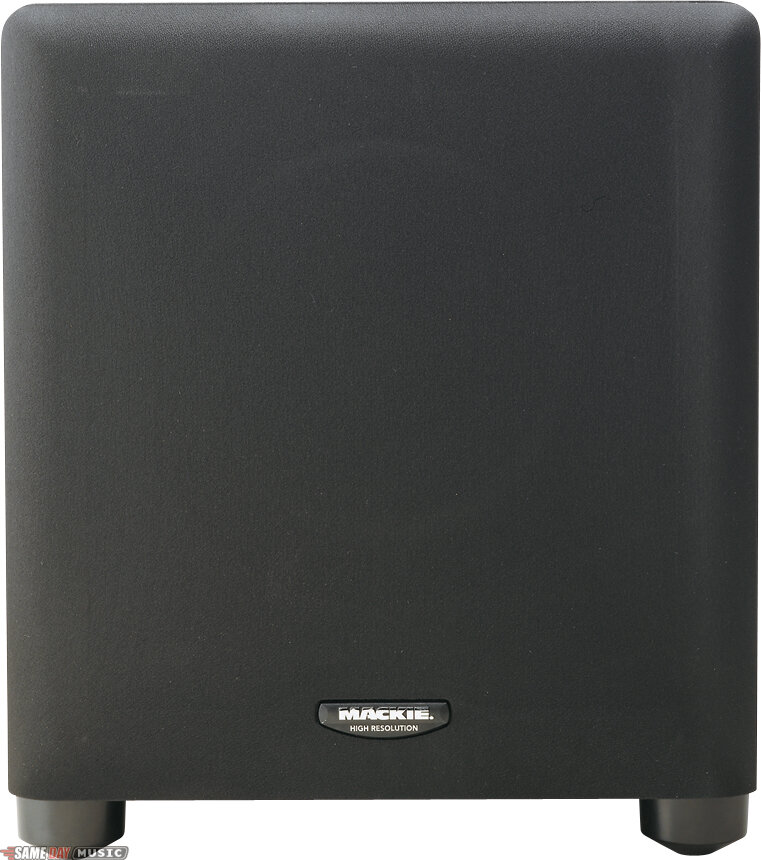

The Mackie HRS120 is a THX-approved, 12 in. active subwoofer that is ideal for applications where precise, low frequency reproduction and flexible monitoring and control options are required. The HRS120 is engineered to work in harmony with the HR824 and HR624.

The Mackie HRS120 Active Subwoofer is one of the most flexible, responsive, and cost-effective active studio sub woofers on the market today. The HRS120 is perfectly suited for professional recording studios and film/video surround post-production facilities that require extremely accurate bass extension to 19Hz and below. It is also an excellent choice for home theater surround sound installations. In addition to surround applications, the HRS120 can add more low-end presence and enhancement to project and professional studios in a standard stereo configuration. Either way, the HRS120 is a must-have for those customers seeking crisp, clear, detailed low-frequency enhancement for virtually any application.

Features
Active Technology

Benefit: Precise phase alignment

Benefit: Extremely low distortion

Benefit: Minimal chance of speaker damage due to overdriving

Servo Loop Woofer Technology

Benefit: Output is as true to incoming signal as possible

Benefit: Extraordinarily high damping factors

Built-In, Front-Firing, Mass-Loaded Passive Radiator

Benefit: Clear, detailed low frequency enhancement

User-Adjustable Controls

Benefit: Flexibility to adjust to wide range of user needs

Application
Professional Recording Studios

Film (THX) and Post Production Studios

Home Theater Installations

Technical Description

Acoustic Performance
Free Field Frequency Response: 21Hz - 150Hz +/-1.5dB
LF Cut-Off Frequency: 3dB at 19Hz
Sound Pressure Level @1 Meter, 7.5dBu into Balanced Input: 100db SPL@1m

Transducers
Low Frequency: 12 in. (305mm) RCF Precision, Extended LF Transducer with 4 in. voice coil and cast aluminum frame
Passive Radiator: 12 in. (305mm)

Amplifier
Power: 400 watts, 8 Ohm load (500 watts peak)
Slew Rate: >35V/us
Signal-to-Noise Ratio: >107db, referenced to 350 watts into 8 Ohm
Distortion THD/SMPTE/IMD/DIM100: <0.02%
Type: FR Series Class AB

Construction
Enclosure: 3/4 in. (19mm) MDF with 1 in. (25mm) MDF front panel, internal H bracing
Damping: Adibiatic foam

Controls
Subsonic Filter: flat/15Hz, 18dB/octave filter
Filter bypass In/full range (THX)
Filter Select Variable/110Hz elliptical
Polarity 0

Catalog Description

Extend your HR system's linear response down through the floorboards@12" woofer driven by 400 watts@Flat response +/- 1.5 dB from 21 to 150 Hz
