Mackie SA1232Z 3-Way Active Loudspeaker (1300 Watts, 2x12 in.)
Wide dispersion. Tri-amplified. Electronic and component circuitry protection.
Product rated 6.6 out of 10 (8 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:
Main
Angle

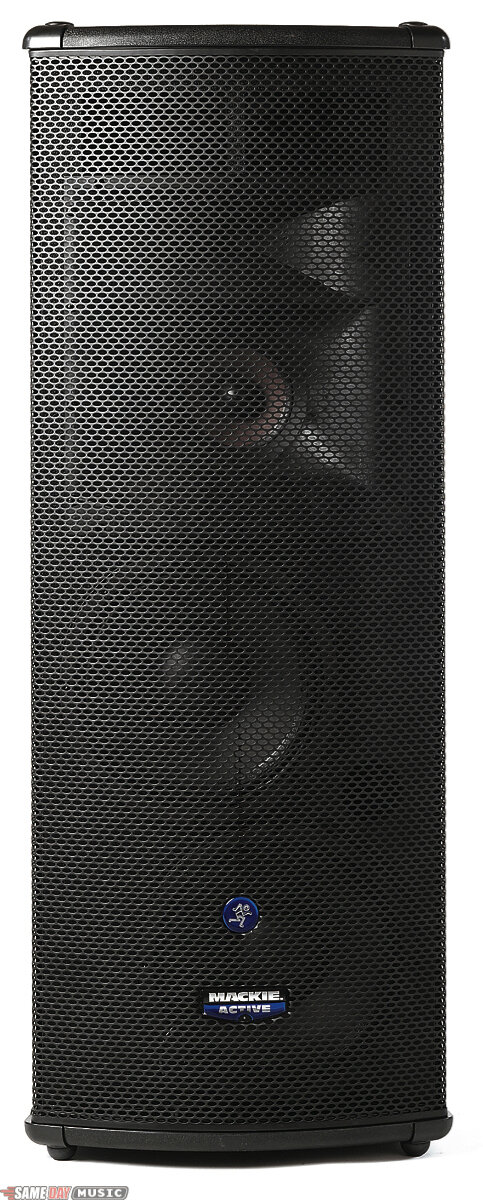

Front
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
For when incredible accuracy and extreme output are a must, Mackie's flagship SAz Series represent the finest active loudspeaker systems on the market. These 4 newly developed "Super Active" loudspeakers improve upon Mackie's award-winning Active designs of the past with maximized power, re-calibrated electronics, high-definition neodymium drivers, and extensive acoustic design and tuning by the world-renowned Eastern Acoustic Works (EAW) engineering team.
SA1232z Features:
Optimized wide-dispersion WaveFront high/mid horn system
Tri-Amplified, with independent 1100W RMS low-frequency, 100W RMS mid-frequency, and 100W RMS high-frequency amps
44mm (1.75 in.) neodymium high-frequency compression driver
152mm (6 in.) horn-loaded neodymium mid-frequency transducer
Two 305mm (12 in.) LF woofers with high-temperature voice coils
Complete electronic and component circuitry protection
136dB SPL @ 1kHz/1 meter
Frequency Response: 39Hz to 20kHz
Re-Engineered for Superior Performance
The new SAz Series Loudspeakers start with maximum power. The range opens with 500 watts RMS total in the SA1521z, and goes to a massive 1300 watts RMS total in the SA1530z, SA1232z, and SA1532z. And Mackie made sure this power was translated into incredible accuracy with completely re-calibrated active electronics -- including precision crossovers, thermal and transducer protection, and electronic time-correction. These revamped electronics are coupled with new neodymium mid- and high-frequency drivers, delivering greater accuracy and increased output versus previous ceramic-magnet models, yet weighing significantly less. And as the only premium active loudspeakers with optimized WaveFront horns, the SAz series' natural sound and ultra-wide dispersion are simply unparalleled in its class.
Precision-Tuned by EAW Loudspeaker Engineers
Because a loudspeaker is more than the sum of its parts, the new SAz Series Loudspeakers were developed and tuned exclusively by the EAW loudspeaker engineering team. This is the same team behind high-output loudspeaker systems for the Olympic games, the Super Bowl, and musical tours ranging from Usher to REM to Eric Clapton for over 25 years. The end result of their efforts is that the SAz Series loudspeakers function as highly efficient systems, optimizing acoustic, electronic, and mechanical designs to achieve the highest level of performance and value. Put simply, the new SAz series stand as the finest active loudspeaker systems in Mackie history, rivaling professional passive systems costing thousands more.
Three 3-Way Designs with Patented Wavefront High/Mid Horn
Mackie's top-of-the-line SA1530z, SA1232z and SA1532z employ several distinct elements to achieve their amazing accuracy and full, natural sound. For each model, frequencies above 3kHz are produced by a 1.75 in. neodymium compression driver, while a 6 in. neodymium mid-range transducer operates between 700Hz and 3kHz -- eliminating the placement of a crossover point in the center of critical voice frequencies.
Additionally, all 3 models feature Mackie's optimized wide-dispersion WaveFront horn design -- a scientifically developed 1-piece 90 x 40 degrees horn that combines both mid- and high-frequency drivers. Unlike typical mid/high horn designs, the high-frequency section fires slightly downward into the 6 in. mid-range driver's dispersion pattern, creating a focused, single wave front with excellent phase and power response characteristics. The resulting 90 x 40 degrees dispersion pattern provides open, natural sound for the entire audience, even at extreme output levels.
SA1232z Features:
Optimized wide-dispersion WaveFront high/mid horn system
Tri-Amplified, with independent 1100W RMS low-frequency, 100W RMS mid-frequency, and 100W RMS high-frequency amps
44mm (1.75 in.) neodymium high-frequency compression driver
152mm (6 in.) horn-loaded neodymium mid-frequency transducer
Two 305mm (12 in.) LF woofers with high-temperature voice coils
Complete electronic and component circuitry protection
136dB SPL @ 1kHz/1 meter
Frequency Response: 39Hz to 20kHz
Re-Engineered for Superior Performance
The new SAz Series Loudspeakers start with maximum power. The range opens with 500 watts RMS total in the SA1521z, and goes to a massive 1300 watts RMS total in the SA1530z, SA1232z, and SA1532z. And Mackie made sure this power was translated into incredible accuracy with completely re-calibrated active electronics -- including precision crossovers, thermal and transducer protection, and electronic time-correction. These revamped electronics are coupled with new neodymium mid- and high-frequency drivers, delivering greater accuracy and increased output versus previous ceramic-magnet models, yet weighing significantly less. And as the only premium active loudspeakers with optimized WaveFront horns, the SAz series' natural sound and ultra-wide dispersion are simply unparalleled in its class.
Precision-Tuned by EAW Loudspeaker Engineers
Because a loudspeaker is more than the sum of its parts, the new SAz Series Loudspeakers were developed and tuned exclusively by the EAW loudspeaker engineering team. This is the same team behind high-output loudspeaker systems for the Olympic games, the Super Bowl, and musical tours ranging from Usher to REM to Eric Clapton for over 25 years. The end result of their efforts is that the SAz Series loudspeakers function as highly efficient systems, optimizing acoustic, electronic, and mechanical designs to achieve the highest level of performance and value. Put simply, the new SAz series stand as the finest active loudspeaker systems in Mackie history, rivaling professional passive systems costing thousands more.
Three 3-Way Designs with Patented Wavefront High/Mid Horn
Mackie's top-of-the-line SA1530z, SA1232z and SA1532z employ several distinct elements to achieve their amazing accuracy and full, natural sound. For each model, frequencies above 3kHz are produced by a 1.75 in. neodymium compression driver, while a 6 in. neodymium mid-range transducer operates between 700Hz and 3kHz -- eliminating the placement of a crossover point in the center of critical voice frequencies.
Additionally, all 3 models feature Mackie's optimized wide-dispersion WaveFront horn design -- a scientifically developed 1-piece 90 x 40 degrees horn that combines both mid- and high-frequency drivers. Unlike typical mid/high horn designs, the high-frequency section fires slightly downward into the 6 in. mid-range driver's dispersion pattern, creating a focused, single wave front with excellent phase and power response characteristics. The resulting 90 x 40 degrees dispersion pattern provides open, natural sound for the entire audience, even at extreme output levels.
