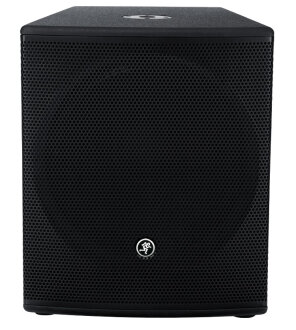

Mackie SRM1801 1x18 Powered Subwoofer, 1000 Watts

Mackie SRM1801 powered subwoofers provide intense low-frequency extension and punch to the Mackie SRM450v2 and other powered loudspeakers. The SRM1801 powered subwoofer delivers 1000W peak power via Class-D Fast Recovery(tm) amplification. The Class-D amp design is ultra-efficient and, along with the lightweight switch-mode power supply, drastically reduces this subwoofer’s weight. Premium circuitry includes built-in Active electronics, like a precision crossover and tuning filters for accurate bass response. Also included with the SRM1801 are user-friendly features such as high-pass and full-range outputs for stereo operation with a single sub. A polarity switch allows phase alignment of the SRM1801 to the full-range loudspeakers. Custom-designed transducers maximize efficiency and performance when matched with the system’s internal amp. The 18-inch woofer uses a ferrite magnet with a 3-inch voice coil.

The solid plywood enclosures feature a ported bass reflex design that produces tight low end. This makes the sub extremely lightweight and portable, without compromising power and performance. The integrated pole-cup accommodates a standard mounting pole. Pair the SRM1801 with the popular Mackie SRM450v2 or TH-15a for an extremely powerful and fully high-definition PA solution.

Features

- 18" Powered Subwoofer System
- 18" woofer with a 3" voice coil delivers superior output and low-frequency extension
- 1000W of efficient Class-D Fast Recovery(tm) amplification
- Mackie Active electronics provide total system optimization:
- Precision crossover @ 125 Hz
- Precision tuning filters for accurate bass response

- Dual XLR inputs for mono or stereo applications
- Stereo high-pass and full-range outputs
- User-adjustable level and polarity controls
- Individual power, signal, OL, and thermal protect indicators
- Pole receptacle for mounting full-range loudspeakers
- Solid plywood enclosure with high-durability, textured black paint
- Extremely lightweight and portable (73 lb / 33.1 kg)

The SRM 1801 is the perfect solution for small to mid-size club/band PA systems, houses of worship, Djs, rehearsal spaces, gymnasiums, banquet halls, A/V rentals and much, much more.

Same Day Music is an authorized dealer of Mackie products.

Specifications

Acoustic Performance
Frequency Range (-10 dB): 35 Hz - 150 Hz
Frequency Response (-3 dB): 50 Hz - 115 Hz
Max peak SPL (calculated)1: 129 dB
Max peak SPL (measured)2: 124 dB

Transducer
Diameter: 18 in / 457 mm
Voice coil diameter: 3 in / 76 mm
Diaphragm material: Paper
Magnet material: Ferrite

Power Amplifier
Rated Power: 500 watts rms, 1000 watts peak
THD: <0.1%
Design: Class D
Cooling: Convection
Input/Output
Input Type: Female XLR Balanced differential (stereo left/right)
Input Impedance: 20 k balanced
Full Range Output: Male XLR Balanced (parallel with input)
High Pass Output: Male XLR Balanced
Level Control: -6 dB to +6 dB

Electronic Crossover
Crossover Type: 24 dB/oct. Linkwitz- Riley
Crossover Frequency: 125 Hz

Protection Features
Over-excursion Protection: 40 Hz 24 dB/oct. Butterworth High Pass Filter
Thermal Protection: Amplifier mute, auto reset
Driver Protection: Peak/RMS Limiter
Display LEDs: Thermal, OL, Signal, Power

AC Power Requirements
US: 100-120 VAC, 50-60 Hz
Fuse: T 6.3A H 250V
Europe: 220-240 VAC, 50-60 Hz
Fuse: T 3.15A H 250V
Power Consumption: 160 watts @ 1/4 power
AC Connector: 3-pin IEC 250 VAC, 15 A male

Construction Features
Basic Design: Trapezoidal
Material: Void-free plywood
Finish: Textured black catalyzed polyurethane paint
Handles: One on each side
Grille: Perforated metal

Physical Properties
Height: 24.1 in / 612 mm
Front Width: 20.2 in / 513 mm
Rear Width: 15.1 in / 383 mm
Depth: 25.3 in / 643 mm
Weight: 73 lb / 33.1 kg

Same Day Music is an authorized dealer of Mackie products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 80 lbs

Shipping Dimensions: 29 x 24 x 27 in
