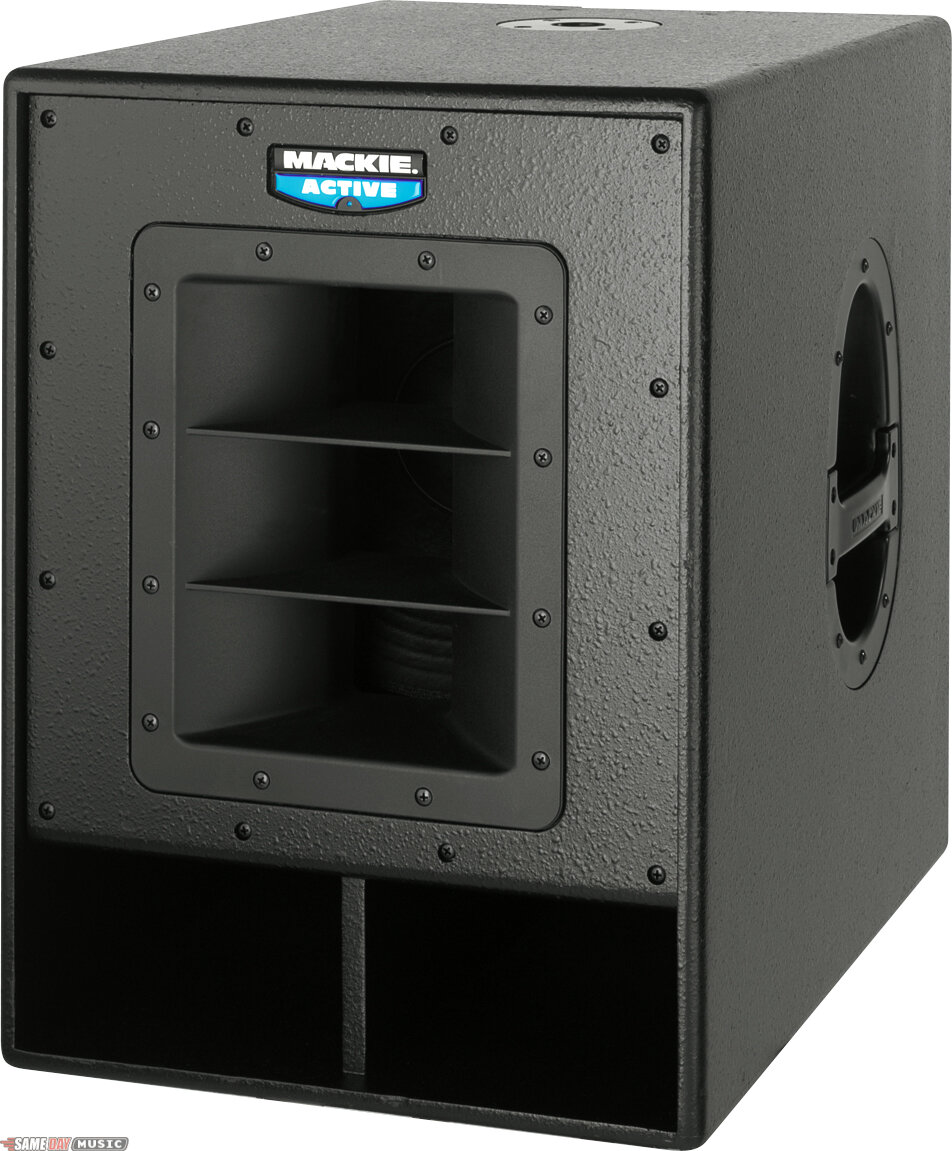

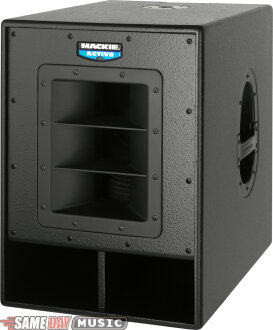

Mackie SWA1501 Powered 15 in. Subwoofer
Extremely powerful. Compact cabinet. Level control.
Product rated 7.5 out of 10 (60 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:
Main
Front
Rear
Rear Panel
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The SWA1501 is a 15 in. high output, active subwoofer system. It features a high precision 15 in. transducer combined with application specific amplifier technology. The system is composed of a single, compact subwoofer cabinet with built in control and amplifier Target.
Features:
128dB Peak Output
Extremely powerful system capable of real, professional output levels
Extended bass response from a compact enclosure allows you to enhance and extend the bass performance of any small to medium full range active or passive PA cabinet
Compact cabinet provides highest output per cubic inch possible in its class
Level control (-15dB to +5dB)
RCF Precision high efficiency 15 in. woofer with high temperature inside/outside coil technology
Drivers are designed specifically for the SWA1501 -- no "off the shelf" components
13-ply Baltic Birch enclosure finished in black splatter paint
Cast aluminum side handles
Signal present LED
Limit LED (Indicates that active protection circuitry is engaged)
The transducer used in the SWA1501 system features a 3-inch, inside/outside wound voice coil that offers extreme power handling capabilities. The magnetic assembly used features advancements in coil venting and structural cooling that provides lower temperature rise and substantially improved power compression characteristics.
The amplifier module found in the SWA1501 cabinet is an example of application specific amplifier design that can be exercised when designing active speaker systems. The system uses a proprietary high efficiency, high current amplifier module designed to provide high current levels at all levels of operation. Having access to high current levels, no matter what the power output, is absolutely critical in achieving precise, total control of the woofer mass. This control is responsible for lowering audible distortion artifacts and providing aggressive attack through the operating band pass of the system. The amplifier module is mounted on a large, finned aluminum heat sink. The amplifier system is rated at 500 watts RMS of continuous output and 700 watts peak output.
The SWA1501 features a sophisticated on board control system allowing for flexible integration with active or passive full range or mid/high speaker systems. The input panel accepts line level input signal and has LOOP OUT connectors for signal routing to other devices. It also has HIGH PASS out connectors for connection to active full range speakers or amplifiers powering passive full range speakers. All signal routing is through XLR connectors in L+R stereo or mono. There is a phase selection switch and a recessed level control. The system features thermal protection for the power supply and amplifier module and also incorporates RMS limiting protection for the amplifier stage that limits the amount of long term power deliver to the transducer.
The cabinet is constructed using 18mm thick multi-layered birch plywood and finished in black splatter paint. There is one handle on each side for efficient loading and transport as well as a top, female pole mount fixture.
High Resolution Audio Reproduction
The SWA1501 does not behave like a typical 15 in. subwoofer manufactured by so many other companies. It has been designed using Mackie's belief that live audio subwoofers should focus on the character of the "attack" the device has. They have also focused their energies on the design of double horn-loaded chambers to achieve a significant increase in output and lower distortion characteristics which lead to high resolution performance.
RCF Precision, the same company that provides high-tech compression drivers and woofers for high-end touring rigs like EAW 's KF760, has developed a new woofer for our use.
On-Board Active Electronics with Flexible Rear Panel Controls and I/O
A flexible input panel provides both stereo and mono signal input and output capabilities. There are High Pass outputs that are work above the operating band pass of the subwoofer cabinet. The panel also features four function LEDs that provide Power On, Limit, Signal Present and Thermal condition indication. You can also control the level and phase of the system using recessed controls.
The low frequency amplifier is a unique switch mode hybrid topology that has been extremely successful as used in the SRS1500 active subwoofer. As used in the SWA1501, it provides 500 watts of continuous output with over 700-watt peaks. More importantly the design delivers over 90% efficiency resulting in very little power the heatsink during the demo being dissipated thermally through the heatsink.
Active doesn't mean it has an amplifier bolted on the back, it means seamless integration of optimized electronics that provide complete control and maximum performance. The on-board control system provides crossover filters, equalization, protection for speaker components and electronics as well as real time active vigilance over the operating parameters of the system.
Features:
128dB Peak Output
Extremely powerful system capable of real, professional output levels
Extended bass response from a compact enclosure allows you to enhance and extend the bass performance of any small to medium full range active or passive PA cabinet
Compact cabinet provides highest output per cubic inch possible in its class
Level control (-15dB to +5dB)
RCF Precision high efficiency 15 in. woofer with high temperature inside/outside coil technology
Drivers are designed specifically for the SWA1501 -- no "off the shelf" components
13-ply Baltic Birch enclosure finished in black splatter paint
Cast aluminum side handles
Signal present LED
Limit LED (Indicates that active protection circuitry is engaged)
The transducer used in the SWA1501 system features a 3-inch, inside/outside wound voice coil that offers extreme power handling capabilities. The magnetic assembly used features advancements in coil venting and structural cooling that provides lower temperature rise and substantially improved power compression characteristics.
The amplifier module found in the SWA1501 cabinet is an example of application specific amplifier design that can be exercised when designing active speaker systems. The system uses a proprietary high efficiency, high current amplifier module designed to provide high current levels at all levels of operation. Having access to high current levels, no matter what the power output, is absolutely critical in achieving precise, total control of the woofer mass. This control is responsible for lowering audible distortion artifacts and providing aggressive attack through the operating band pass of the system. The amplifier module is mounted on a large, finned aluminum heat sink. The amplifier system is rated at 500 watts RMS of continuous output and 700 watts peak output.
The SWA1501 features a sophisticated on board control system allowing for flexible integration with active or passive full range or mid/high speaker systems. The input panel accepts line level input signal and has LOOP OUT connectors for signal routing to other devices. It also has HIGH PASS out connectors for connection to active full range speakers or amplifiers powering passive full range speakers. All signal routing is through XLR connectors in L+R stereo or mono. There is a phase selection switch and a recessed level control. The system features thermal protection for the power supply and amplifier module and also incorporates RMS limiting protection for the amplifier stage that limits the amount of long term power deliver to the transducer.
The cabinet is constructed using 18mm thick multi-layered birch plywood and finished in black splatter paint. There is one handle on each side for efficient loading and transport as well as a top, female pole mount fixture.
High Resolution Audio Reproduction
The SWA1501 does not behave like a typical 15 in. subwoofer manufactured by so many other companies. It has been designed using Mackie's belief that live audio subwoofers should focus on the character of the "attack" the device has. They have also focused their energies on the design of double horn-loaded chambers to achieve a significant increase in output and lower distortion characteristics which lead to high resolution performance.
RCF Precision, the same company that provides high-tech compression drivers and woofers for high-end touring rigs like EAW 's KF760, has developed a new woofer for our use.
On-Board Active Electronics with Flexible Rear Panel Controls and I/O
A flexible input panel provides both stereo and mono signal input and output capabilities. There are High Pass outputs that are work above the operating band pass of the subwoofer cabinet. The panel also features four function LEDs that provide Power On, Limit, Signal Present and Thermal condition indication. You can also control the level and phase of the system using recessed controls.
The low frequency amplifier is a unique switch mode hybrid topology that has been extremely successful as used in the SRS1500 active subwoofer. As used in the SWA1501, it provides 500 watts of continuous output with over 700-watt peaks. More importantly the design delivers over 90% efficiency resulting in very little power the heatsink during the demo being dissipated thermally through the heatsink.
Active doesn't mean it has an amplifier bolted on the back, it means seamless integration of optimized electronics that provide complete control and maximum performance. The on-board control system provides crossover filters, equalization, protection for speaker components and electronics as well as real time active vigilance over the operating parameters of the system.
CATALOG DESCRIPTION
Compact 15" subwoofer with power to spare@Onboard EQ and high-pass filter for full-range speakers@36Hz-120Hz frequency response with 128dB peak output@Pole mount receptacle@XLR I/O@500 watts
