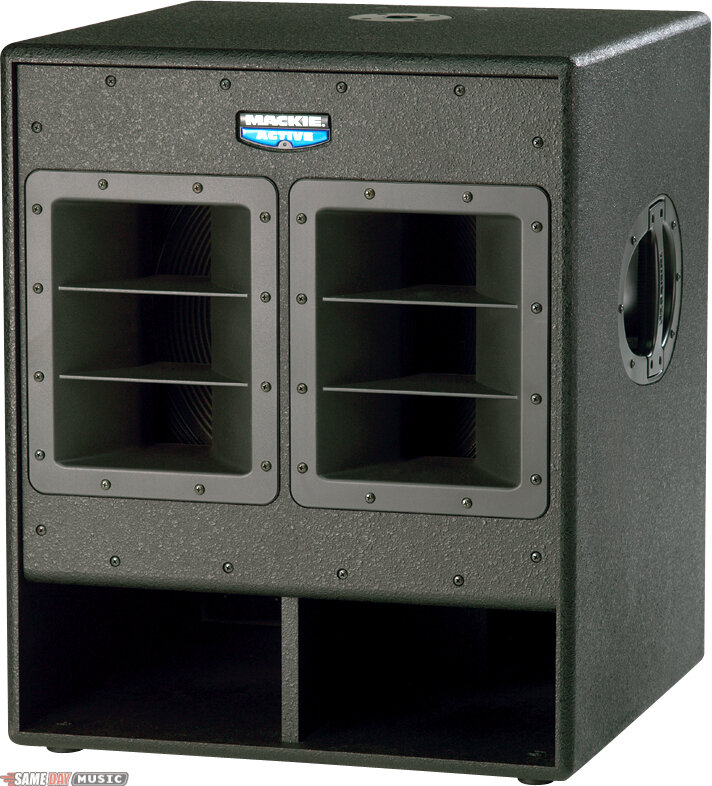

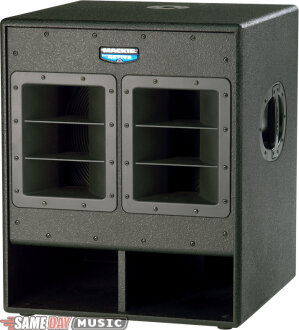

Mackie SWA1801Z Powered Subwoofer (18 in., 900W )
Capable of extreme output levels. Extended bass response.
Product rated 8.1 out of 10 (77 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:
Main
Right Angle View
Front View
Rear Panel
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Accurate, Earth-Shaking Bass Enhancement.
Picking up where our SWA1501 leaves off, the Mackie SWA1801z ups the ante with even more wattage and a bigger 18 in. transducer. The SWA1801z features an internal 800-Watt FR (Fast Recovery) Series amplifier and a high-precision 18 in. transducer custom designed for optimal performance with the amp and enclosure. Onboard Mackie Active electronics ensure seamless integration of the amplifier and transducer at all times, creating a system that is highly efficient and versatile. Add it all up and this high-output system will peel the paint right off the walls!
True Mackie active design
Active doesn't just mean the SWA1801z has an amplifier bolted on its back - it means optimized electronics that provide complete control and maximum performance over all components. The onboard Active system controls the crossover filters, equalization, protection for the transducer and electronics, and provides real time vigilance over the entire system. There is simply no way that you can get this kind of full system functionality by strapping an amp on the back of a passive speaker box.
No need for an external crossover
Connecting and setting up the SWA1801z is a breeze. It accepts a stereo or mono line-level signal via female XLR input jacks. Male XLR Thru jacks are provided for daisy-chaining the signal to additional SWA1801z cabinets. The built-in crossover routes the high frequency content to the high-pass output jacks, which can be used to feed the inputs of full-range Active speakers, such as those in the Mackie SAz Series, or an amplifier powering a pair of passive speakers. A Subwoofer Level control lets you adjust the balance between the subwoofer and the full-range speakers.
The secret to our power
The SWA1801z's built-in amplifier, which produces 800 watts continuous power, sits on a massive heatsink, eliminating the need for fans and dramatically extending life expectancy. A tremendous benefit of having the amplifier inside the subwoofer enclosure is that the SWA1801z functions as a complete system, optimizing acoustic, electronic, and mechanical designs to achieve the highest level of performance and value.
Solid wood construction
For high-output loudspeakers, real wood just sounds better-and it looks better, too! The SWA1801z enclosure is made of select 15mm Baltic birch plywood and finished in black splatter paint. Carrying handles are integrated into each side for easy loading, and casters are attached to the rear for transport. Since you will probably want the full-range enclosure nearby, a pole mount receptacle is strategically placed on top of the enclosure.
Features
800-Watt single 18 in. compact Active subwoofer system
Precision 18 in. woofer with high temperature voice coil
Internal 800-Watt continuous power FR Series high-current amplifier
Onboard Active electronics provide equalization and high-pass filter for full-range loudpseakers.
135dB Peak Output
Frequency Response 35 Hz120 Hz
13-ply Baltic Birch enclosure finished in black splatter paint
Pole mount receptacle
Cast aluminum side handles
Signal present and limit LEDs
Picking up where our SWA1501 leaves off, the Mackie SWA1801z ups the ante with even more wattage and a bigger 18 in. transducer. The SWA1801z features an internal 800-Watt FR (Fast Recovery) Series amplifier and a high-precision 18 in. transducer custom designed for optimal performance with the amp and enclosure. Onboard Mackie Active electronics ensure seamless integration of the amplifier and transducer at all times, creating a system that is highly efficient and versatile. Add it all up and this high-output system will peel the paint right off the walls!
True Mackie active design
Active doesn't just mean the SWA1801z has an amplifier bolted on its back - it means optimized electronics that provide complete control and maximum performance over all components. The onboard Active system controls the crossover filters, equalization, protection for the transducer and electronics, and provides real time vigilance over the entire system. There is simply no way that you can get this kind of full system functionality by strapping an amp on the back of a passive speaker box.
No need for an external crossover
Connecting and setting up the SWA1801z is a breeze. It accepts a stereo or mono line-level signal via female XLR input jacks. Male XLR Thru jacks are provided for daisy-chaining the signal to additional SWA1801z cabinets. The built-in crossover routes the high frequency content to the high-pass output jacks, which can be used to feed the inputs of full-range Active speakers, such as those in the Mackie SAz Series, or an amplifier powering a pair of passive speakers. A Subwoofer Level control lets you adjust the balance between the subwoofer and the full-range speakers.
The secret to our power
The SWA1801z's built-in amplifier, which produces 800 watts continuous power, sits on a massive heatsink, eliminating the need for fans and dramatically extending life expectancy. A tremendous benefit of having the amplifier inside the subwoofer enclosure is that the SWA1801z functions as a complete system, optimizing acoustic, electronic, and mechanical designs to achieve the highest level of performance and value.
Solid wood construction
For high-output loudspeakers, real wood just sounds better-and it looks better, too! The SWA1801z enclosure is made of select 15mm Baltic birch plywood and finished in black splatter paint. Carrying handles are integrated into each side for easy loading, and casters are attached to the rear for transport. Since you will probably want the full-range enclosure nearby, a pole mount receptacle is strategically placed on top of the enclosure.
Features
800-Watt single 18 in. compact Active subwoofer system
Precision 18 in. woofer with high temperature voice coil
Internal 800-Watt continuous power FR Series high-current amplifier
Onboard Active electronics provide equalization and high-pass filter for full-range loudpseakers.
135dB Peak Output
Frequency Response 35 Hz120 Hz
13-ply Baltic Birch enclosure finished in black splatter paint
Pole mount receptacle
Cast aluminum side handles
Signal present and limit LEDs
CATALOG DESCRIPTION
Serious 18" subwoofer with power to spare@Onboard EQ and high-pass filter for full-range speakers@35Hz-120Hz frequency response with 135dB peak output@Pole mount receptacle@XLR I/O@900 watts
