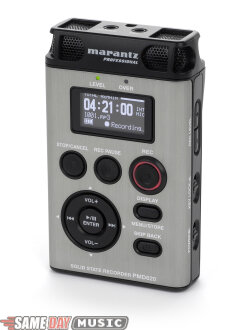

Marantz PMD620 Professional Handheld Recorder

The PMD20 is a rugged yet lightweight digital recorder that doesn't skimp on features or performance. It records to SD or SDHC cards (even the huge ones!) so storage media is affordable and readily available.

The PMD620 fits comfortably in the palm of the hand and houses two high-quality electret condenser microphones and a monitor speaker, making it ideal for go-anywhere field recording application, such as interviews, podcasting, and meeting recording - even live music.

The PMD620 can record in MP3 or WAV formats in 16 or 24 bit resolution. MP3 offers stereo 192kbps, 128kbps. and 64kbps recording. WAV offers 44.1 or 48k recording.

The PMD620 comes complete with everything needed to step into the world of high-resolution field recording:

Included Accessories
- 512MB SD Card
- Audio Cable
- CD-ROM
- USB Cable
- Handy-Strap
- AC Adapter
- Customer Registration Document (U.S. Only)
- User Guide
- Tripod/Belt-Clip Adapter

Features

True handheld portability with one-touch stereo recording

Professional recording features and flexible file formats

Digital recording with file size limited only by SD card capacity

On-board editing and playback features

Full inputs and outputs, including USB 2.0 connectivity

A true handheld, the PMD620 features an intuitive layout and tactile buttons for easy one-hand operation, while a high-contrast organic LED (OLED) screen makes setup a cinch under any lighting conditions. Just hit the Menu/Store button and the interface quickly walks you through the choices to ensure optimal recording for your needs.

The PMD620 uses convenient SD/SDHC cards, the most stable and commonly available type of flash media. Audio can be recorded either as uncompressed WAV files or any of three quality levels of MP3, in mono or stereo. So whether it's capturing an interview, a lengthy board meeting or a band's jam session, the PMD620 is always ready for action.

The PMD620 shines in post-production as well. Journalists and podcasters will especially appreciate its non-destructive on-board editing. Transcription is a breeze with its Skip Back function, and file transfers to any computer are drag-and-drop simple with the USB 2.0 connectivity. In short, the PMD620 combines ease of operation, professional recording quality and insightful features in a compact, ergonomic design.

A True Handheld with an Ergonomic Form Facto

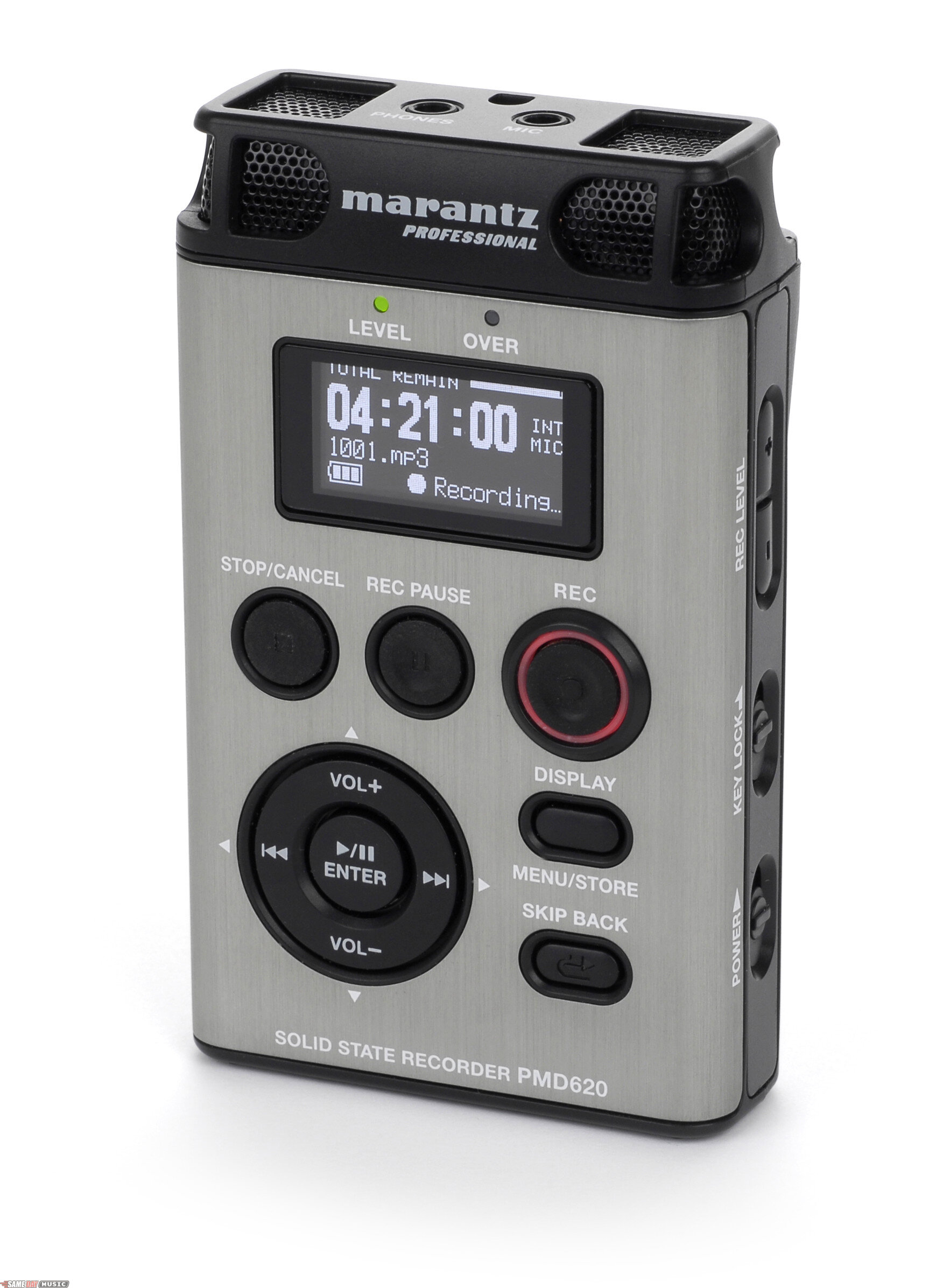

At 2.5 by 4 inches by 1 inch and weighing under 6 ounces, the PMD620 slips easily into a pocket and fits comfortably in the palm of the hand, with oversized, tactile buttons that are laid out for intuitive, one-hand operation, from recording to playback. The high contrast OLED screen provides at-a-glance status of all critical functions, even offering a large font option. Integral high quality electret condenser microphones pick up the action, while LED telltales track Peak and Level conditions.

Professional Digital Recording
The PMD620 can record uncompressed WAV files for high fidelity stereo music, or lower resolution, mono MP3 files to maximize record time. For WAV files, choose from 16- or 24-bit linear PCM recording at either 44.1 or 48 kHz sample rates. Podcasters will appreciate having a total of six MP3 bit rates available, ranging from 192 kbps stereo down to 32 kbps mono. And, the menu selectable Auto-Input feature detects whether the line input or external mic input is being used, switching off the dual integrated mics automatically.

Stability and Portability
The PMD620 is a true handheld, light in weight yet ruggedly constructed. The use of SD cards as a recording medium provides the ultimate in space efficiency and stability, with no practical limit on file size. Two AA batteries, either alkaline or NiMH rechargeables, provide upward of five hours of operation.

On-board Editing and Playback Features
The PMD620 makes field production amazingly easy. Use the integrated speaker or mini-plug headphones to monitor or transcribe. The Copy Segment function extracts a piece of audio as a separate file while keeping the original intact, while the Skip Back feature acts as a preset "back up and replay" function, programmable for audio jumps of up to 59 seconds at the touch of a button.

Connectivity and Hardware
Despite its compact, slender profile, the PMD620 offers a full array of 1/8-inch stereo connectivity, including both line and mic inputs, a Line Out for playback, and a headphone jack for monitoring. A pair of convenient Up/Down buttons allows adjustment of input sensitivity, while the USB 2.0 port makes file transfers to any computer a breeze. Once connected, the PMD620 appears as a device on your PC desktop, with all files contained in a master folder. Just drag and drop any or all of them onto your desktop.

Same Day Music is an authorized dealer of Marantz products.

Digital Audio System
Digital Audio System System: Solid State Recorder

Usable Media: SD/SDHC

Recording Format:
- MP3: MPEG1 Layer III Compression
- WAV: 16/24 Bit Linear PCM

Recording MP3 Bit Rate:
- Stereo: 192/128/64 kbps
- Mono: 96/64/32 kbps

Sample Rate: 44.1/48khz

Number of Channels: 2 (Stereo) / 1 (Mono)

Audio Performance
Frequency Response: 20Hz ~ 20kHz

Signal-to-noise Ratio:
- MIC: 68dB
- LINE: 80dB

Total Harmonic Distortion at 0UV:
- MIC: 0.06%
- LINE: 0.02%

Dynamic Range: 81dB

Inputs
External MIC:
- Type: 1/8-inch stereo jack
- Input Sensitivity: 6 mVrms/20 kohms

Line:
- Type: 1/8-inch stereo jack
- Input Sensitivity: 500 mVrms/20 kohms

Outputs
Line:
- Type: 1/8-inch stereo jack
- Standard Level: 1.0 Vrms/10 kohms

Headphone:
- Type: 1/8-inch stereo jack
- Standard Level: 16 mW/16 ohms

Speaker:
- Standard Level: 150 mW/ 8 ohms

General
Power Consumption:
- Recording/Playback: 1.5W (DC)
- Battery Level (Alkaline): 5 Hours (Typical)

Phantom Power: 5V, 1mA (Max)

Environmental Conditions:
- Operational Temperature: 0~40C (32~104F)
- Operational Humidity: 25~85% (no condensation)
- Storage Temperature: -20~60C(-4~140F)

Dimensions:
- Width: 2.5 inches (62mm)
- Height: 4 inches (102mm)
- Depth: 1 inch (25mm)

Weight: 4 oz (110g)
