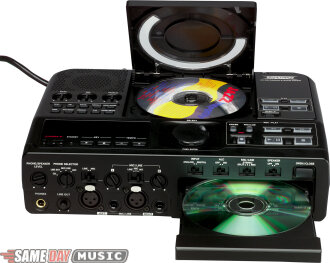

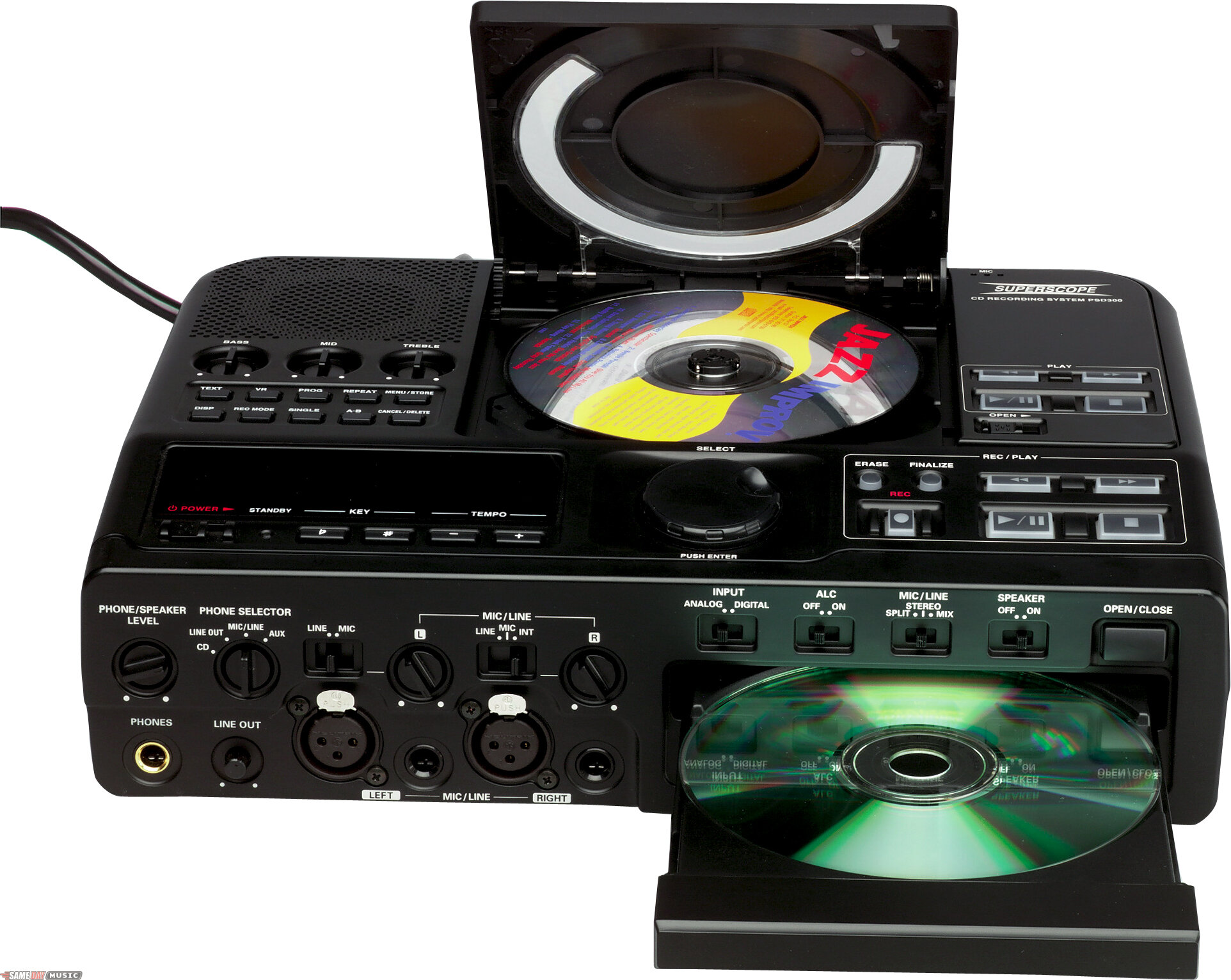

Superscope PSD300 Music Rehearsal CD Player/Recorder

This is a portable, easy-to-use tool for music practice and live recording. Use it to create custom-tailored, high-impact accompaniment CDs. Transcribe songs. Record rehearsals, auditions, and performances directly to CD.

Musicians can play along with any music CD and change the music's tempo -33% to +50% without changing key. Change key without affecting tempo as much as an octave in half steps. Fine tune any song. Select A-B practice loops. Even reduce lead vocals all in real time. Create a stereo mix of live accompaniment with music on CD and record the mix directly to CD-R and CD-RW discs that will play back in most any CD player. An internal microphone, XLR and 1/4 in. mic/line inputs and digital input/outputs provide maximum versatility for making great CD-quality digital recordings. Monitor recordings using headphone out, the built-in speaker, or external speakers. Duplicate CDs at 2X speed (half normal time) or use half-speed duplication to copy music for transcription. IR remote is included.

Use this portable system to:

Record live direct to blank CD-R (write once) or CD-RW (rewritable) discs.

Plug microphones directly into the unit for stereo recording without the need for a separate mic preamp and mixer.

Or use the built-in microphone.

Play any music CD and manipulate the key and tempo, create practice loops, or reduce lead vocal tracks all on the fly.

Plug instruments or microphones into the PSD300 and mix a live musicians with music CD accompaniment (taking advantage of innovative CD manipulation controls)

Record the mix to the CD-R/RW drive

Duplicate CDs at 2X speed

Convert a CD to half speed as a duplication option. Each note will be exactly one octave lower, at half the speed. A great tool for music transcribers.

CD Player Features

Change key in musical half steps

Change tempo -33% to +50% without changing key

Reduce lead vocals

Create A-B practice loops

CD Recorder Features

Built-in microphone and speaker

Stereo XLR & 1/4 in. mic/line inputs

Programmable mic/line EQand filtering

Automatic record level control

Computer CD-R/RW disc compatible

Convert to half speed

Same Day Music is an authorized dealer of Superscope products.

General
System: Compact Disc Digital Audio (CD-DA)
Number of channels: 2 (stereo)
Discs accepted: CD, CD-R, CD-RW
Power requirements: AC 120V 60 Hz, 21 W

Dimensions (Maximum W x H x D): 11 x 4 x 9 in. (279 x 102 x 229 mm)

Weight: 7 lbs. (3.2 kg)

Audio
Frequency response: 20 Hz - 20 kHz
ADC: 24-bit Resolution 64x oversampling
DAC: 16-bit Resolution 8x oversampling

CD-R Drive
Playback S/N: 85 dB
Playback Dynamic Range: 85 dB
Playback Total Harmonic Distortion: 0.05%
Output Voltage/Impedance (Line Output): 1.0 V/2K

CD Drive Output
Playback S/N: 75 dB
Playback Dynamic Range: 75 dB
Playback Total Harmonic Distortion: 0.1%
Output Voltage/Impedance (Line Output): 1.0 V/2K

Mic/Line Analog Line Level
S/N: 80 dB
THD: 0.05%
Input Sensitivity/Impedance: 500 mV/2K

Mic Level
S/N: 60 dB
THD: 0.2%
Input Sensitivity/Impedance: 1.2 mV/2K

AUX analog input
S/N: 85 dB
THD: 0.5%
Input Sensitivity/Impedance: 800 mV/23K

Digital Input
Sample rate: 11 kHz ~ 58 kHz

Digital Output
Output Level/Impedance: 0.5 Vp-p/75 ohm

Headphone Output (10% THD)
Level/Impedance: 70 mW/32 ohm

Speaker Output (10% THD)
Level/Impedance: 1.7 W/8 ohm

Note: Specifications are based on measurement conditions and proper care for the machine, and are subject to change without notice.
