Product Description

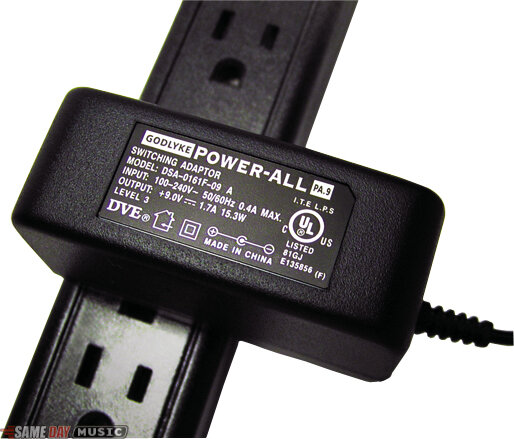

The PA-9 Power-All uses switchmode digital switching technology to offer high power in an extremely compact casing with zero noise and zero heat dissipation. This is the same type of technology that is used in many new power amps to put very high wattage amplifier circuits into single rack space chassis.

Features:
9-volt, 800 mA supply, PA-9 Power All Power Supply can power up to twenty 9-volt effect pedals or similar devices (actual amount depends on current draw of pedals used).

Modular jack assembly allows for use with virtually any effect unit - Barrel jack, Phone jack, reverse polarity, etc. Seven modular jacks are included with Switchmode Power Supply

Can replace Boss PSA-120, Boss ACA-120, DOD PS-200R, Morley 9V, Dano DA-1, Dunlop ECB-03, Ibanez AC-109, Guyatone AC-2 or any other 9-volt supply.

No transformer, thus no heat dissipation or noise (60 cycle hum)

Takes up only one socket space (unlike typical "wall wart" adaptors)

Can run off any Mains supply (100-240v), thus no need for power transformers when traveling abroad.

Has all necessary national and international safety certifications -- other brands do not!

Sold with 5-connector daisy chain cable

Includes:
1 x 9-volt, 1.7 Amp power supply with 6 ft. heavy duty power cord (industry standard tip negative/barrel positive polarity)

1 x 5-connector daisy chain cable with 12 in. leads between jacks (industry standard tip negative/barrel positive polarity)

2 x Reverse Polarity (tip positive/barrel negative) Barrel connector Jumper cords (red) - For use w/older Dunlop, certain Fulltone, etc.

2 x Battery plug (reverse polarity) Jumper cords (gray) - For use w/older effects and new boutique units that lack DC jacks (older Ibanez, older MXR, Z-Vex, etc.) - connects directly onto pedal's battery clip.

2 x 1/8 in. Phone Plug (Tip Positive/sleeve negative) Jumper cords (blue) - for use w/old DOD, Pro Co Rat, certain EH, etc.

1 x Standard Polarity (tip negative/barrel positive) Barrel connector Jumper cord (Black) - Extension cord for use w/larger, irregular sized units.

1 x Reverse Polarity (Tip Positive/Barrel negative) Barrel Connector Jumper cord (Green) - for use w/Line 6 modelers, etc. Male Barrel plug has larger internal diameter.

Please check your units power requirement specifications before connecting it to the Power-All.

NOTE - Line 6, Dunlop, Fulltone, Ibanez, MXR, Z-Vex, DOD, Pro Co, Rat, EH are all registered trademarks of their respective companies and their usage in this publication implies no endorsement by or affiliation with Godlyke, Inc.
