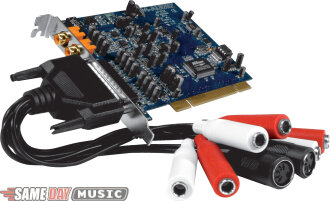

M-Audio Audiophile 192 64-Bit PCI Audio Interface
192 PCI Audio Interface (64 Bit, with Breakout Cable). Digital I/O. Balanced analog I/O.
Product rated 8.2 out of 10 (5 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
- Shure SM57 Microphone
- from $99
- Hosa Standard MIDI Cable (Black)
- from $4
- Propellerhead Reason
- from $130
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The Audiophile 192 continues the legacy of M-Audio's industry-standard Delta audio card line. Building on M-Audio's Audiophile 2496'one of the world's most popular audio cards'the Audiophile 192 features high-definition 192kHz sampling rate, digital I/O, balanced analog I/O and an amazing signal-to-noise ratio. The Audiophile 192 represents a new benchmark in audio performance that's as good as it gets for music production, mastering and critical listening.
As with all Delta cards, you get rock-solid drivers and seamless integration with your favorite Mac and PC applications'and even the ability to combine multiple Delta cards in one system*. And since M-Audio is always ahead of the pack, this world-class card is also compliant with PCI 2.2 and 64-bit audio drivers so you're ready to take advantage of next-generation platforms and software. The Audiophile 192 is the new world-class standard in stereo audio cards.
The M Audio Audiophile 192 Package Contents
Audiophile 192 PCI card
Breakout Cable
Users Manual
Maximum Audio Tools software bundle
Mac and Windows driver software
Audiophile 192 Features
Up to 24-bit/192kHz audio
2 balanced analog inputs (1/4 in. TRS)
2 balanced analog outputs (1/4 in. TRS)
S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM
SCMS copy protection control
Digital I/O supports surround-encoded AC-3 and DTS pass-through**
Direct hardware input monitoring via separate balanced 1/4 in. TRS monitor outputs
Software routing of inputs and outputs
Digital I/O can be routed to/from external effects
16-channel MIDI I/O
ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with most applications
64-bit driver support for Windows
PCI 2.2 compatibility
Works with other Delta cards*
* check "Item Specs" for current system requirements
** Windows XP required for Dolby Digital and DTS 'pass-through'; Mac OS 10.3.4 required for Dolby Digital and DTS 'pass-through' with Apple DVD Player
As with all Delta cards, you get rock-solid drivers and seamless integration with your favorite Mac and PC applications'and even the ability to combine multiple Delta cards in one system*. And since M-Audio is always ahead of the pack, this world-class card is also compliant with PCI 2.2 and 64-bit audio drivers so you're ready to take advantage of next-generation platforms and software. The Audiophile 192 is the new world-class standard in stereo audio cards.
The M Audio Audiophile 192 Package Contents
Audiophile 192 PCI card
Breakout Cable
Users Manual
Maximum Audio Tools software bundle
Mac and Windows driver software
Audiophile 192 Features
Up to 24-bit/192kHz audio
2 balanced analog inputs (1/4 in. TRS)
2 balanced analog outputs (1/4 in. TRS)
S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM
SCMS copy protection control
Digital I/O supports surround-encoded AC-3 and DTS pass-through**
Direct hardware input monitoring via separate balanced 1/4 in. TRS monitor outputs
Software routing of inputs and outputs
Digital I/O can be routed to/from external effects
16-channel MIDI I/O
ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with most applications
64-bit driver support for Windows
PCI 2.2 compatibility
Works with other Delta cards*
* check "Item Specs" for current system requirements
** Windows XP required for Dolby Digital and DTS 'pass-through'; Mac OS 10.3.4 required for Dolby Digital and DTS 'pass-through' with Apple DVD Player
TECHNICAL DESCRIPTION
Line In (Balanced)
@96kHz > Max Input: +14.2 dBu (+3.993 Vrms), +14.2 dBu (+3.991 Vrms)
Signal-to-noise Ratio: 111.5 dB, -111.4 dB
Dynamic Range: A-weighted 111.5 dB, 111.8 dB
THD+N: 0.00253%(-92.0 dB), 0.00252% (-92.0 dB)
Frequency Response:
-0.08 / +0.00 dB, 22 to 40000 Hz -0.07 / +0.00 dB, 22 to 40000 Hz
Main Out (Balanced) Max Output
+13.9 dBu (+3.859 Vrms)
+13.9 dBu (+3.850 Vrms)
Signal-to-noise Ratio: -109.5 dB, -109.3 dB
Dynamic Range: A-weighted 109.6 dB, 109.5 dB
THD+N: 0.00264%(-91.6 dB), 0.00271% (-91.3 dB)
Frequency Response:
-0.17 / +0.02 dB, 22 to 40000 Hz
-0.11 / +0.06 dB, 22 to 40000 Hz
Monitor Out (Balanced) Max Output
+13.9 dBu (+3.852 Vrms)
+14.0 dBu (+3.861 Vrms)
SNR: A-weighted: -102.9 dB, -101.6 dB
Dynamic Range: A-weighted 102.9 dB, 101.8 dB
> THD+N:
0.00337%(-89.5 dB)
0.00362% (-88.8 dB)
Frequency Response:
-0.17 / +0.02 dB, 22 to 40000 Hz
-0.11 / +0.06 dB, 22 to 40000 Hz
Sampling Rates (k): 44.1, 48, 88.2, 96, 76.4, 192
Minimum Requirements (PC)
Windows XP (SP1)/2000 (SP4)*
96kHz and 192kHz Operation: Pentium III 500MHz w/128MB RAM
48KHz Operation: Pentium II 400 w/64MB RAM
Windows XP (SP1) required for Dolby Digital and DTS "pass-through"
Windows 2000 only supports sample rates up to 96kHz
Minimum Requirements (Mac)
G4 500MHz with OS 10.2.8 or 10.3.4+, 256MB RAM
G3/G4 accelerator cards not supported; OS 10.3.4+ required for Dolby Digital and DTS "pass-through" with Apple DVD Player
@96kHz > Max Input: +14.2 dBu (+3.993 Vrms), +14.2 dBu (+3.991 Vrms)
Signal-to-noise Ratio: 111.5 dB, -111.4 dB
Dynamic Range: A-weighted 111.5 dB, 111.8 dB
THD+N: 0.00253%(-92.0 dB), 0.00252% (-92.0 dB)
Frequency Response:
-0.08 / +0.00 dB, 22 to 40000 Hz -0.07 / +0.00 dB, 22 to 40000 Hz
Main Out (Balanced) Max Output
+13.9 dBu (+3.859 Vrms)
+13.9 dBu (+3.850 Vrms)
Signal-to-noise Ratio: -109.5 dB, -109.3 dB
Dynamic Range: A-weighted 109.6 dB, 109.5 dB
THD+N: 0.00264%(-91.6 dB), 0.00271% (-91.3 dB)
Frequency Response:
-0.17 / +0.02 dB, 22 to 40000 Hz
-0.11 / +0.06 dB, 22 to 40000 Hz
Monitor Out (Balanced) Max Output
+13.9 dBu (+3.852 Vrms)
+14.0 dBu (+3.861 Vrms)
SNR: A-weighted: -102.9 dB, -101.6 dB
Dynamic Range: A-weighted 102.9 dB, 101.8 dB
> THD+N:
0.00337%(-89.5 dB)
0.00362% (-88.8 dB)
Frequency Response:
-0.17 / +0.02 dB, 22 to 40000 Hz
-0.11 / +0.06 dB, 22 to 40000 Hz
Sampling Rates (k): 44.1, 48, 88.2, 96, 76.4, 192
Minimum Requirements (PC)
Windows XP (SP1)/2000 (SP4)*
96kHz and 192kHz Operation: Pentium III 500MHz w/128MB RAM
48KHz Operation: Pentium II 400 w/64MB RAM
Windows XP (SP1) required for Dolby Digital and DTS "pass-through"
Windows 2000 only supports sample rates up to 96kHz
Minimum Requirements (Mac)
G4 500MHz with OS 10.2.8 or 10.3.4+, 256MB RAM
G3/G4 accelerator cards not supported; OS 10.3.4+ required for Dolby Digital and DTS "pass-through" with Apple DVD Player
CATALOG DESCRIPTION
24-bit, 192kHz PCI card interface@2 channels of TRS analog I/O, MIDI I/O, and coaxial S/PDIF I/O@Surround-encoded AC-3 and DTS pass-through@Compatible with Pro Tools M-Powered
