Product Description

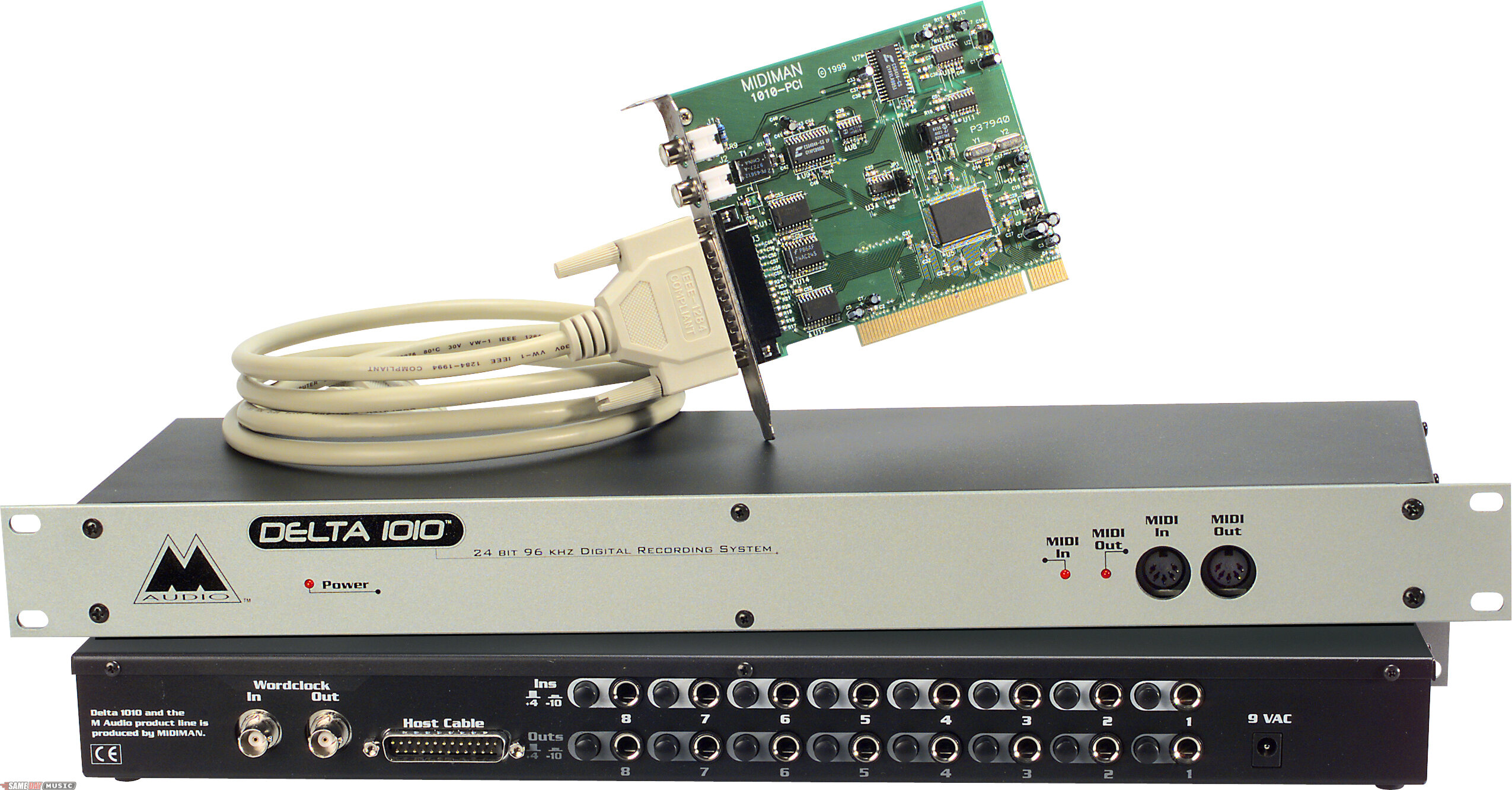

The Delta 1010 stands at the forefront of digital audio's evolution, making available a level of performance previously unattainable. Unrivaled in its integrity, the Delta 1010 shores up what used to be the Achilles' heel of any computer-based system: the transfer and conversion of audio between the outside world and the computer. With 24-bit 96kHz bandwidth and expansive flexibility, the Delta 1010 boasts 8 balanced or unbalanced analog I/Os, S/PDIF I/O, Word Clock I/O, and MIDI I/O to guarantee connectivity in any installation. To ensure that your audio is not compromised by your computer's internal noise, the Delta 1010's converters reside in a rock-solid, external, rack-mountable chassis. The power transformer is even located outside of the chassis to further secure the absolute transparency of your audio.

Performance
All data paths support all bit widths and sampling rates up to 24-bit/96kHz

High dynamic range (A-weighted measured): D/A 108db, A/D 109db

Low distortion (measured THD @0dBFS): D/A less than 0.0015%, A/D less than 0.001%

Hardware
Configured as PCI host card with external rackmount unit, which houses all converters

8x8 analog I/O is balanced or unbalanced on 1/4 in. TRS connectors.

+4/-10 operation, individually switchable on the external rackmount unit

S/PDIF I/O on PCI host card.

Full duplex operation

Word Clock I/O

MIDI I/O

Technical Description

Express System Requirements

Windows 95/98/NT

Pentium 120 MHz, 16 MB RAM

Windows-compatible MIDI interface required for MIDI recording

Metro System Requirements

MIDI Only:
Power PC/iMac with 8MB of RAM or more

Mac-compatible MIDI interface

OMS and Quicktime musical instruments for internal playback

Mac OS system 7.0 or later

MIDI and Audio:
Power PC/iMac capable of 16 bit audio input

32 MB or greater (realtime effects require more)

Sound Manager 3.2 or later

System 7.0 or later

Catalog Description

8-channel analog I/O with a 1-rack space breakout box@Up to 24/96 resolution@2 channels via S/PDIF@Word clock and MIDI I/O@Includes version of Ableton Live@Compatible with Pro Tools M-Powered
