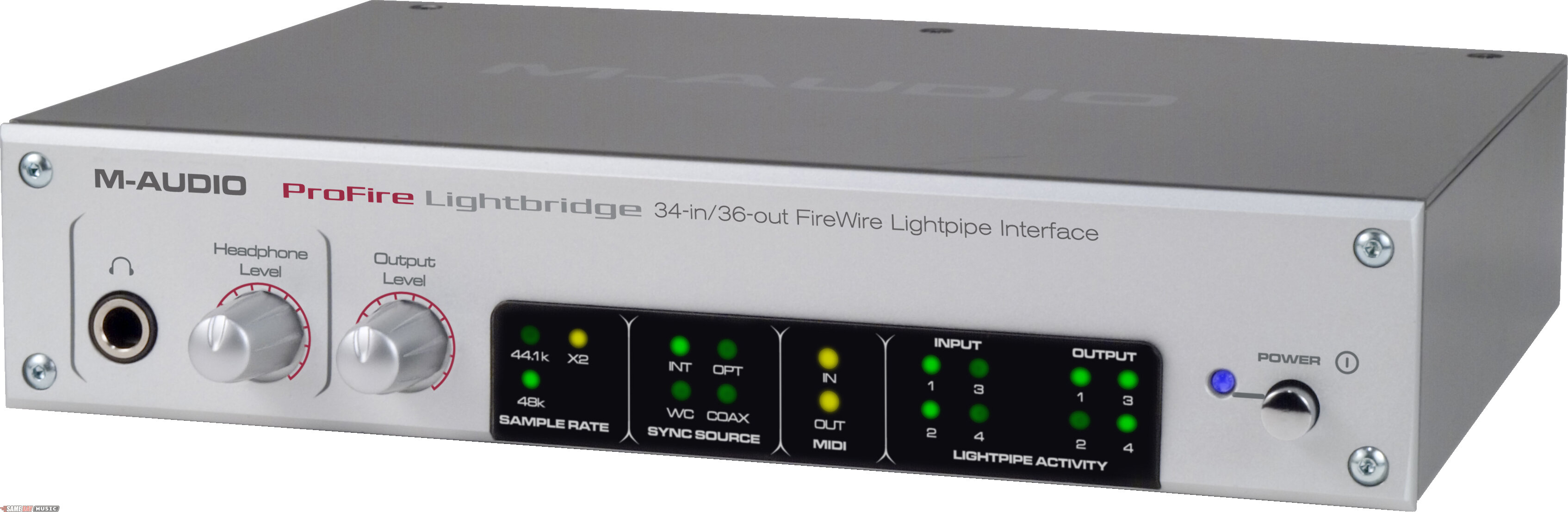

The ProFire Lightbridge interfaces up to four Lightpipe devices with a PC or Mac via FireWire -- perfect for integrating digital mixers, AD/DA converters and/or ADATs with most popular DAW software. The unit is capable of 32 channels of Lightpipe I/O, S/PDIF I/O and 2-channel analog output for a total of 34 x 36 concurrent channels at 44.1 or 48kHz sample rates. (It also supports 16-channel Lightpipe operation at 88.2 and 96kHz sample rates via the SMUX protocol.) The ProFire Lightbridge can output word clock as a master, or slave to external sync on any input, and MIDI I/O also accommodates MIDI Time Code and MIDI Machine Control. Independent volume controls are provided for the 1/4 in. balanced outputs and front panel 1/4 in. headphone jack. The ProFire Lightbridge is compatible with most DAW software.
Features:
32-channel Lightpipe I/O at 44.1 or 48kHz
16-channel Lightpipe I/O at 88.2 or 96kHz using SMUX
S/PDIF I/O (via included breakout cable, coax)
2 x 1/4 in. TRS analog outputs with dedicated level control
All analog and digital I/O active simultaneously (total of 34 x 36 concurrent channels at 44.1 or 48kHz; 18 x 20 at 88.2 or 96kHz)*
Word clock I/O (via included breakout cable, BNC)
MIDI I/O (via included breakout cable)
1/4 in. front-panel headphone out with dedicated level control
Up to 24-bit/96kHz operation
FireWire connectivity to computer
Indicators for sample rate, Lightpipe I/O, MIDI I/O, sync source and power
Kensington lock slot
Half-space rack chassis, optional mounting tray
Compatible with most major DAWs
Maximum of 18 simultaneous I/O's with Pro Tools M-Powered.
The Perfect Companion for Digital Mixers
The ProFire Lightbridge is designed with today's digital mixers and workflow in mind. Record up to 32 Lightpipe tracks to your computer-based DAW simultaneously from a digital mixer. Or use your mixer to submix up to 32 DAW tracks while sending the submix back to the DAW via S/PDIF. Using the mixer's built-in processing and automation leaves more CPU power for specific tracks that require CPU-intensive plug-ins.
Transfers
Need to transfer tracks between an ADAT system and your computer? The ProFire Lightbridge does it with ease. Send up to 32 channels of Lightpipe simultaneously at 44.1 or 48kHz -- or transfer up to 16 channels at 88.2 or 96kHz using the SMUX protocol.
Build a Custom I/O Setup with the AD/DA Converters of Your Choice
ProFire Lightbridge plays nice with others too. Pick any ADAT-compatible A/D or D/A converter and utilize our fast and reliable FireWire driver technology to get the most out of your DAW.
Live Multitrack Recording
Combine the ProFire Lightbridge with up to four award-winning M-Audio Octane 8-channel preamps and you have a compact system for recording up to 32 Lightpipe channels of input for live shows
Compatibility
ASIO II
WDM
Core Audio
GSIF II
FireWire interface with 32 channels of optical ADAT I/O@Coaxial S/PDIF I/O@2-channel TRS analog output@34x36 throughput at 44.1 or 48kHz@SMUX protocol allows 16 channel optical I/O at 88.2 or 96kHz@MIDI and word clock I/O@Headphone output
