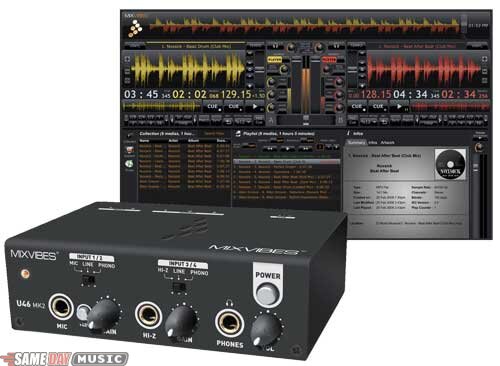

MixVibes U46MK2 USB DJ Audio Interface

Designed for DJs and musicians, this soundcard offers multiple outputs and inputs. 2 stereo line/phono inputs are available for encoding vinyl records or any line RCA source. One MIC input with +48V Phantom Power and gain control enable microphone recording. Another Hi-Z input has been designed for Bass or Guitar plug in. 6 line level analog outputs allow you to connect various external devices, even a 5.1 DVD surround system.

Software Included
MixVibes CROSS LE software is now bundled with the U46MK2. This new DJ software brings MixVibes' know-how and experience to Mac OSX and Windows users. The first aim of CROSS LE is to reintegrate the DJ's music as the centrepiece of his performance by simplifying media browsing and offering intuitive features with crystal clear sound rendering.

Same Day Music is an authorized dealer of MixVibes products.

Specifications
Interface:
- USB Spec Ver1.1, USB Audio Class Spec Ver1.0

Analog Input:
- 4 Channel Analog inputs / Line, Phono, Mic, Hi-Z input support
- Line Input Level: -10dBV Unbalanced Nominal level, +6dBV Maximum level
- Input Impedance - Line: 10K ohm
- Phono: 47K ohm and 200pF
- MIC: 6.8K ohm
- Hi-Z: 200K ohm or better
- +48V Phantom power support for Microphone input

Analog Output:
- 6 Channel Analog outputs and Mix outputs
- Line Output Level: -10dBV Unbalanced Nominal level, +6dBV Maximum level.
- Output Impedance: 100 ohms

ADC:
- Dynamic Range: 85dB A-Weighted (Typical).
- Frequency Response: 20 ~ 20 kHz (+/- 0.25dB MAX, @ fs=48 kHz).
- Resolution: 18 Bits

DAC:
- Dynamic Range: 87dB A-Weighted (Typical).
- Frequency Response: 20 ~ 20 kHz ((+/- 0.25dB MAX, @ fs=48 kHz).
- Resolution: 20 Bits.

Headphone Amp:
- Output Power: 125mW Max @ 32 ohm.
- Recommended Load Impedance: 32 ~ 300 ohm.

Power:
- Power consumption: 2.5W (Typical).
- USB Bus powered (500mA Maximum) and DC +9V/500mA Adapter support.

System Requirements
Windows XP:
- Pentium III 1 Ghz or equivalent
- 1 GB RAM
- Service Pack 2 or higher
- Hard disk space for music

Windows Vista:
- Pentium III 1 Ghz or equivalent
- 1 GB RAM
- Service Pack 1 or higher
- Available USB Port
- Hard disk space for music

Mac:
- 1 GHz G4 or 1.83 GHz Intel Core Duo
- 1 GB RAM
- OS X 10.4
- Available USB Port
- Hard disk space for music

Note: This is the minimum requirement. MixVibes recommends you use a higher spec computer.
