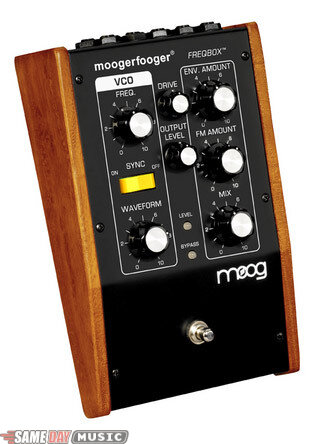

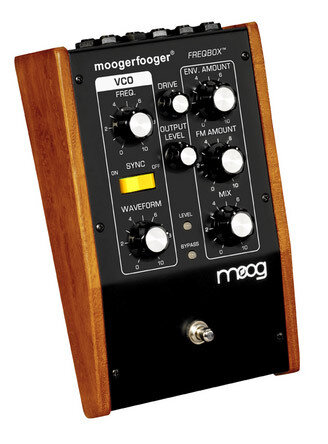

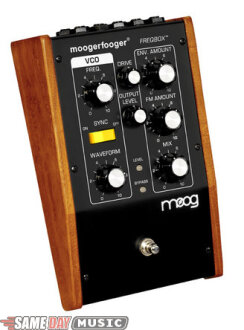

    Moog Music MF-107 Moogerfooger FreqBox Audio Modulated Oscillator Synthesizer Pedal

    Single VCO in a pedal. Can Sync with input source.
    Product Rated 10 Out of 10 (1 rating)
    **********
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 16XN-DGQN

    Web Item #MOOMF107

    Moogerfooger MF107 FreqBox Synth Pedal

    More Resources

    Manuals and Documents: Manual
    Moog Music Warranty: If you have additional warranty questions, please call the manufacturer at 828-251-0090
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $4
    • Overnight: $24
    SpeedPlay: 2 payments of $177.00
    $354 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Moog Music MF-107 Moogerfooger FreqBox Synthesizer Pedal Product Description

    The MF-107 FreqBox is different from other effects -- the effected sound is not a processed version of your input signal, but the sound of the input signal modulating an internal oscillator. It contains a VCO with continuously variable waveshape, and the capacity to modulate that Oscillator in the following ways:

    VCO can be hard synced by the input signal

    VCO can be frequency modulated (FM) by the input signal

    VCO frequency can be modulated by an envelope follower which tracks the dynamics of the input signal

    The Amplitude of the VCO also tracks the dynamics of the input signal

    Hard sync is a classic analog synthesis technique where the start of an oscillator's cycle can be reset by another. The oscillator being synced takes on the frequency characteristics of the other oscillator, and when its frequency is swept, it reinforces the harmonics of the fundamental frequency. In the case of the FreqBox, the input signal is used to reset the FreqBox's VCO.

    FM is a technique used to get really rich sounds from simple waveforms. The type of FM used in the FreqBox is linear FM. Sounds range from gong or bell-like tones to sizzly sweeps.

    The FreqBox, like all moogerfoogers, works with any instrument to line-level input. In addition to the panel controls there are control inputs for use with expression pedals or control voltages and control outputs for interconnecting moogerfoogers like you would a modular synth.

    The FreqBox can provide some really unusual processing to all types of signals - guitars, synths, drum sounds, vocals or wind instruments allowing you to enter previously unexplored sonic territory.

    The MF-107 Freq Box contains an analog VCO with continuously variable waveform which can be modulated by the audio input signal. Modulation of the VCO includes: hard sync, Frequency Modulation, and modulation of the VCO frequency by an envelope follower. The amplitude of the VCO is controlled by the amplitude of the input signal.

    Front Panel Controls
    Frequency: sets the frequency of the VCO.

    Wave: Morphs the VCO waveform from Triangle to Sawtooth to Square to skinny pulse.

    Sync On/Off: Enables/ Disables Hard sync of the VCO by the audio input signal.

    Env. Amount: Sets the amount of modulation of the VCO frequency by the Envelope
    Follower.

    FM Amount: Sets the amount of frequency modulation of the VCO by the audio input signal.

    Mix: Sets the blend of input signal and VCO signal

    Drive: Sets the input sensitivity and gain of the effect when active. Half to full drive amount adds overdrive.

    Output level: Sets the output level of the effect when active.

    Bypass Switch: Bypass LED is red when effect is off, and green when effect is on. The MF-107 uses a high quality buffered bypass - when in bypass, the input is disconnected from the effects' electronics.

    I/O
    Input and output connections are on 1/4 in. jacks.

    Audio Input: accepts instrument level to line level inputs.

    Freq: Accepts EP-1 expression pedal, or -5 to +5V Control Voltage to set the frequency of the VCO. Input voltage is added to position of the front panel Frequency control.

    Wave: Accepts EP-1 expression pedal, or -5 to +5V Control Voltage to set the waveform of the VCO. Input voltage is added to position of the front panel Wave control.

    Env. Amt: Accepts EP-1 expression pedal, or 0 to +5V Control Voltage to set the amount of envelope follower modulation of the VCO frequency. Input voltage is added to position of the front panel Env. Amount control.
    FM Amt: Accepts EP-1 expression pedal, or 0 to +5V Control Voltage to set the amount of frequency modulation of the VCO by the audio input. Input voltage is added to position of the front panel FM Amount control.

    Mix: Accepts EP-1 expression pedal, or 0 to +5V Control Voltage to set the waveform of the VCO. Input voltage is added to position of the front panel Mix control.

    Audio Out: Supplies the output signal.

    Env Out: Outputs the unconditioned Envelope Follower Control Voltage signal.

    Osc Out: Outputs the wave-shaped VCO signal as a +/-2.5V Control Voltage signal.

    Same Day Music is an authorized dealer of Moog Music products.

    Moog Music MF107 Moogerfooger Technical Description

    Voltage Controlled Oscillator (VCO) with frequency and waveform controls
    Wide range of effects, from fuzz distortion to modular synth-style creations
    Controls for drive, output level, envelope amount, FM amount, and mix
    Indicator lights for level and bypass
    VCO also controllable via external expression pedal (optional)
    Inputs 1 x Instrument
    Outputs 1 x 1/4"
    Power Supply Included Yes
    Batteries No batteries
    Height 2.5"
    Depth 9"
    Width 6"
    Weight 2 lbs.
    Manufacturer Part Number MF-107-0001

    Same Day Music is an authorized dealer of Moog Music products.
    Shipping Weights and Dimensions
    Shipping Weight: 4 lbs
    Shipping Dimensions: 14 x 7 x 6 in
