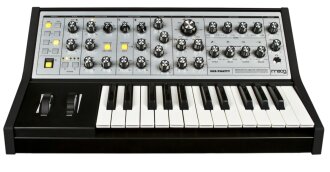

Moog Music Sub Phatty Analog Synthesizer Keyboard, 25-Key

The Moog Sub Phatty has the soul and hands-on control of a vintage Moog synthesizer in a completely new, aggressive sound design machine. It has 25 keys, 31 knobs, and 13 switches that connect you directly to the analog heart of this powerful instrument.

Its oscillators have been designed to perform with unmatched clarity, and accuracy in any environment with no warm-up time necessary. They are fat, punchy and loaded with harmonic content.

A new Multidrive circuit in the filter section totally transforms the sound of this analog synthesizer into a screaming beast. Create gritty attack, asymmetrical distortion, and saturated hard-clipping sounds that tear through the densest mix.

The mixer section houses a powerful square wave sub oscillator designed to add depth, thickness, and side splitting bass to any sound. In addition to this, a specially voiced noise generator has been incorporated for sculpting hard hitting, all analog percussion sounds and other sound effects.

The Sub Phatty joins the Moog arsenal with a new and boldly unique voice. Its engaging and dynamic interface fuses a connection between man and machine that opens the door to unprecedented sonic exploration.

Same Day Music is an authorized dealer of Moog Music products.

Sound Engine: Analog
Number of Keys: 25
Type of Keys: Semi-Weighted
Other Controllers: Pitch Bend, Mod Wheel
Polyphony: Monophonic
Sound Sources:
- 2 Variable Waveshape Oscillators
- 1 Square Wave Sub Oscillator
- 1 Noise Generator
Oscillator Calibration Range: 22Hz - 6.8KHz.
Guaranteed note range at 8' of Note 18 to 116
Mod Sources: Triangle, Square, Saw, Ramp, SH, Filter Envelope
Mod Destinations: Pitch, Osc 2 Pitch Only, Filter, Waveshape
Filter: Moog Ladder Filter 20Hz-20Khz
Audio Input: 1xTS
Audio Output: 1xTS, 1xTRS Headphone
Presets: 4 Banks, 4 Patches Per Bank
MIDI I/O: DIN In, Out, and MIDI over USB
CV/Gate Inputs: Filter CV, Pitch CV, Volume CV, KB Gate
Transposition: +/- 2 Octaves
LFO: 0.1Hz-100Hz

Under-The-Hood Features:
Filter Velocity Sensitivity
Volume Velocity Sensitivity
Ext. Audio Level
Osc2 Beat Frequency
VCO Gate Reset
LFO Gate Reset
Pitch Bend Up Amount
Pitch Bend Down Amount
Glide Legato
Glide Type
Filter Poles
Wave Mod. Destination
LFO KB Tracking
LFO Range
Filter EG Reset
Amp EG Reset
Legato
Gate On/Ext.
MIDI Ch. In
MIDI Ch. Out
Local Control
14-Bit MIDI Output
MIDI Path In
MIDI Path Out
MIDI Merge DIN
MIDI Merge USB

Same Day Music is an authorized dealer of Moog Music products.

Shipping Weights and Dimensions

Shipping Weight: 21 lbs

Shipping Dimensions: 25 x 17 x 10 in
