Marshall Electronics MXL770 Condenser Microphone with Shockmount and Case
20 mm. Gold-sputtered, 6-micron, low distortion diaphragm. Switchable bass cut and -10db pad.
Product rated 8.0 out of 10 (6 ratings)
Read Reviews >>
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Frequency Response
Case
Polar Plot
Shockmount
PRODUCT DESCRIPTION

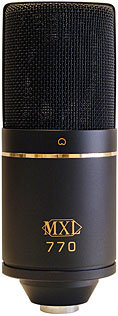

The Marshall MXL 770 is the latest in affordable condenser microphone technology.
Although the MXL 770 is a consumer-priced microphone, it delivers completly professional sonics and features. A true, phantom powered, condenser microphone with a 6-micron, 20-mm. gold-sputtered diaphragm, the MXL 770 delivers a silky up-front high end and a solid low frequency sound. The MXL 770 has a high quality FET preamp and its output is balanced with a wide dynamic range. The MXL 770 is perfectly suited for digital and analog recording.
Features
20 mm. Gold-sputtered, 6-micron, low distortion diaphragm
FET preamp with balanced output
Switchable bass cut and -10db pad
Legendary MXL sonic characteristics
Comes with shock mount and rugged carrying case
Although the MXL 770 is a consumer-priced microphone, it delivers completly professional sonics and features. A true, phantom powered, condenser microphone with a 6-micron, 20-mm. gold-sputtered diaphragm, the MXL 770 delivers a silky up-front high end and a solid low frequency sound. The MXL 770 has a high quality FET preamp and its output is balanced with a wide dynamic range. The MXL 770 is perfectly suited for digital and analog recording.
Features
20 mm. Gold-sputtered, 6-micron, low distortion diaphragm
FET preamp with balanced output
Switchable bass cut and -10db pad
Legendary MXL sonic characteristics
Comes with shock mount and rugged carrying case
TECHNICAL DESCRIPTION
Type: Condenser pressure gradient mic with large 22 mm. diaphragm
Frequency Range: 30Hz-20kHz
Polar Pattern: Cardioid
Sensitivity: 10mV/Pa
Impedance: 200 Ohms
S/N Ratio: 80dB (Ref. 1Pa A-weighted)
Equivalent Noise Level: 18dB (A weighted IEC 268-4)
Maximum SPL for 0.5% THD: 134dB
High Pass Filter: 6dB/octave, 150HZ
Attenuator Switch: 0/-10dB
Power Requirements: Phantom Power 48V ±4V
Size: 60mm x 154mm
Weight: 420g
Metal Finish: Black
Frequency Range: 30Hz-20kHz
Polar Pattern: Cardioid
Sensitivity: 10mV/Pa
Impedance: 200 Ohms
S/N Ratio: 80dB (Ref. 1Pa A-weighted)
Equivalent Noise Level: 18dB (A weighted IEC 268-4)
Maximum SPL for 0.5% THD: 134dB
High Pass Filter: 6dB/octave, 150HZ
Attenuator Switch: 0/-10dB
Power Requirements: Phantom Power 48V ±4V
Size: 60mm x 154mm
Weight: 420g
Metal Finish: Black
