Mark of the Unicorn (MOTU) 828mk3 Firewire Audio Interface
On-board effects and mixing, CueMix. 7-Band British-style EQ.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
- Shure SM57 Microphone
- from $99
- Audio-Technica AT2020
- from $99
- Whirlwind MC20 Mic Cable
- from $10
- Hosa Standard MIDI Cable (Black)
- from $4
ADDITIONAL VIEWS:

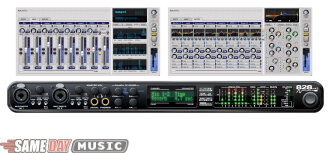

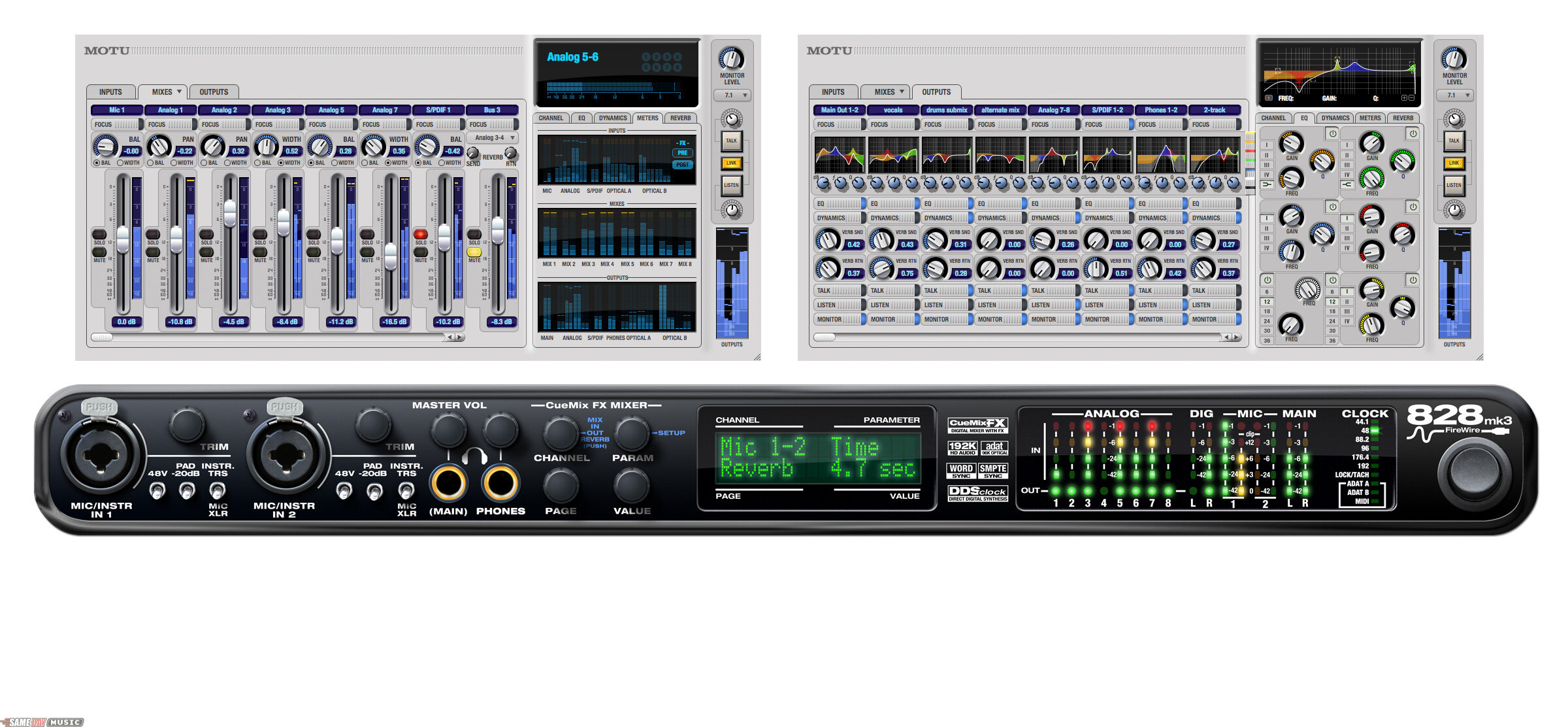

Main
Back Panel
PRODUCT DESCRIPTION
The 828mk3 is a cross-platform 1U-rack mount FireWire audio interface with on-board effects and mixing. Apply hardware-based effects to all 28 inputs and 30 outputs via an on-board DSP-driven 8 stereo bus digital mixer with 32-bit floating point precision. Effects include Classic Reverb with tail lengths up to 60 seconds, 7-band parametric EQ modeled after British analog consoles, and vintage compression (automatic gain control) modeled after the legendary LA-2A optical leveling amplifer. Effects can even be applied when the 828mk3 is operating stand-alone (without a computer) as a complete rack-mounted mixer.
Connect a wide variety of studio gear to the 828mk3, including microphones, guitars, synths, keyboards, drum machines and even effects processors via 8 balanced TRS analog in/out, two banks of optical (ADAT and TOSLink formats) and S/PDIF digital I/O. Monitor everything via XLR main outs, surround output and two front-panel phone jacks with independent volume control. Two front-panel mic/guitar combo inputs are equipped with transparent preamps, digitally controlled trim with plenty of gain, XLR mic input, true high-impedance guitar input, individual 48V phantom power switch, 20 dB pad, and V-Limit, a hardware limiter that helps prevent digital clipping from overloaded input signals as high as +12 dB above zero with no distortion. Additional protection can be applied with Soft Clip.
All 828mk3 analog inputs are equipped with digitally controlled analog trim controls that allow adjustments in precise 1 dB increments. The mic/guitar input trims can be adjusted using front-panel digital rotary encoders that provide feedback in the front panel LCD, while all quarter-inch TRS inputs can be trimmed from the included cross-platform CueMix FX software. Different trim configurations can be saved as files on disk for instant recall.
Additional advanced features include 192 kHz operation, Direct Digital Synthesis (DDS) precision clocking, direct SMPTE time code sync (no extra synchronizer needed), MIDI I/O and much more. The 828mk3 provides CueMix FX and drivers for Mac (OS X) and Windows (XP and Vista) for cross-platform compatibility with virtually all audio software via WDM/ASIO/Core Audio drivers. The included AudioDesk workstation software for Mac provides 24-bit recording/editing and 32-bit mixing/processing/mastering.
Connect a wide variety of studio gear to the 828mk3, including microphones, guitars, synths, keyboards, drum machines and even effects processors via 8 balanced TRS analog in/out, two banks of optical (ADAT and TOSLink formats) and S/PDIF digital I/O. Monitor everything via XLR main outs, surround output and two front-panel phone jacks with independent volume control. Two front-panel mic/guitar combo inputs are equipped with transparent preamps, digitally controlled trim with plenty of gain, XLR mic input, true high-impedance guitar input, individual 48V phantom power switch, 20 dB pad, and V-Limit, a hardware limiter that helps prevent digital clipping from overloaded input signals as high as +12 dB above zero with no distortion. Additional protection can be applied with Soft Clip.
All 828mk3 analog inputs are equipped with digitally controlled analog trim controls that allow adjustments in precise 1 dB increments. The mic/guitar input trims can be adjusted using front-panel digital rotary encoders that provide feedback in the front panel LCD, while all quarter-inch TRS inputs can be trimmed from the included cross-platform CueMix FX software. Different trim configurations can be saved as files on disk for instant recall.
Additional advanced features include 192 kHz operation, Direct Digital Synthesis (DDS) precision clocking, direct SMPTE time code sync (no extra synchronizer needed), MIDI I/O and much more. The 828mk3 provides CueMix FX and drivers for Mac (OS X) and Windows (XP and Vista) for cross-platform compatibility with virtually all audio software via WDM/ASIO/Core Audio drivers. The included AudioDesk workstation software for Mac provides 24-bit recording/editing and 32-bit mixing/processing/mastering.
