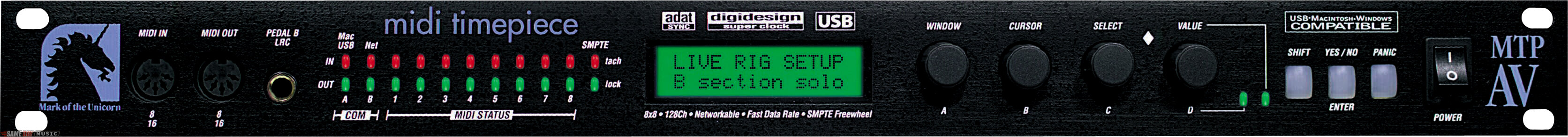

Mark of the Unicorn (MOTU) MIDI Timepiece AV Interface USB (Macintosh and Windows)
Internal power supply. 4 programmable front-panel knobs. Front panel MIDI in and out ports.
Product rated 9.6 out of 10 (9 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa Standard MIDI Cable (Black)
- from $4
ADDITIONAL VIEWS:
Main
Rear
PRODUCT DESCRIPTION
8x8 MIDI Interface/Synchronizer/Patchbay/Merger (Mac)
Mark of the Unicorn introduces the MIDI Timepiece AV. Combine MIDI with ADATs, ProTools, or video. The MIDI Timepiece AV takes MOTU's world-renowned MIDI Time Piece II and adds synchronization that you really need, like video genlock, ADAT sync, and word clock sync. Even Digidesign superclock.
Slave ADATs, Digidesign hardware, or word-clock compatible devices to SMTPE and video. Drive your ADATs from your sequencer without an Alesis BRC. Or control everything from an MMC controller like JL Cooper's CuePoint. The MTP AV pulls it all together for stable, centralized, hassle-free synchronization and MIDI networking. For Macintosh and stand-alone setups.
The MIDI Time Piece AV provides 8 discrete MIDI cables (in and out) for your computer. This allows you to use 128 independent MIDI channels. To expand beyond this, you can network up to 4 MTPs for a total of 512 MIDI channels. You can even connect 2 computers to an MTP AV network.
The MTP AV is also an 8x8 merger and router. You can merge any combinations of the 8 inputs simultaneously to any combination of the 8 outputs. Because the MTP AV's internal memory can be programmed from the front panel,the MTP AV is the perfect choice for live performance applications where fast and flexible MIDI patching is essential. You can take the MTP AV on the road because it can operate with or without a computer. The MTP AV can be set to change scenes in response to patch changes, allowing remote control from any MIDI controller.
Features
Stand-alone MIDI patchbay/merger/processor
Synchronization for ADAT, digital audio, and video
ADAT Sync Out, Word Sync Out, and Video Sync In
8x8 MIDI merge matrix
Fully programmable from the front panel
8 independent MIDI IN
8 independent MIDI OUT
128 MIDI channels
Fast/1x mode for high-speed MIDI data transfer
128 scene, battery-backed memory
Recall setups via MIDI patch change
Includes software for Macintosh
Works with Alesis LRC remote control unit
Network 2 units for 16 MIDI IN and OUT and 256 MIDI channels
Fully network-compatible with MTP I and MTP II
Compatible with any software that supports the MTP II
Network units up to 1,000 feet apart
Network up to 4 units for 512 MIDI channels
Expand as your MIDI rig expands!
MIDI Processing
Merge any inputs to any outputs
Route any inputs to any outputs
Mute any MIDI data on any cable
Re-channelize on input and output
Synchronization
SMPTE time code (LTC) generator and reader
Converts LTC to MIDI Time Code (MTC), ADAT Sync, and word clock (1x or Digidesign 256x "Superclock")
Converts MTC to LTC, ADAT Sync, and word clock (or Digidesign "superclock")
Genlocks to video or blackburst and converts to LTC, MTC, ADAT Sync, and word clock (or Digidesign "superclock")
SMPTE "Jam Sync" for dropout-free sync
Adjustable Freewheeling
Supports all SMPTE frame rates (24, 25, 29.97 drop/non-drop, 30 drop/non-drop)
0.1% pull-up/pull-down for digital audio with video Sync applications with computer
Stripe frame-locked LTC onto video tape
Control ADATs with MIDI Machine Control (MMC) from sequencer or DAW software
Varispeed ADATs and Digidesign ProTools systems while slaving them to LTC, MTC, or video
Substitutes for Alesis BRC for synchronization and MMC transport control of ADATs
Converts LTC to word clock or "superclock" just like the Digidesign SMPTE Slave Driver
Converts video to word clock or "superclock" just like the Digidesign Video Slave Driver
Sync Applications Without a Computer
Slave your ADATs to LTC
Slave your ADATs to video via LTC
Generate LTC and MTC while resolved to video
Control ADATs with MMC (e. g. Alesis LRC or JL Cooper CuePoint)
Mark of the Unicorn introduces the MIDI Timepiece AV. Combine MIDI with ADATs, ProTools, or video. The MIDI Timepiece AV takes MOTU's world-renowned MIDI Time Piece II and adds synchronization that you really need, like video genlock, ADAT sync, and word clock sync. Even Digidesign superclock.
Slave ADATs, Digidesign hardware, or word-clock compatible devices to SMTPE and video. Drive your ADATs from your sequencer without an Alesis BRC. Or control everything from an MMC controller like JL Cooper's CuePoint. The MTP AV pulls it all together for stable, centralized, hassle-free synchronization and MIDI networking. For Macintosh and stand-alone setups.
The MIDI Time Piece AV provides 8 discrete MIDI cables (in and out) for your computer. This allows you to use 128 independent MIDI channels. To expand beyond this, you can network up to 4 MTPs for a total of 512 MIDI channels. You can even connect 2 computers to an MTP AV network.
The MTP AV is also an 8x8 merger and router. You can merge any combinations of the 8 inputs simultaneously to any combination of the 8 outputs. Because the MTP AV's internal memory can be programmed from the front panel,the MTP AV is the perfect choice for live performance applications where fast and flexible MIDI patching is essential. You can take the MTP AV on the road because it can operate with or without a computer. The MTP AV can be set to change scenes in response to patch changes, allowing remote control from any MIDI controller.
Features
Stand-alone MIDI patchbay/merger/processor
Synchronization for ADAT, digital audio, and video
ADAT Sync Out, Word Sync Out, and Video Sync In
8x8 MIDI merge matrix
Fully programmable from the front panel
8 independent MIDI IN
8 independent MIDI OUT
128 MIDI channels
Fast/1x mode for high-speed MIDI data transfer
128 scene, battery-backed memory
Recall setups via MIDI patch change
Includes software for Macintosh
Works with Alesis LRC remote control unit
Network 2 units for 16 MIDI IN and OUT and 256 MIDI channels
Fully network-compatible with MTP I and MTP II
Compatible with any software that supports the MTP II
Network units up to 1,000 feet apart
Network up to 4 units for 512 MIDI channels
Expand as your MIDI rig expands!
MIDI Processing
Merge any inputs to any outputs
Route any inputs to any outputs
Mute any MIDI data on any cable
Re-channelize on input and output
Synchronization
SMPTE time code (LTC) generator and reader
Converts LTC to MIDI Time Code (MTC), ADAT Sync, and word clock (1x or Digidesign 256x "Superclock")
Converts MTC to LTC, ADAT Sync, and word clock (or Digidesign "superclock")
Genlocks to video or blackburst and converts to LTC, MTC, ADAT Sync, and word clock (or Digidesign "superclock")
SMPTE "Jam Sync" for dropout-free sync
Adjustable Freewheeling
Supports all SMPTE frame rates (24, 25, 29.97 drop/non-drop, 30 drop/non-drop)
0.1% pull-up/pull-down for digital audio with video Sync applications with computer
Stripe frame-locked LTC onto video tape
Control ADATs with MIDI Machine Control (MMC) from sequencer or DAW software
Varispeed ADATs and Digidesign ProTools systems while slaving them to LTC, MTC, or video
Substitutes for Alesis BRC for synchronization and MMC transport control of ADATs
Converts LTC to word clock or "superclock" just like the Digidesign SMPTE Slave Driver
Converts video to word clock or "superclock" just like the Digidesign Video Slave Driver
Sync Applications Without a Computer
Slave your ADATs to LTC
Slave your ADATs to video via LTC
Generate LTC and MTC while resolved to video
Control ADATs with MMC (e. g. Alesis LRC or JL Cooper CuePoint)
TECHNICAL DESCRIPTION
Custom-designed VLSI technology
Proprietary high-frequency phase engine
Internal Power Supply (switchable 115V - 220V)
16x2 backlit LCD display
4 programmable front-panel knobs
Status lights for MIDI IN/OUT, SMPTE, and Networking
2 pedal inputs for continuous pedals or switch pedals
Front panel MIDI IN and OUT ports
Panic button
1 IEC power connector (115-220V)
2 SMPTE 1/4 in. phone (+4/-10, hi-z)
2 pedal 1/4 in. phone inputs (Configurable for switch, continuous, or Alesis LRC)
1 Word Clock Out BNC TTL (1x or 256x)
1 Video In BNC 75-ohm terminated
1 PC parallel 25-pin "D"
1 Mac mini-DIN 8 serial
1 Mac/Network mini-DIN 8 serial
1 ADAT Sync Out 9-pin "D"
16 MIDI connectors
Proprietary high-frequency phase engine
Internal Power Supply (switchable 115V - 220V)
16x2 backlit LCD display
4 programmable front-panel knobs
Status lights for MIDI IN/OUT, SMPTE, and Networking
2 pedal inputs for continuous pedals or switch pedals
Front panel MIDI IN and OUT ports
Panic button
1 IEC power connector (115-220V)
2 SMPTE 1/4 in. phone (+4/-10, hi-z)
2 pedal 1/4 in. phone inputs (Configurable for switch, continuous, or Alesis LRC)
1 Word Clock Out BNC TTL (1x or 256x)
1 Video In BNC 75-ohm terminated
1 PC parallel 25-pin "D"
1 Mac mini-DIN 8 serial
1 Mac/Network mini-DIN 8 serial
1 ADAT Sync Out 9-pin "D"
16 MIDI connectors
